Exhaust Gas Recirculation: Service and Repair

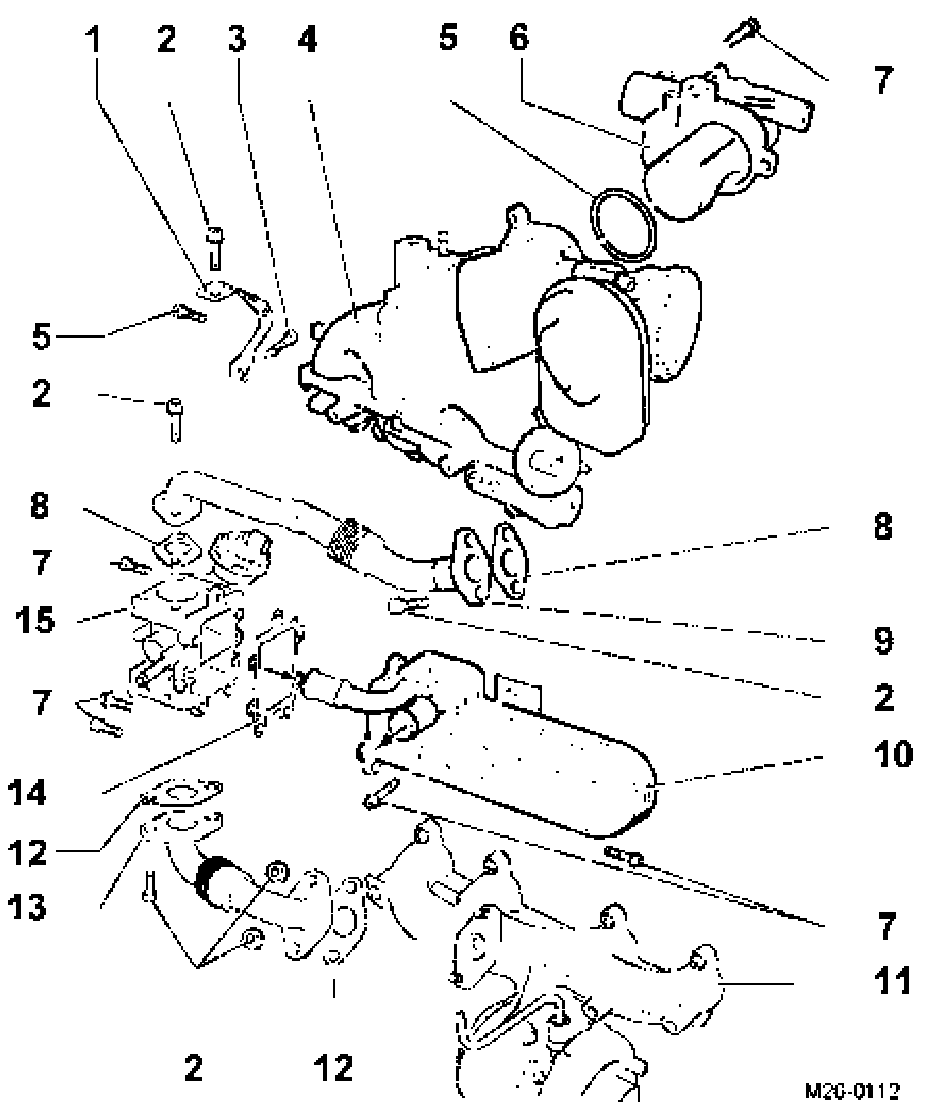

Exhaust gas recirculation system components, assembly overview

1. Bracket
^ For bypass flap
2. 22 Nm
3. 5 Nm
4. Intake manifold
5. O-ring
6. EGR vacuum regulator valve N121-
7. 10 Nm
8. Seal
9. Connecting pipe
10. Cooler
11. Exhaust manifold
12. Seal
13. Connecting pipe
14. Seal
15. Bypass flap
