Alternator

Generator (GEN) - 4-cylinder TDI - PD Engines

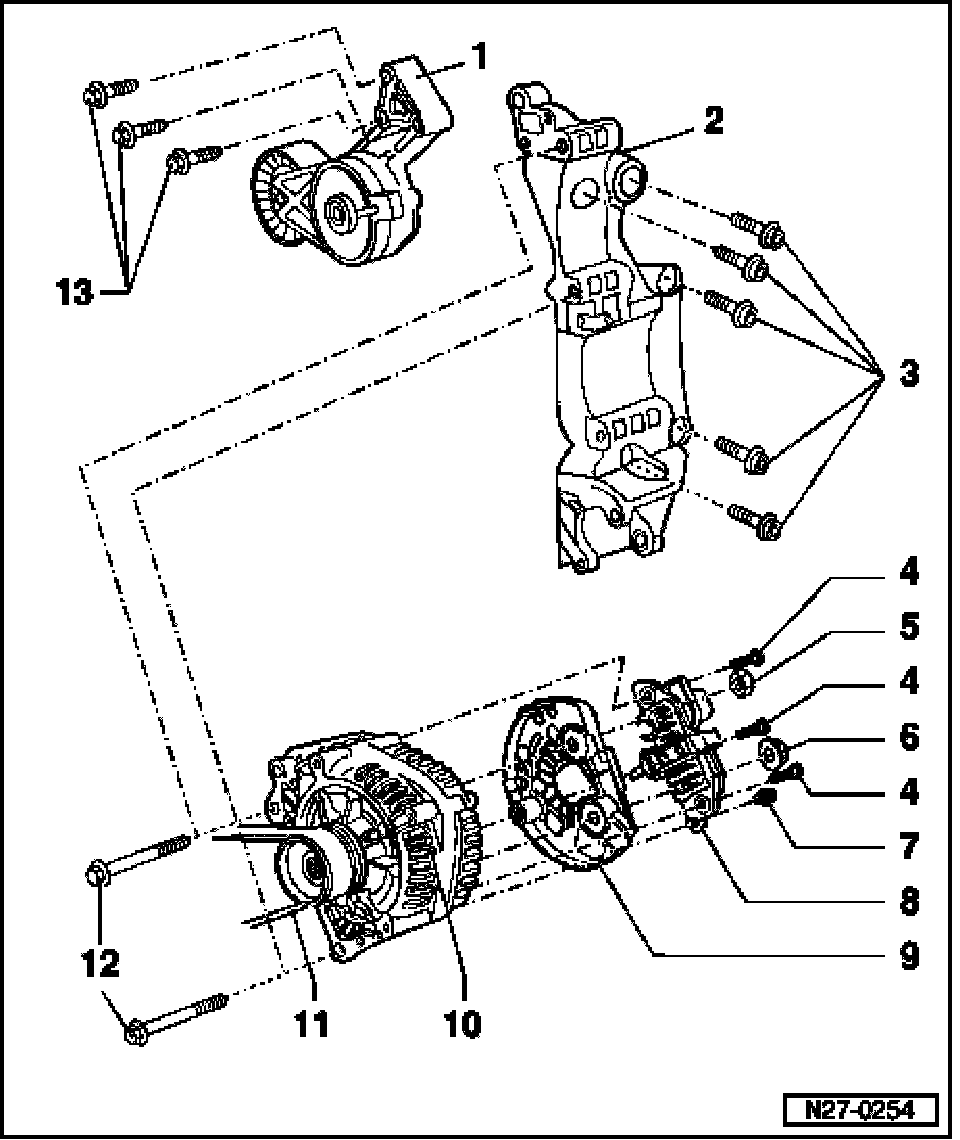

4-cylinder TDI - PD engine, assembly







1 Tensioner
2 Bracket
3 Hex socket bolt
- M10 x 45 mm
- 45 Nm
4 Screws
5 Hex nut
- M8
6 Hex bolts
- M10 x 65mm
- 45 Nm
7 Screws
8 Voltage Regulator (VR)
- Checking carbon brushes
9 Protective cap
10 Generator (GEN)
- Tightening torque of B+ wire to generator
11 Ribbed belt
- Ribbed belt routing
12 Hex bolts
- M8 x 85 mm
- 25 Nm
13 Hex bolts
- M8 x 45 mm
- 25 Nm
