Fuel Supply System Components, Removing And Installing: Notes
NOTE:
- Hose connections are secured with screw -type clamps, spring -type clamps or tensioning clamps.
- Always replace tensioning clamps with spring - type clamps or screw -type clamps.
- Fuel hoses at engine must only be secured with spring-type clamps. The use of clamping collars or screw clamps is not permitted.

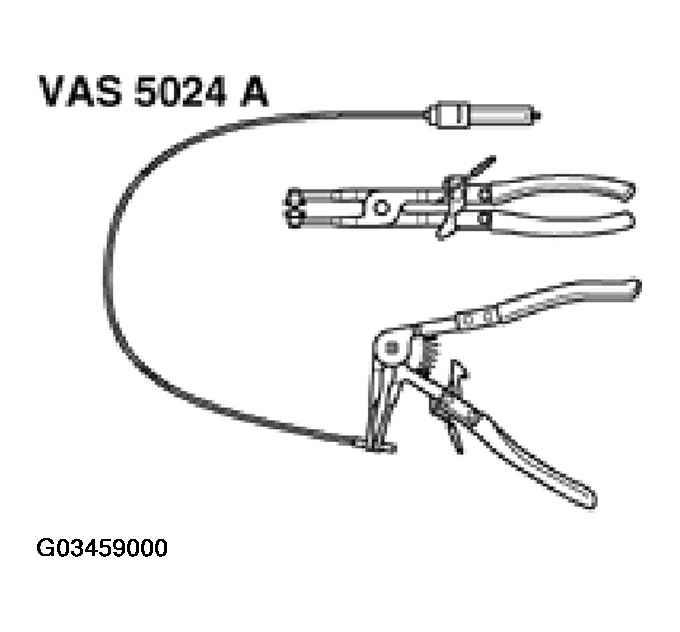

- VAS5024A spring clip installation tool is recommended for installing spring -type clips.
Observe safety precautions, see SAFETY PRECAUTIONS WHEN WORKING ON FUEL SUPPLY .
Observe rules for cleanliness, see RULES OF CLEANLINESS .
Removing and installing fuel tank with attachments and fuel filter, see FUEL TANK WITH ATTACHMENTS AND FUEL FILTER, REMOVING AND INSTALLING
Electronic engine power control (E -Gas), checking, see ELECTRONIC ENGINE POWER CONTROL (E-GAS) .
Removing and installing parts of the EVAP canister system, see PARTS OF EVAP CANISTER SYSTEM, REMOVING AND INSTALLING .
