Air Flow Meter/Sensor: Service and Repair

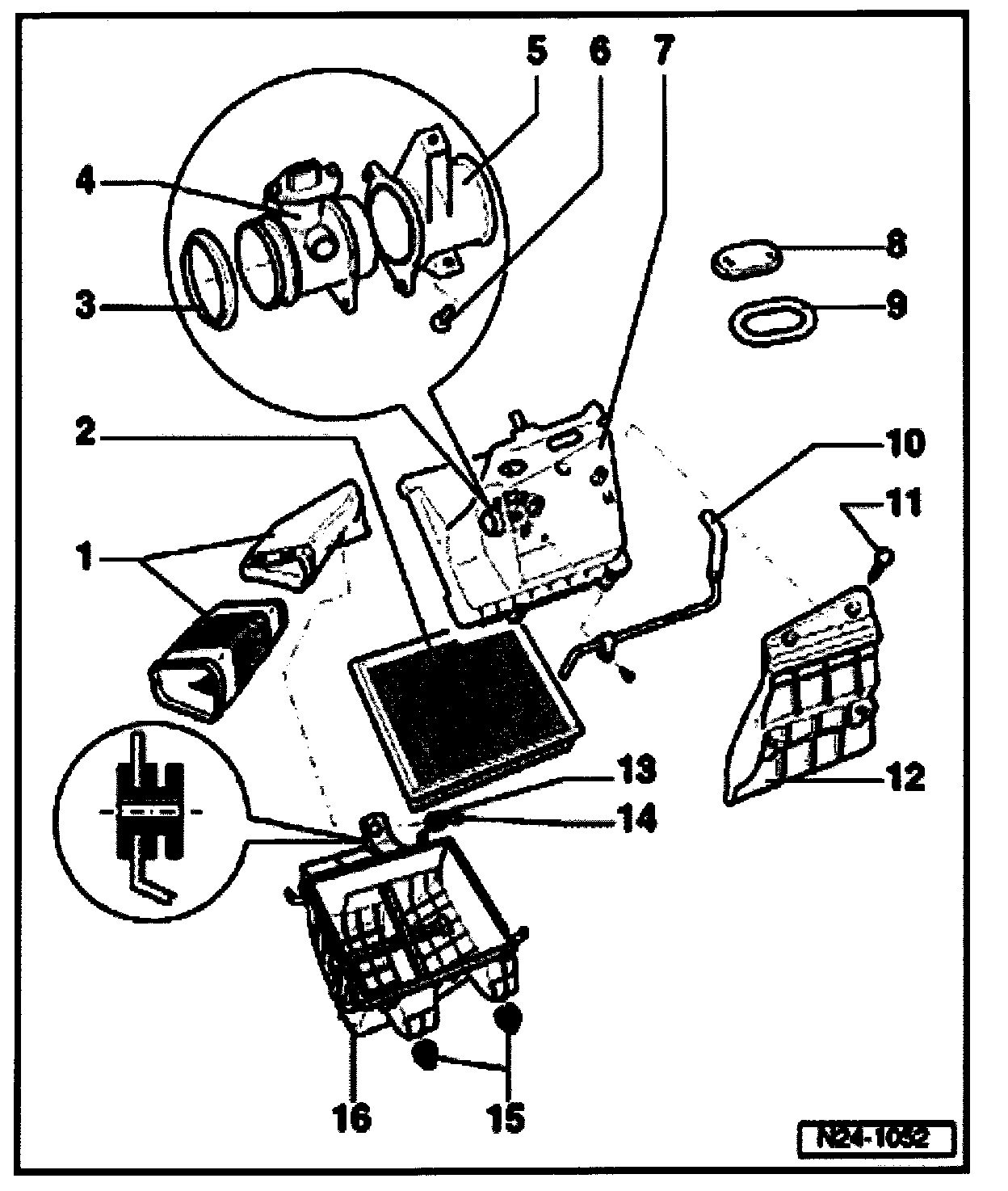

Air filter, disassembling and assembling







1 - Air ducts
- to metering unit
2 - Filter element
3 - Seal
4 - Mass Air Flow (MAF) sensor -G70-*
5 - Air duct
6 - 6 Nm
7 - Air filter, upper portion
8 - Cooling body
- Not for engine code AWM
9 - Rubber ring
- Not for engine code AWM
10 - Wire
- For EVAP canister system
11 - 10 Nm
12 - Heat shield
13 - Rubber grommet
14 - Spacer sleeve
15 - Base plate
16 - Air filter, lower portion
