Parking Assist Control Module
Parking aid from February 2001
IMPORTANT NOTE
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

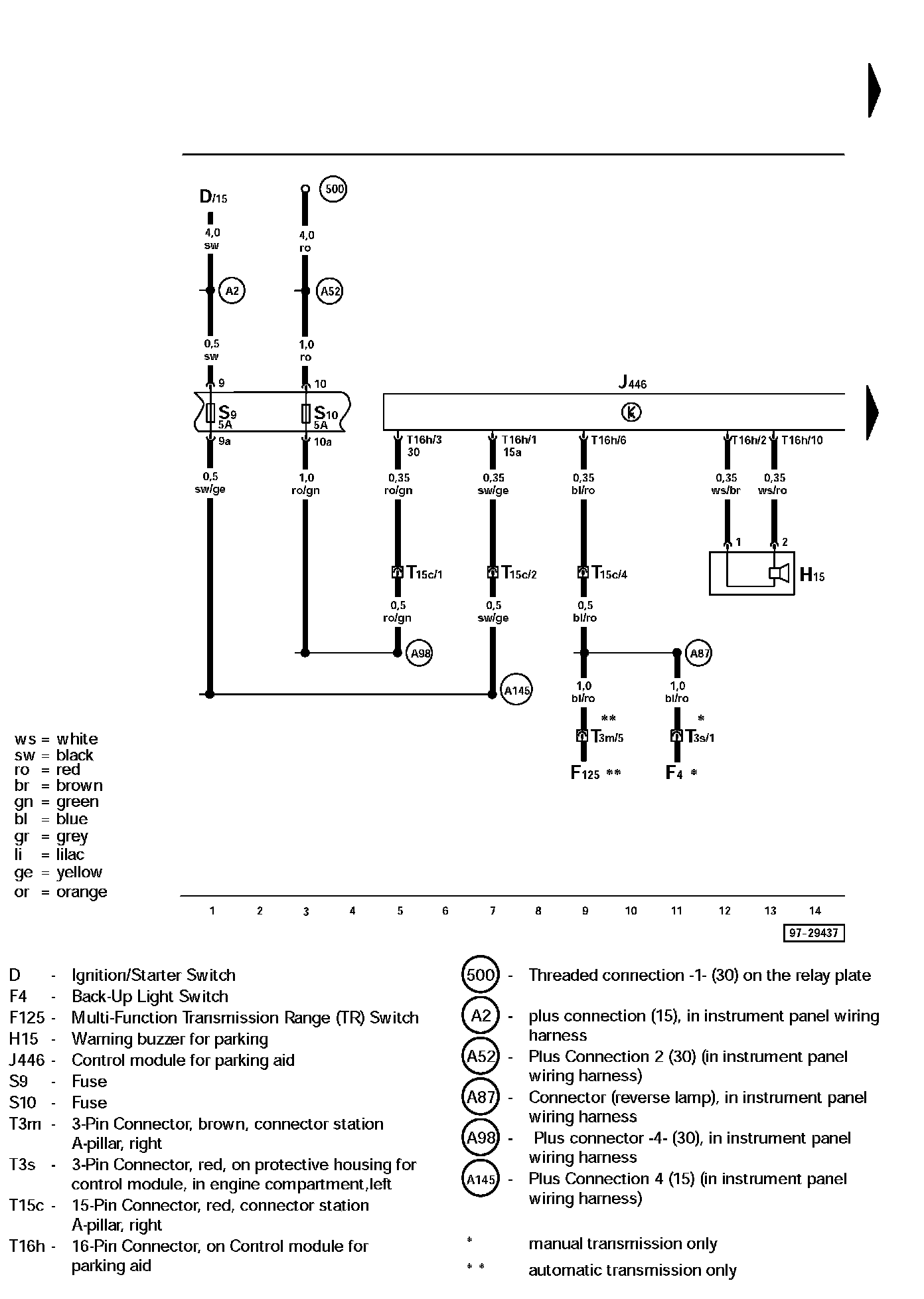

Track 1-14:

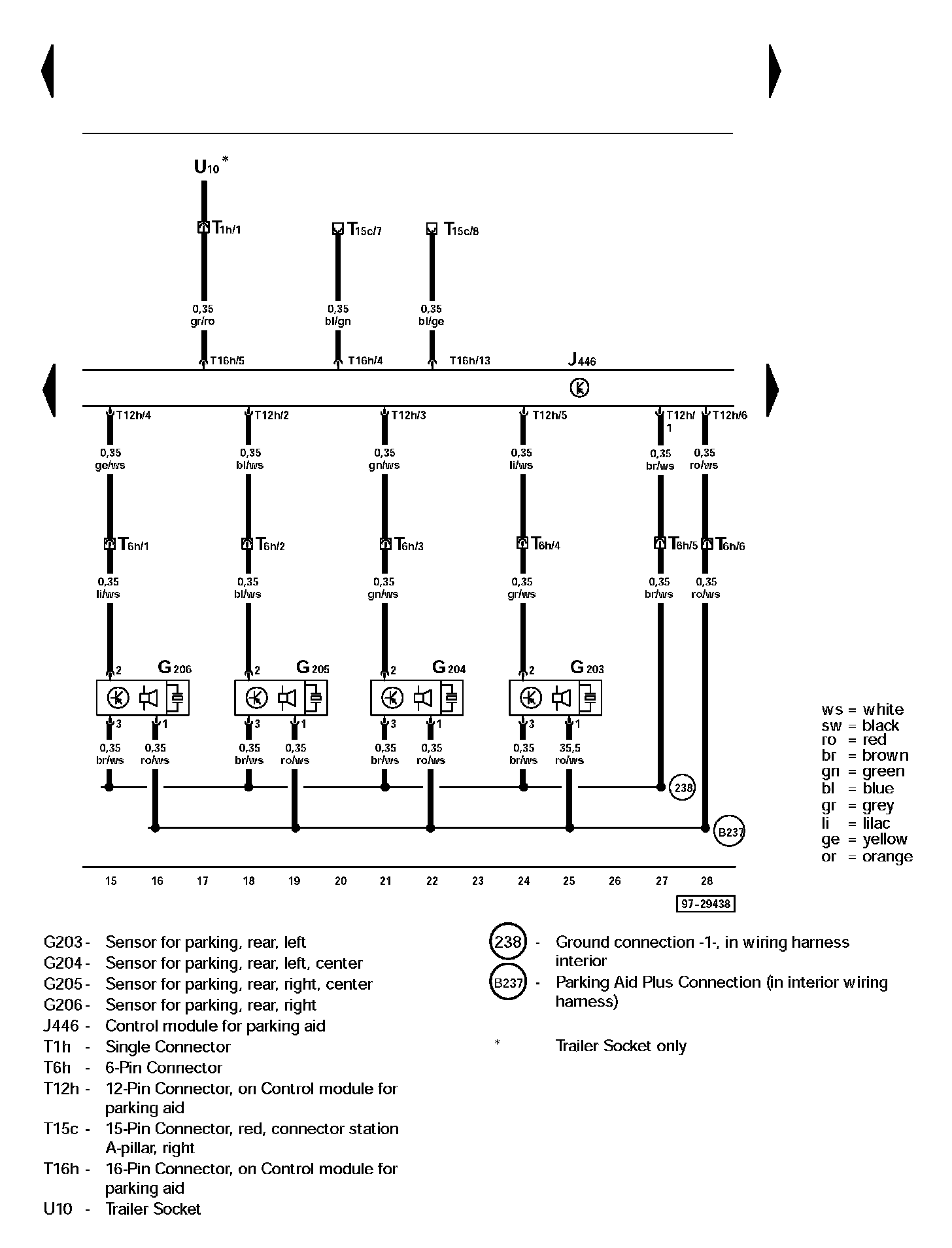

Track 15-28:

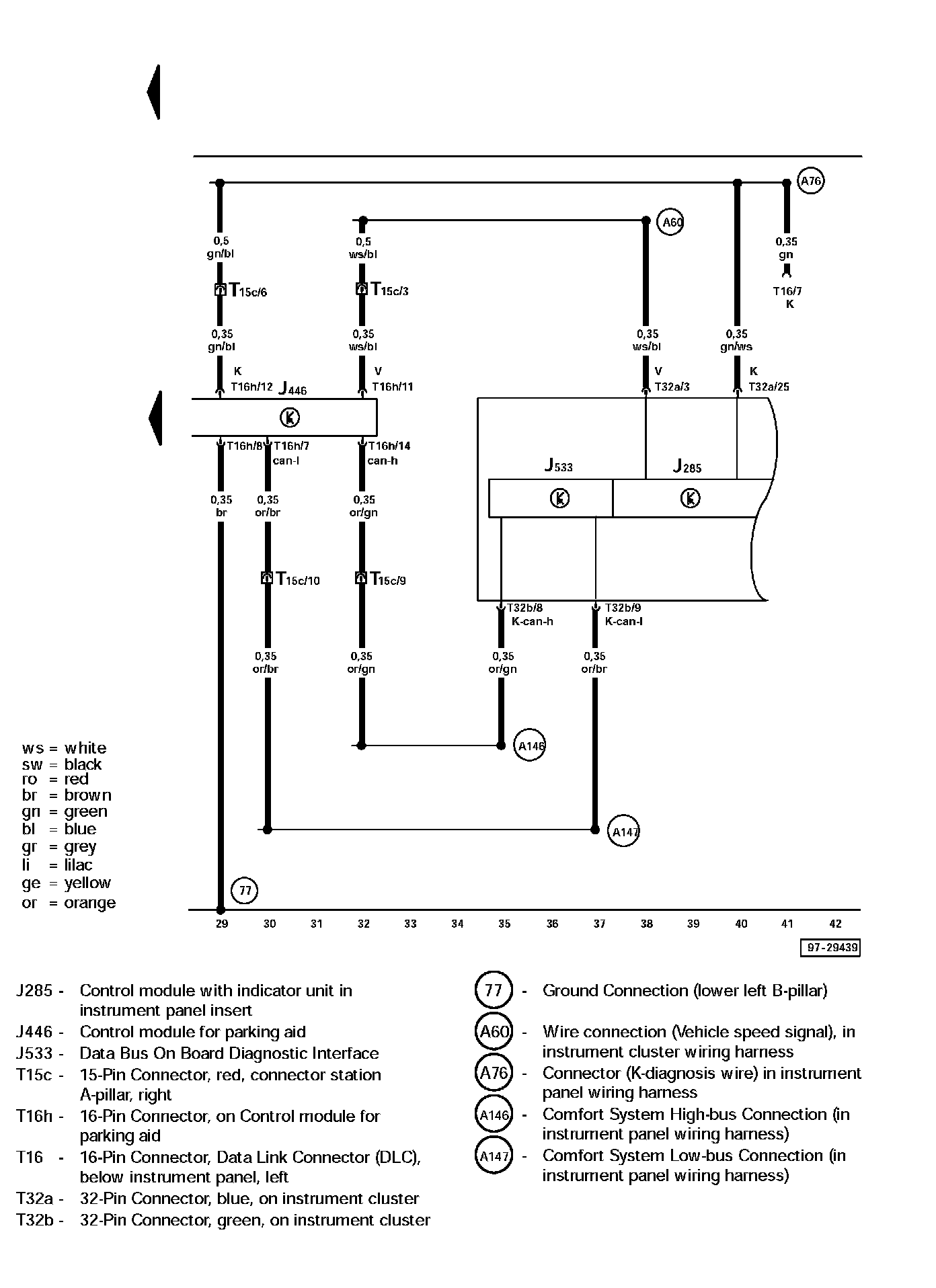

Track 29-42:
