Special Tools

Special tools and workshop equipment required

• Pin T10027
  Fig 1: Connecting Pin T10027

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly pliers VAS 5024
  Fig 2: Identifying Assembly Tool VAS 5024

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Support rail T10036
  Fig 3: Identifying T10036 Support Rail

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 4: Identifying Special Tools -- Transmission, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Support 10-222 A
• Support 10-222 A/8
• Special hook 10-222 A/2
• Adapter 10-222 A/3
• Hose clamps 3094
• Transmission support 3282

Fig 5: Identifying Special Tools -- Transmission, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

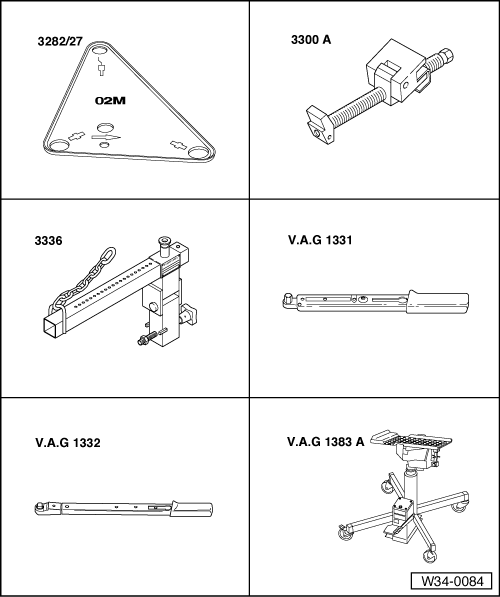

Special tools and workshop equipment required

• Adjustment plate 3282/27
• Pins (Qty. 2) 3282/48
• Support 3282/52
• Engine support 3300 A
• Transmission lifting beam 3336
• Torque wrench VAG 1331
• Torque wrench VAG 1332
• Engine/transmission jack VAG 1383 A
