Radiator and coolant fan, removing and installing: Notes

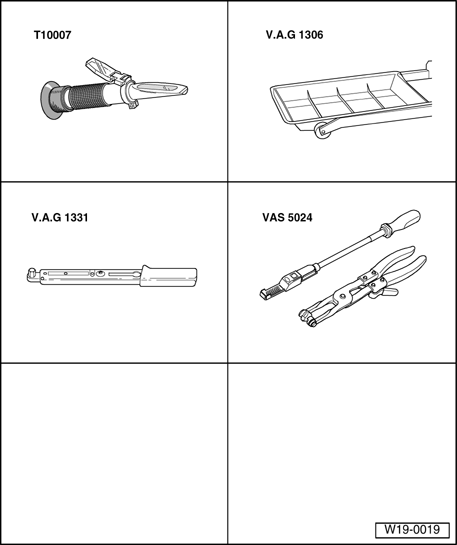

Fig 1: Special Tools - Radiator, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Refractometer T10007
• Drip pan VAG 1306
• Torque wrench (5-50 Nm) VAG 1331
• Assembly tool for spring-type clips VAS 5024
