Sunroof And Central Control Module -J393- Diagnosis (GROUP 60, NO. 07-06)

Publication date: 2007-06-19
Reference number: GROUP 60, NO. 07-06
Supersedes refnos: 2010421, GROUP 60, NO. 07-05

SUNROOF AND CENTRAL CONTROL MODULE -J393- DIAGNOSIS

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 60, NO. 07-06 (2010421), Date of Issue: June 19, 2007

VOLKSWAGEN:	Jetta (A4) 1999 - 2005; Jetta (A5) 2005 - 2008; Jetta Wagon (A4) 2001 - 2005; Golf, GTI 1999 - 2005; Rabbit (A5) 2006 - 2008; Passat, Passat Wagon 1998 - 2005; New Beetle 2001 - 2008; City Golf (Canada only) 2007, 2008; City Jetta (Canada only) 2007, 2008
GROUP:	60 - Sun roof

Superceded Bulletin(s): GROUP 60, NO. 07-05, Date of Issue: May 31, 2007

SERVICE INFORMATION

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Jetta (A4)	1999 - 2005	All	All	All	All
Jetta (A5)	2005 - 2008	All	All	All	All
Jetta Wagon (A4)	2001 - 2005	All	All	All	All
Golf, GTI	1999 - 2005	All	All	All	All
Rabbit (A5)	2006 - 2008	All	All	All	All
Passat, Passat Wagon	1998 - 2005	All	All	All	All
New Beetle	2001 - 2008	All	All	All	All
City Golf (Canada only)	2007, 2008	All	All	All	All
City Jetta (Canada only)	2007, 2008	All	All	All	All

CONDITION

60 07 06 June 19, 2007 2010421, Supersedes Technical Bulletin Group 60 number 07-05 dated May 31, 2007 due to removal of Jetta Wagon (A5) Models and reformatting of flowcharts.

Sunroof And Central Control Module -J393- Diagnosis

TECHNICAL BACKGROUND

Sunroof may malfunction or fail to operate due to low battery voltage, battery being discharged, battery being disconnected, power to sunroof being interrupted while in operation, or a faulty central control module.

PRODUCTION SOLUTION

No production change required.

SERVICE

SYMPTOMS

Sunroof inoperative.

Sunroof will not close (stuck open or stuck open in the tilt position).

Sunroof operates erratically (opens when sunroof switch is turned to the tilt position or tilts when sunroof switch is turned to the open position).

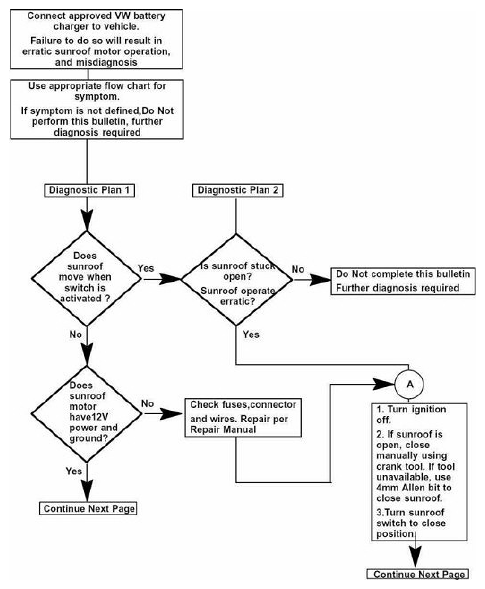

Fig 1: Diagnostic Flow Chart (Page 1)

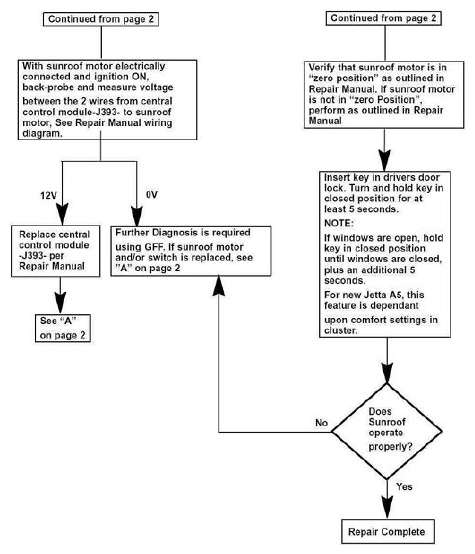

Fig 2: Diagnostic Flow Chart (Page 2)

WARRANTY

When procedure applies to vehicles within any warranty, use applicable claim coding per Warranty Policy and Procedures Manual and ElsaWeb.

REQUIRED PARTS AND TOOLS

No Special Parts required.

No Special Tools required.

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal.

Always check with your Parts Dept. and Repair Manuals for the latest information.
