Windows




Front Power Windows, from September 1998

IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

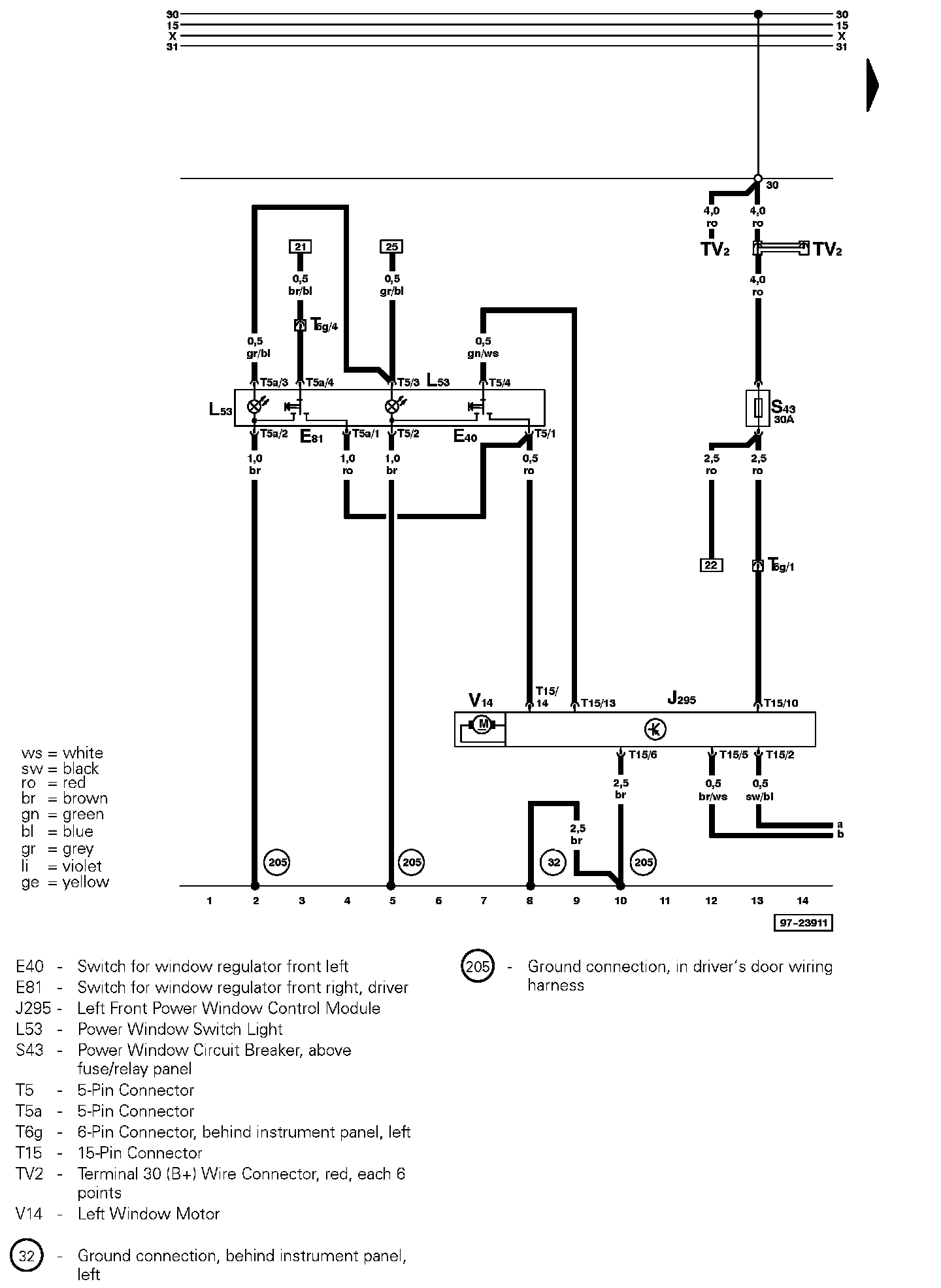

Track 1-14:

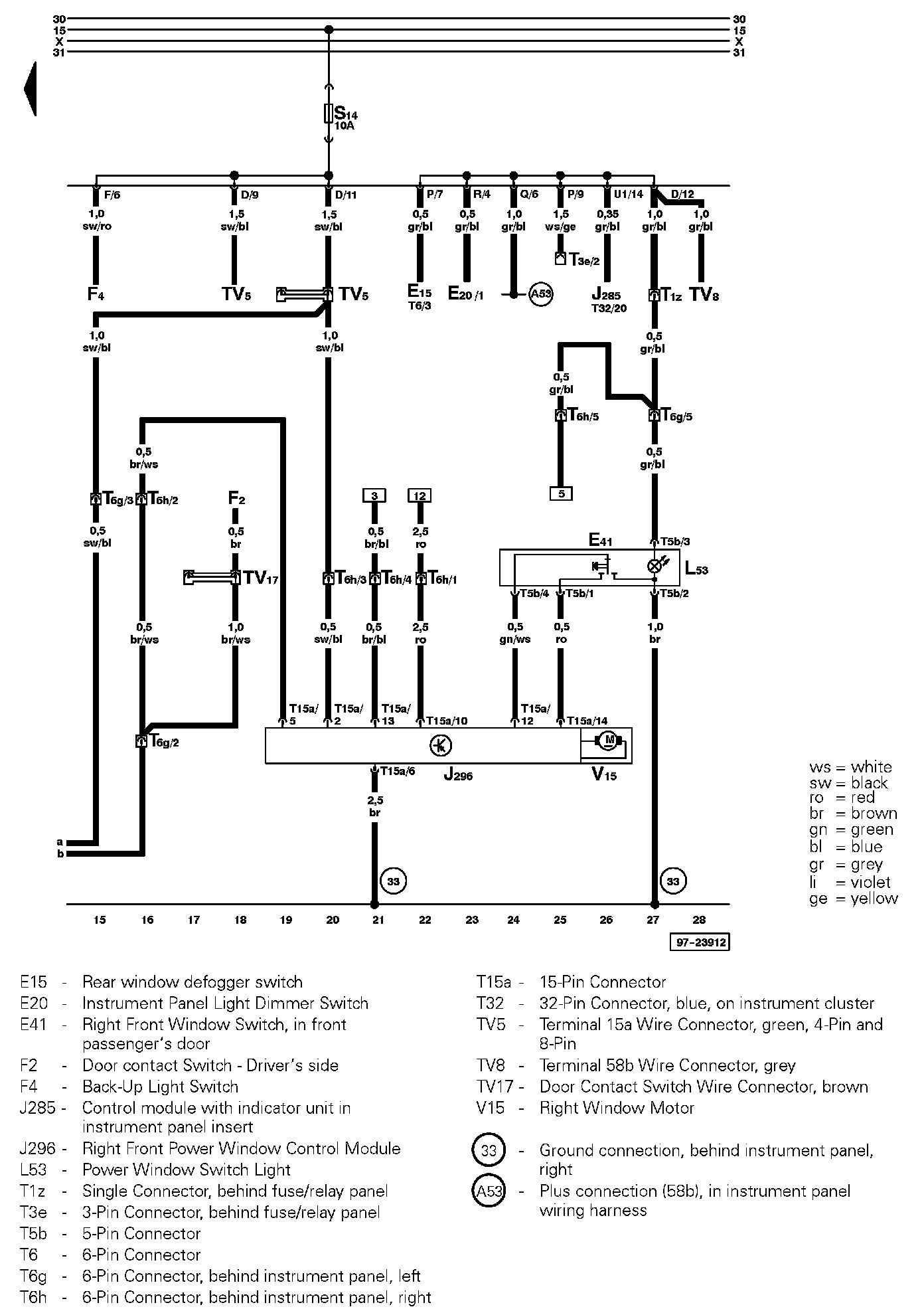

Track 15-28:
