Passenger Side Heated Seat

Before starting test, check the following items.

• Battery terminals are securely tightened.
• Fuse 11 (15A) located below relay panel is okay.
• Turn off ignition switch. Turn off all electrical accessories.

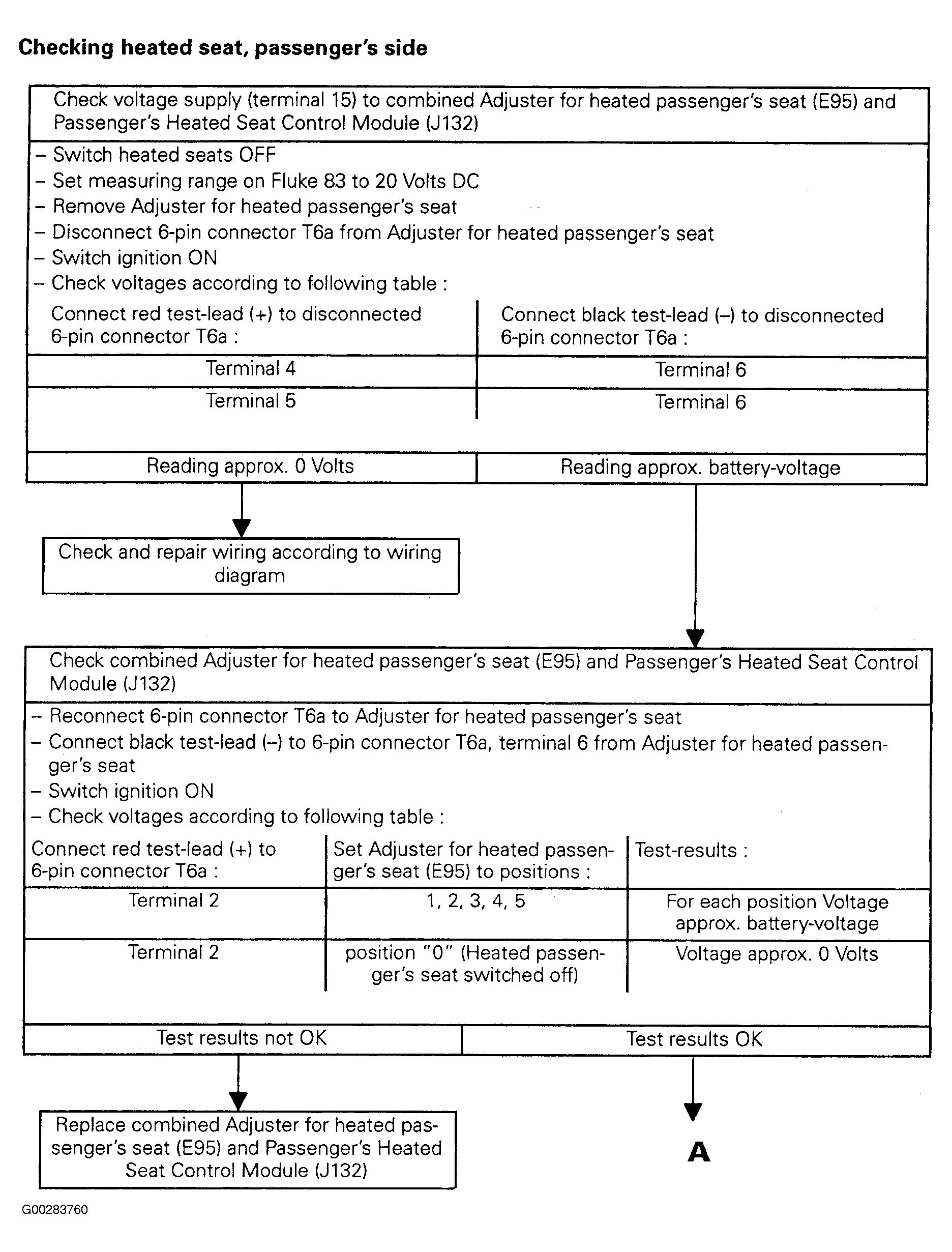

Fig 1: Testing Passenger Side Heated Seat (1 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

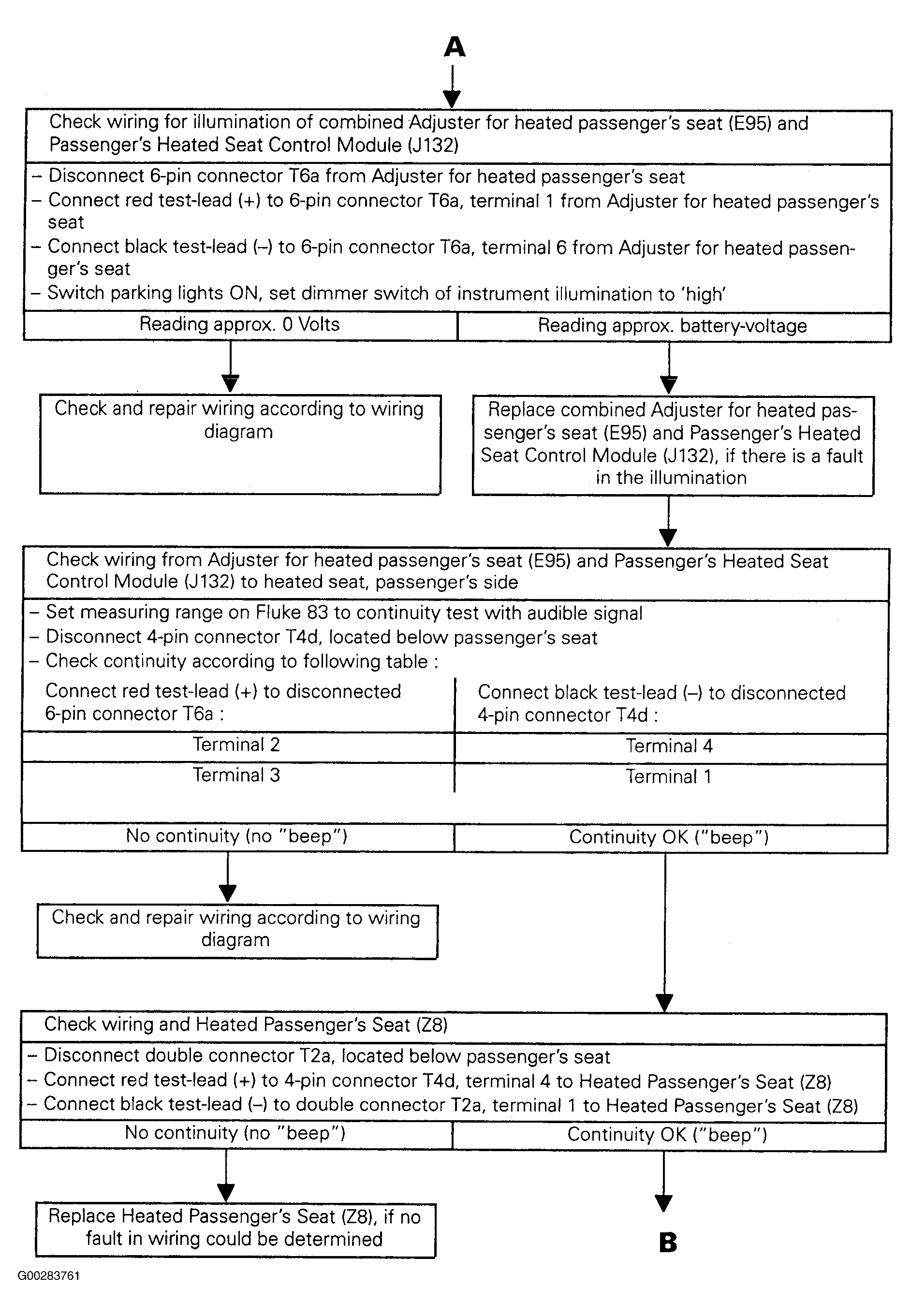

Fig 2: Testing Passenger Side Heated Seat (2 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

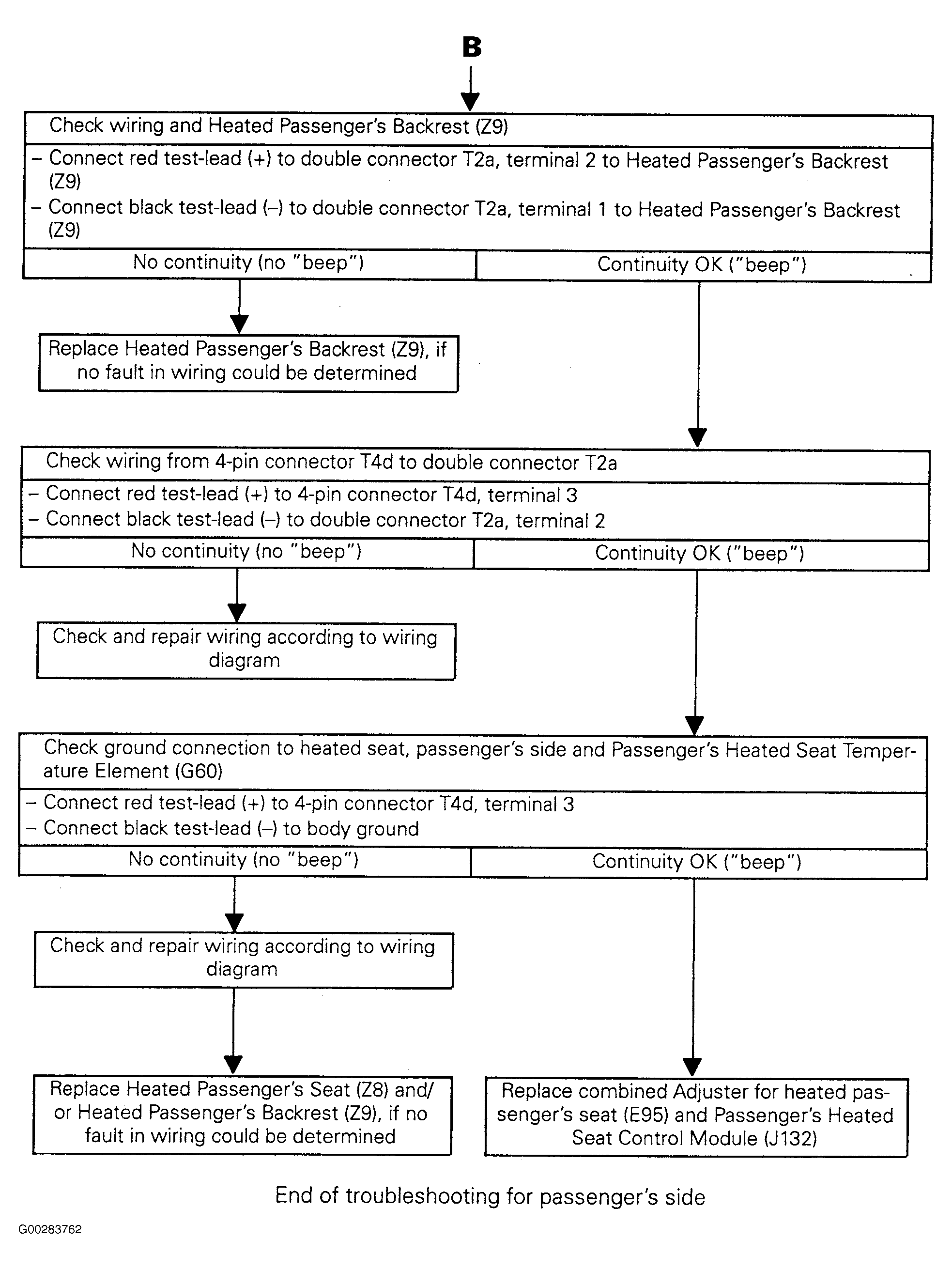

Fig 3: Testing Passenger Side Heated Seat (3 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
