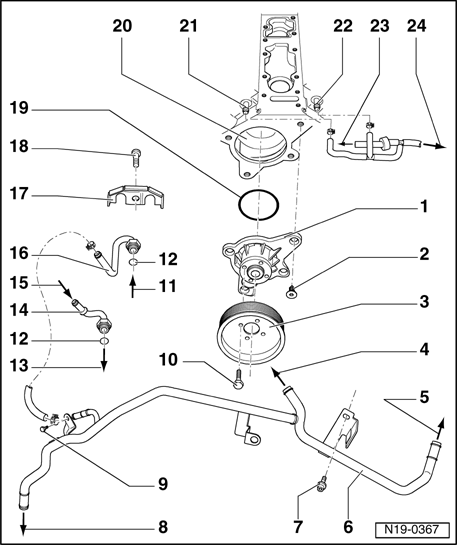

Cooling system components engine front, disassembling and assembling

1 - Coolant Pump

• Check for ease of movement
• If damaged or leaking replace completely
• Removing and installing → Coolant Pump, removing and installing

2 - 20 Nm

3 - Pulley

• For Coolant Pump
• Removing and installing ribbed belt → Ribbed belt, removing and installing

4 - To coolant line

5 - To reservoir

6 - Front coolant line

7 - 10 Nm

8 - To oil cooler

9 - 10 Nm

10 - 15 Nm

11 - From generator

12 - O-ring

• Always replace

13 - To generator

14 - Coolant line

• On Generator

15 - From right coolant line

16 - Coolant line

• On Generator

17 - Securing plate

• For coolant line on Generator

18 - 10 Nm

19 - O-ring

• Always replace

20 - Cylinder block

• With flange for Coolant Pump

21 - Coolant connecting piece

• On right of cylinder head

22 - Coolant connecting piece

• On left of cylinder head

23 - To upper coolant hose

24 - To coolant hose
