Malfunction Indicator Lamp: Service and Repair

Electronic Power Control (EPC) System

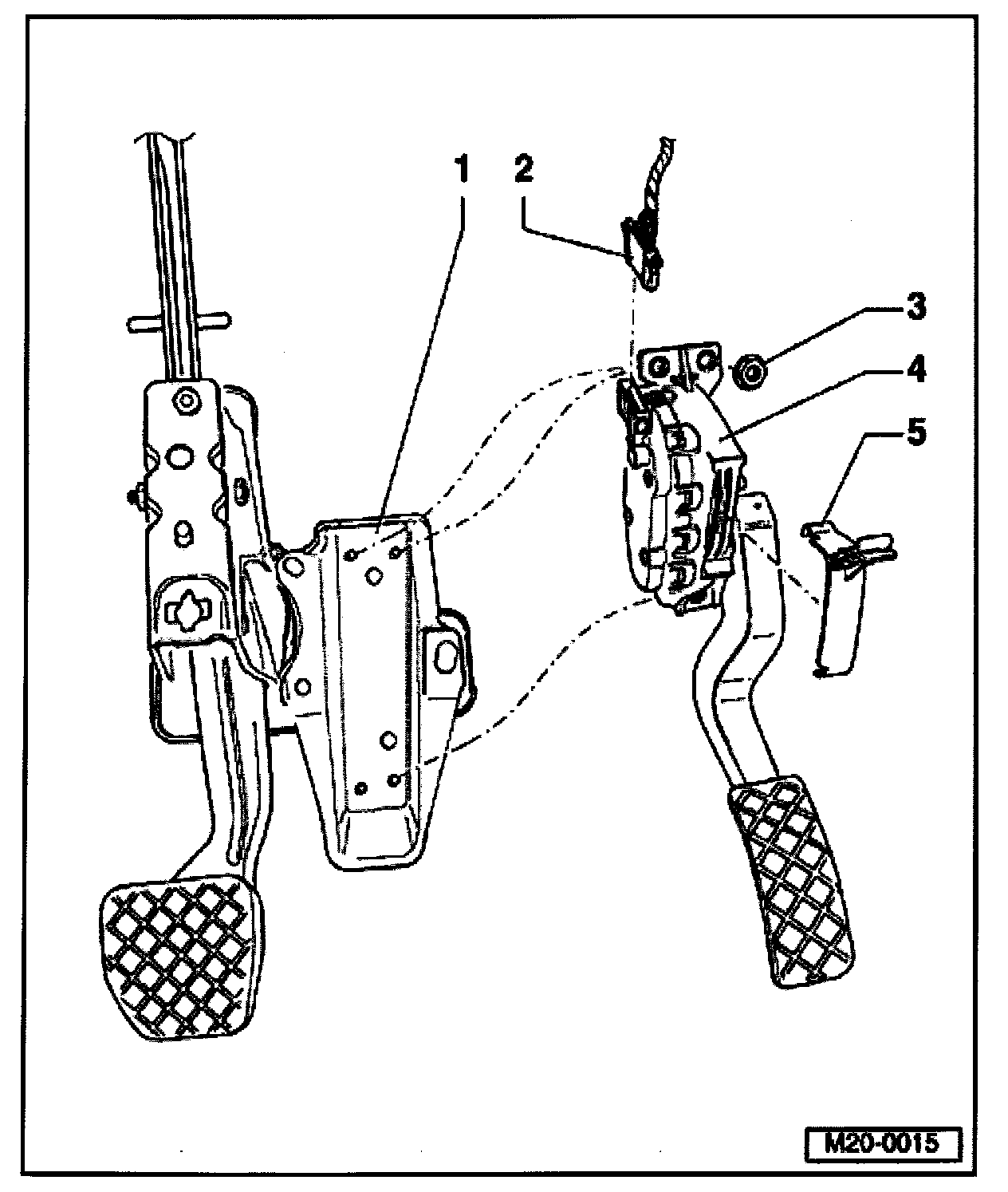

1 - Bracket
2 - Connector
- Black, 6 pin
3 - 10 Nm
4 - Throttle Position (TP) Sensor -G79-
- Not adjustable
- Accelerator pedal position sensor -G79- communicates the driver's intentions to the control module
- To remove sensor, remove cover in footwell
- If replaced adapt control module for automatic transmission
5 - Bracket
- For cover in footwell
- Clipped on at accelerator pedal position sensor
