Transmission, disassembling

Place drain pan under transmission

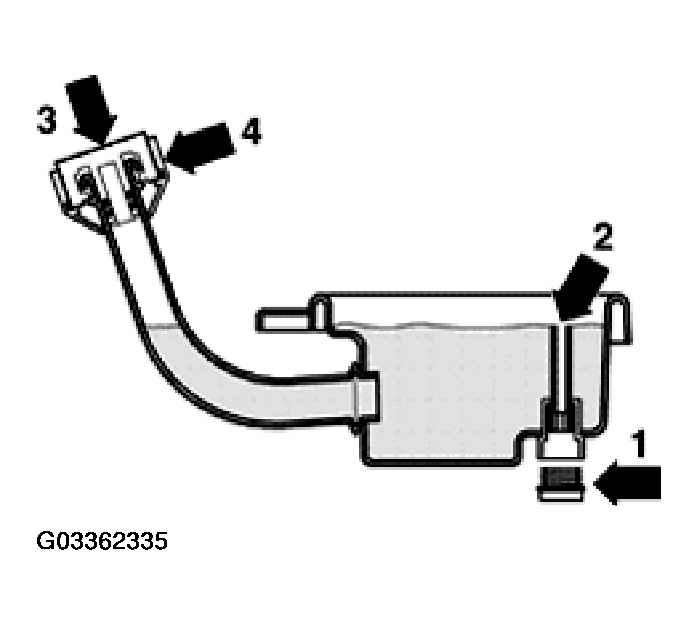

Remove sealing plug -1- and ATF overflow line -2-.

Fig 1: Removing Sealing Plug And ATF Overflow Line
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Drain ATF
3 - Sealing plug

4 - Cap
Seal ATF cooler connections.
Remove torque converter

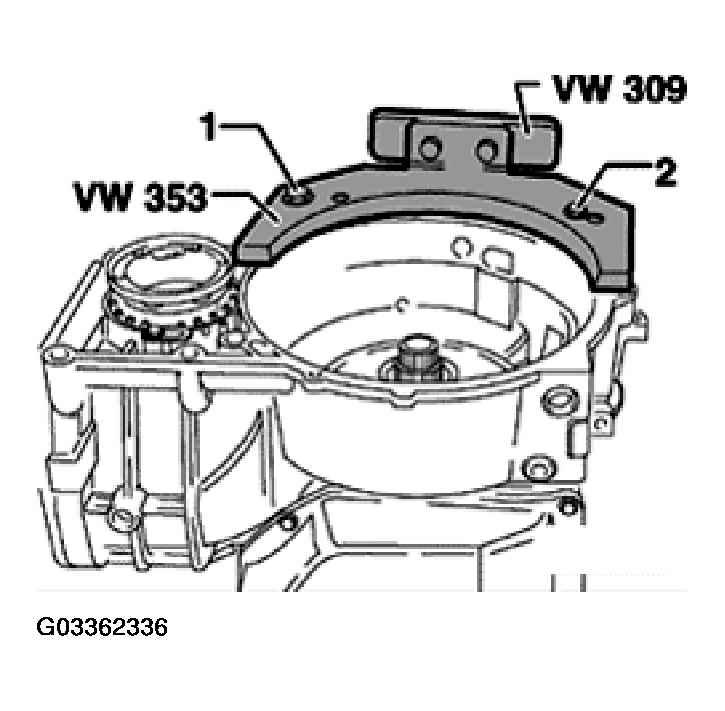

Secure transmission to assembly support with bolts -1- and -2- (M10).

Fig 2: Securing Transmission To Assembly Support With Bolts

Courtesy of VOLKSWAGEN OF AMERICA, INC.

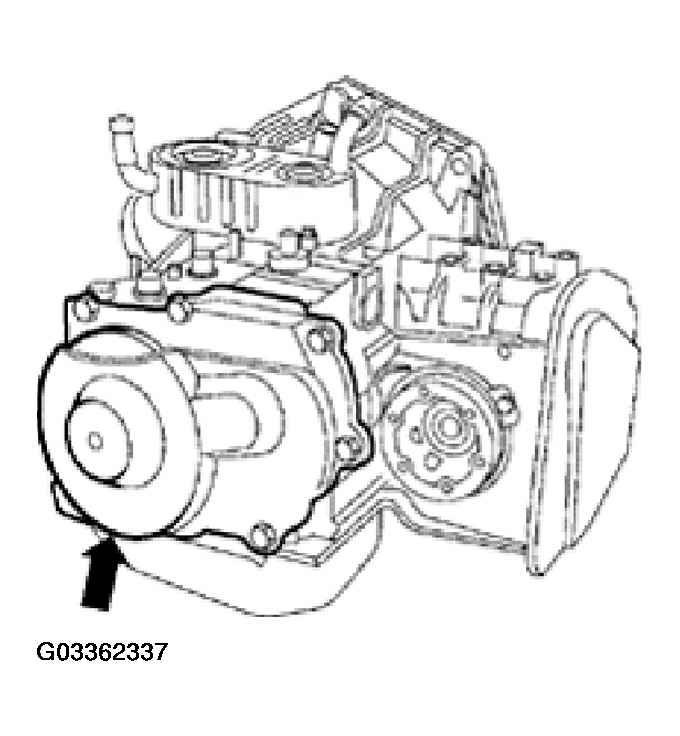

Remove transmission housing cover with gasket -arrow-

Fig 3: Removing Transmission Housing Cover With Gasket
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove oil pan.
Remove ATF screen.

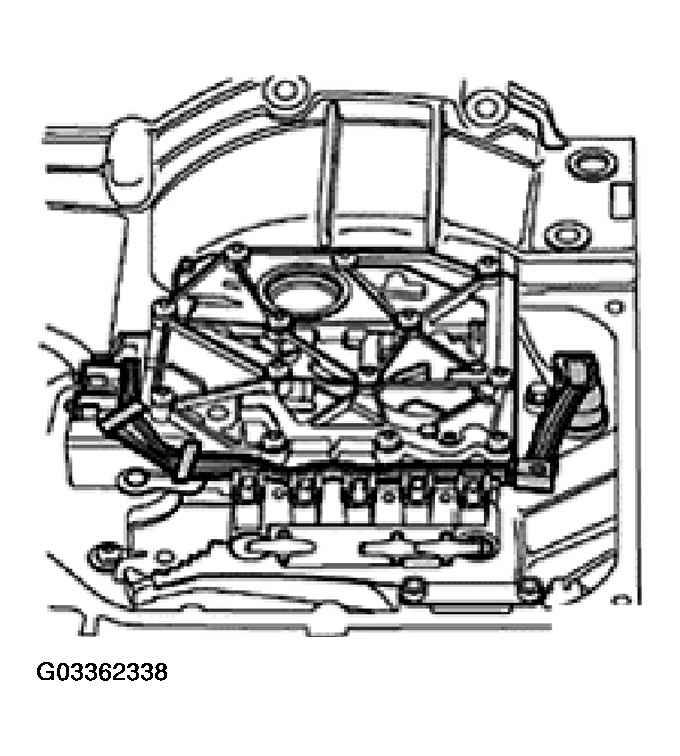

Remove valve body with conductor strip, see VALVE BODY, REMOVING AND INSTALLING

Fig 4: Removing Valve Body With Conductor Strip

Courtesy of VOLKSWAGEN OF AMERICA, INC.

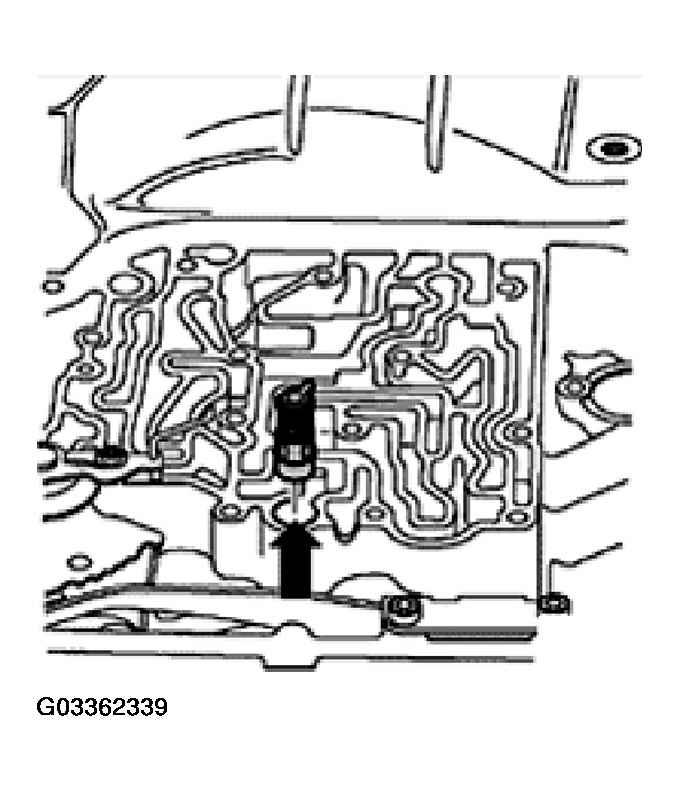

Fig 5: Removing Sealing Plugs

Courtesy of VOLKSWAGEN OF AMERICA, INC.

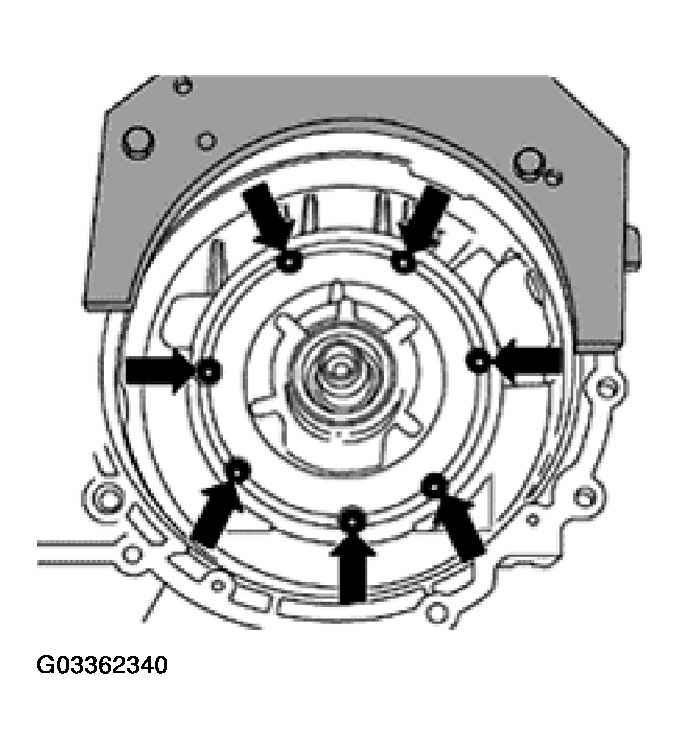

Fig 6: Removing ATF Pump Bolts

Courtesy of VOLKSWAGEN OF AMERICA, INC.

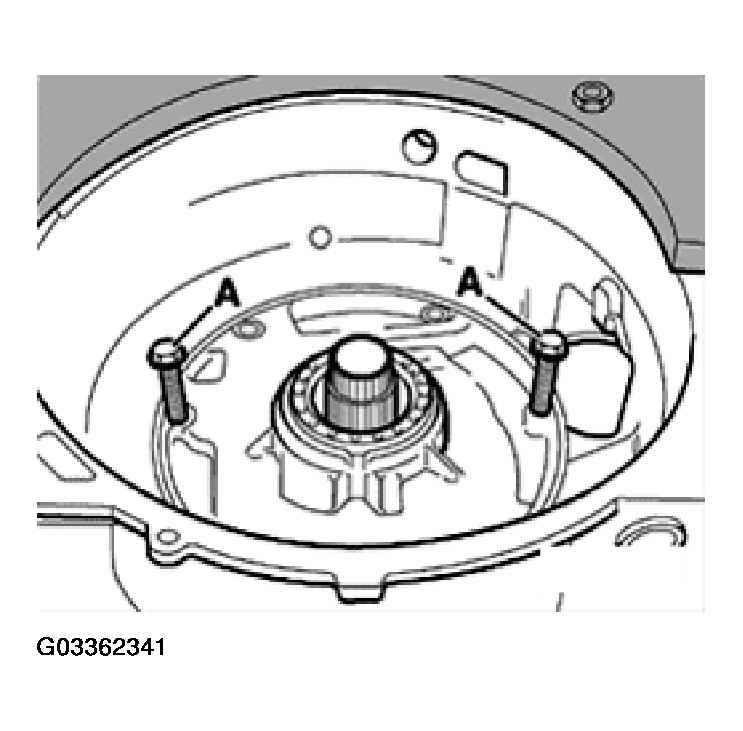

Fig 7: Installing Bolts In Threaded Holes Of ATF Pump

Courtesy of VOLKSWAGEN OF AMERICA, INC.

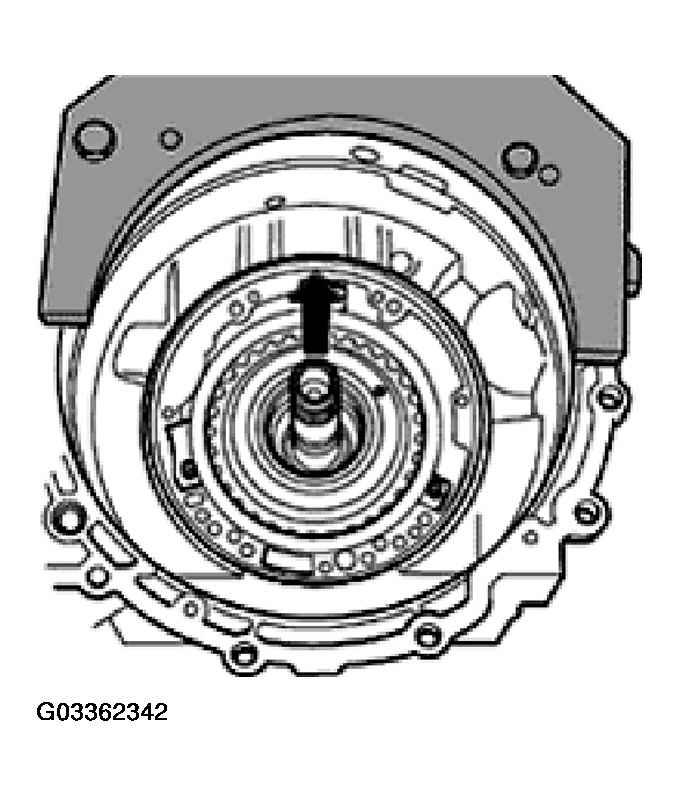

Remove all clutches with support sleeve, -B2- plates, springs and spring caps together.

Fig 8: Removing Clutches With Support Sleeve, -B2- Plates, Springs And Spring Caps

Courtesy of VOLKSWAGEN OF AMERICA, INC.

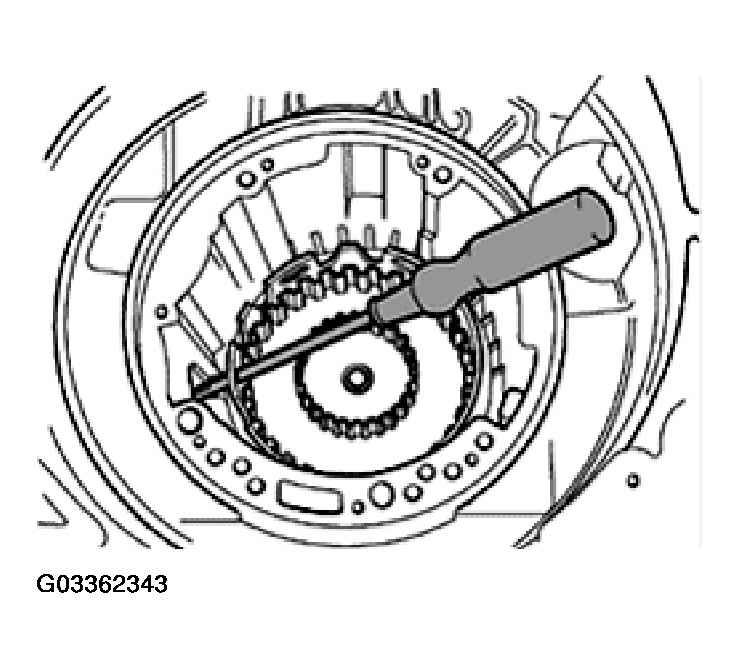

Insert screwdriver through hole of large sun gear to loosen and tighten bolt for small input shaft.

Fig 9: Inserting Screwdriver Through Hole Of Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

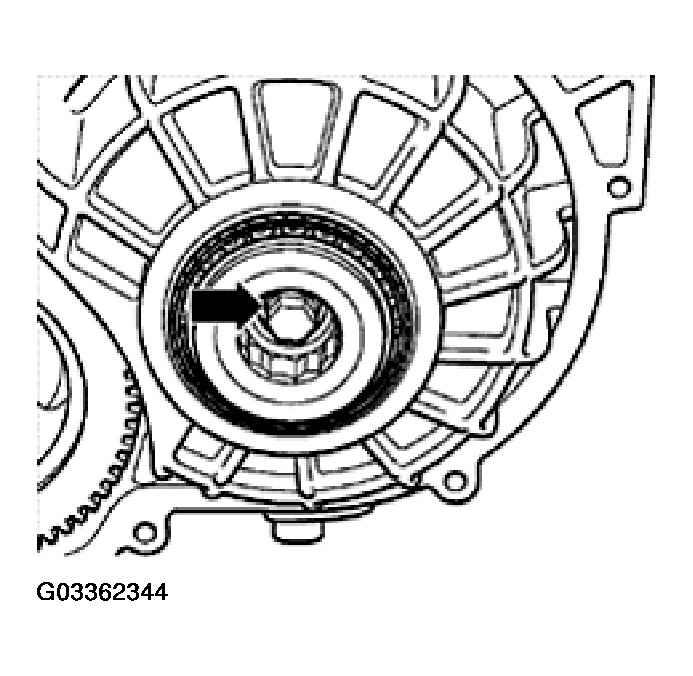

Loosen small input shaft bolt -arrow-.
Remove small input shaft bolt, washer and shim.
Planet carrier axial needle bearing remains in transmission/input gear.
Remove small input shaft.

Fig 10: Loosening Small Input Shaft Bolt

Courtesy of VOLKSWAGEN OF AMERICA, INC.

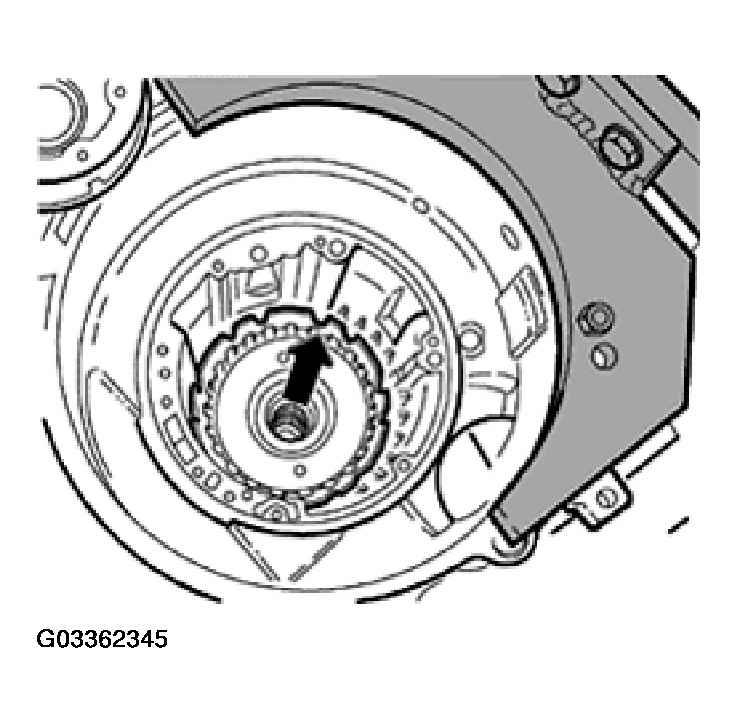

Fig 11: Pulling Out Large Input Shaft

Courtesy of VOLKSWAGEN OF AMERICA, INC.

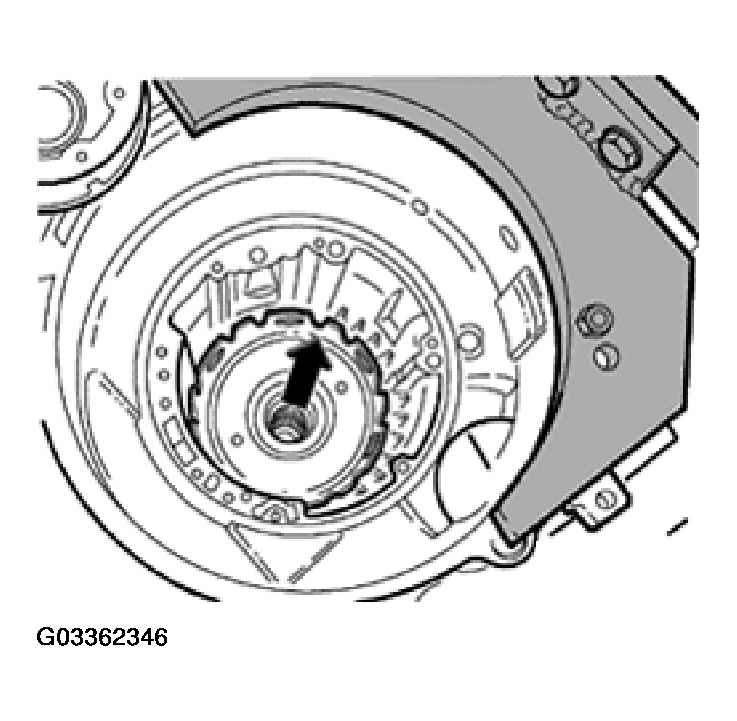

Fig 12: Pulling Out Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove Transmission Vehicle Speed Sensor (VSS) -G38-
See VEHICLE SPEED SENSOR (VSS) -G68-, REMOVING AND INSTALLING

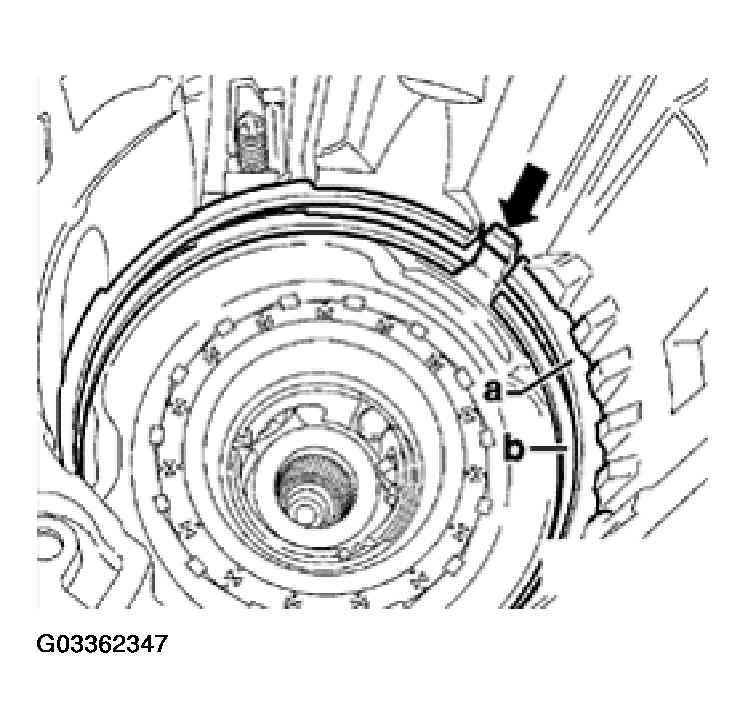

Remove supporting tube circlip -a- and free wheel circlip -b-.
Remove free wheel out of transmission housing by pulling on free wheel retaining wedge -arrow- with pliers.

Fig 13: Removing Supporting Tube Circlip And Free Wheel Circlip

Courtesy of VOLKSWAGEN OF AMERICA, INC.

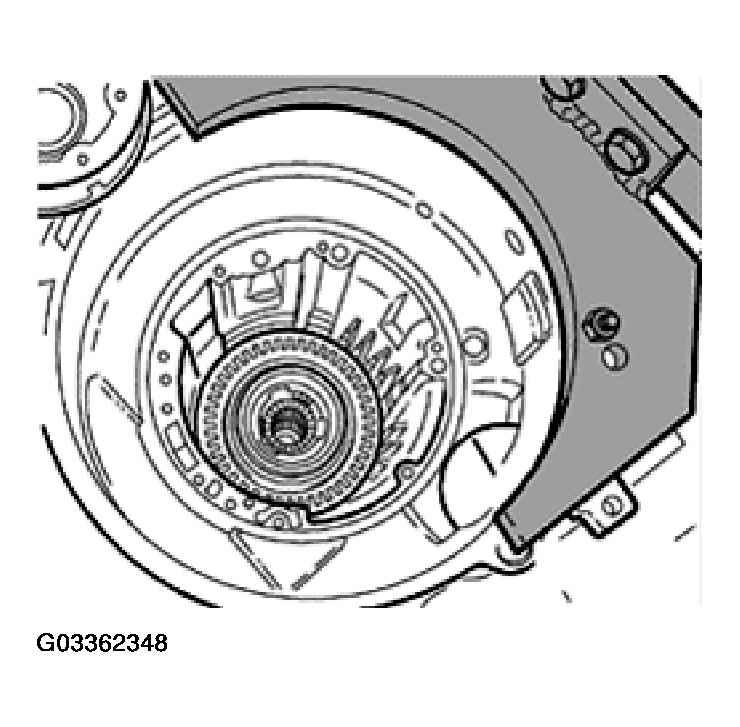

Remove planet carrier with dished spring.

Fig 14: Removing Planet Carrier With Dished Spring
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove reverse gear brake -B1- plates.
NOTE:
- It is not necessary to remove input gear to disassemble transmission. Input gear, removing and installing, see INPUT GEAR, REMOVING AND INSTALLING .
- Transmission, assembling, see TRANSMISSION, ASSEMBLING .
