Transmission Specifications and Clearances

Manual Transmission 012 Specifications

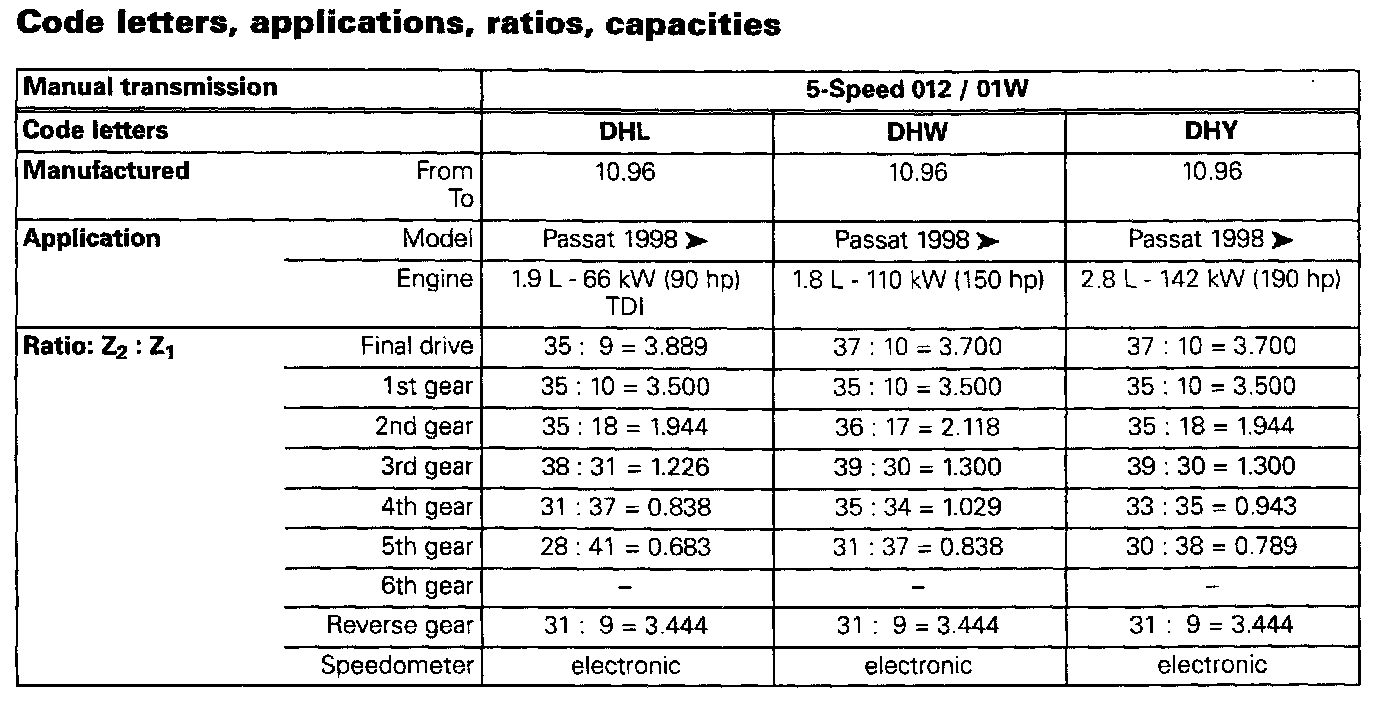

Code Letters And Applications:





Continued:

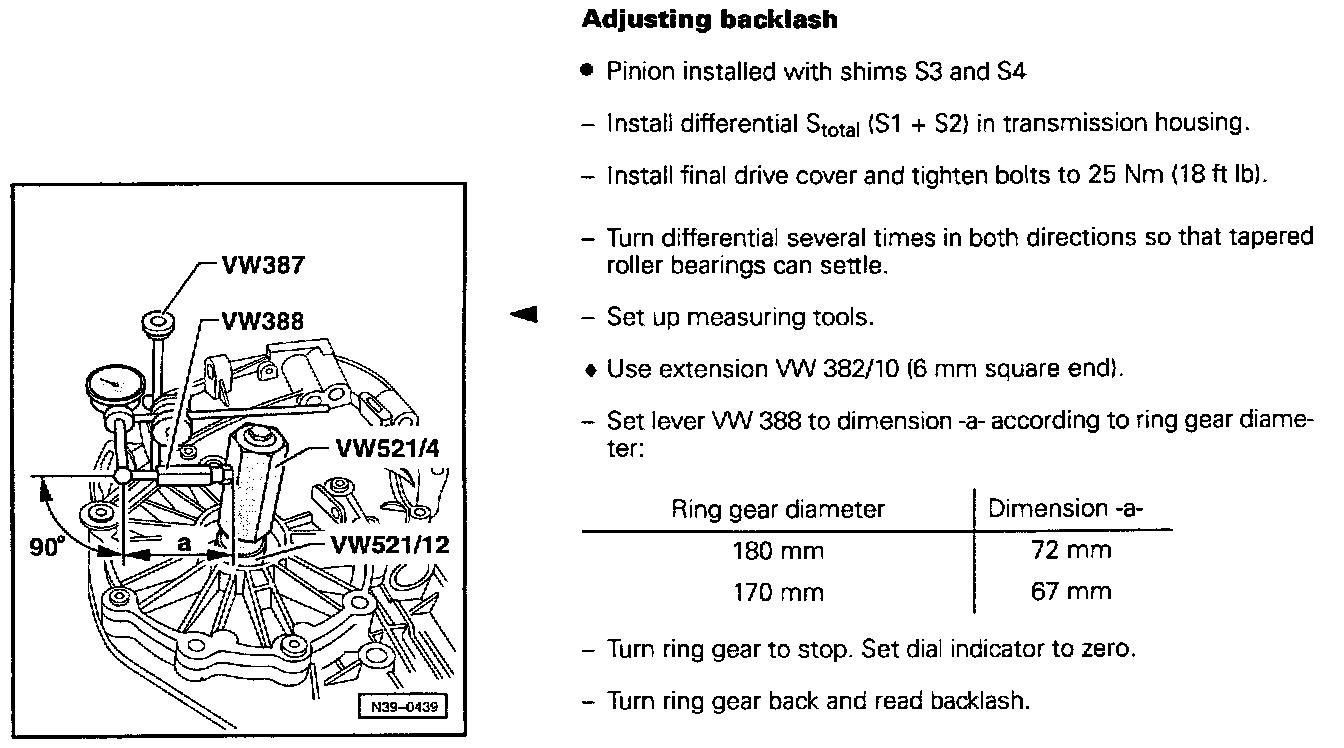

Adjusting Backlash Specifications:

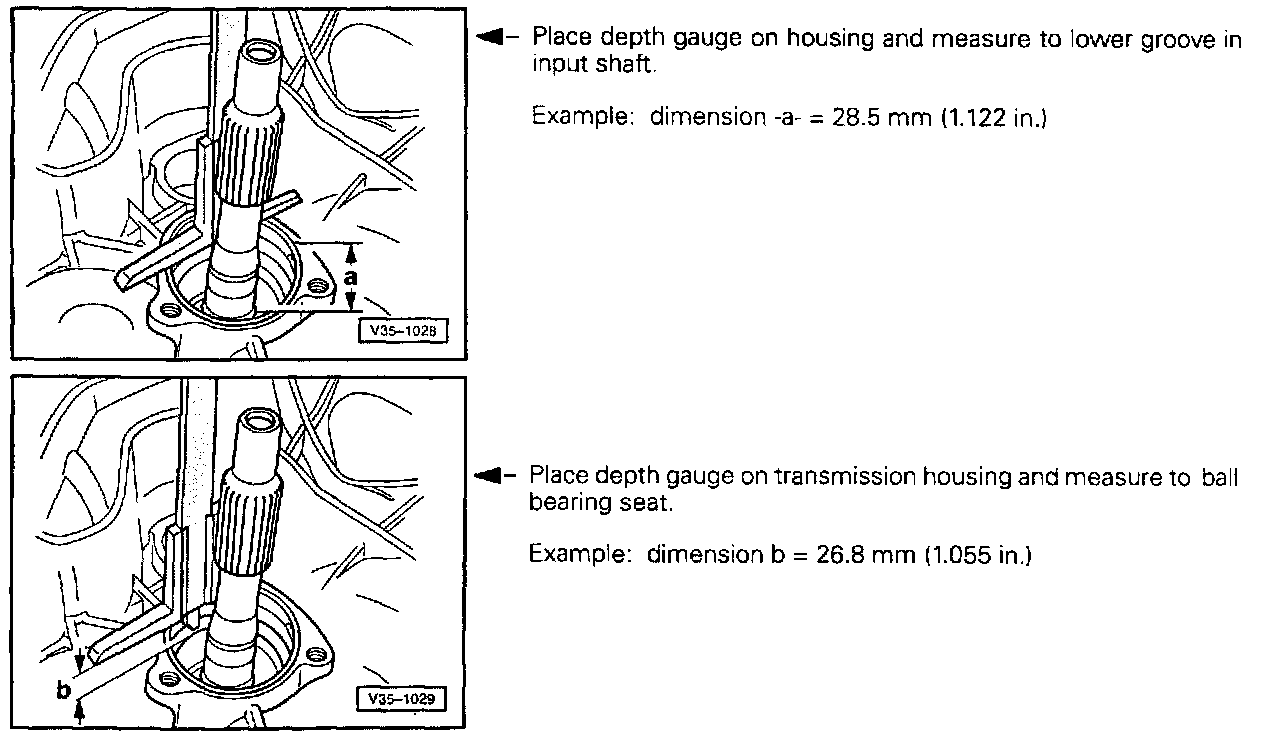

Input Shaft Specifications:





Ring Gear And Pinion Specifications:





Ring Gear And Pinion Specifications:




Continued:




Continued:

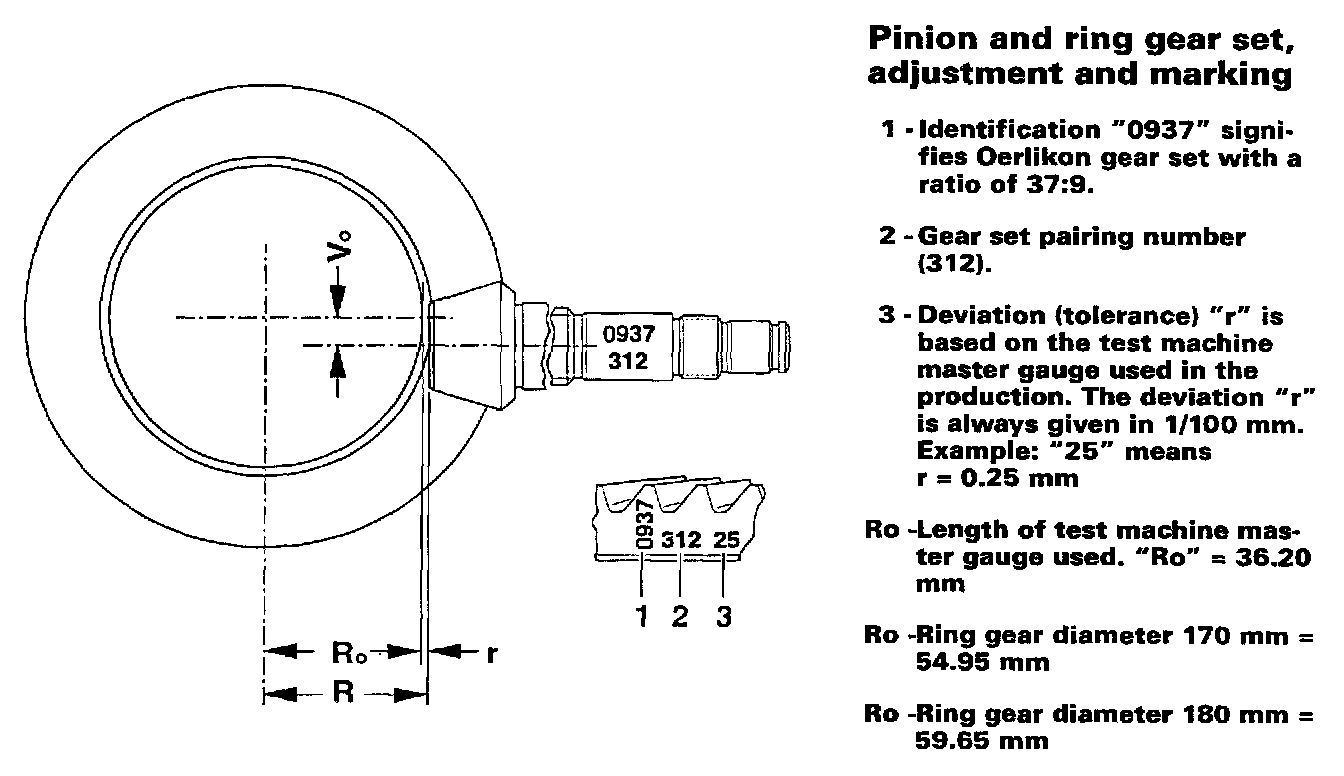

Pinion And Ring Gear Set Specifications:





Continued:

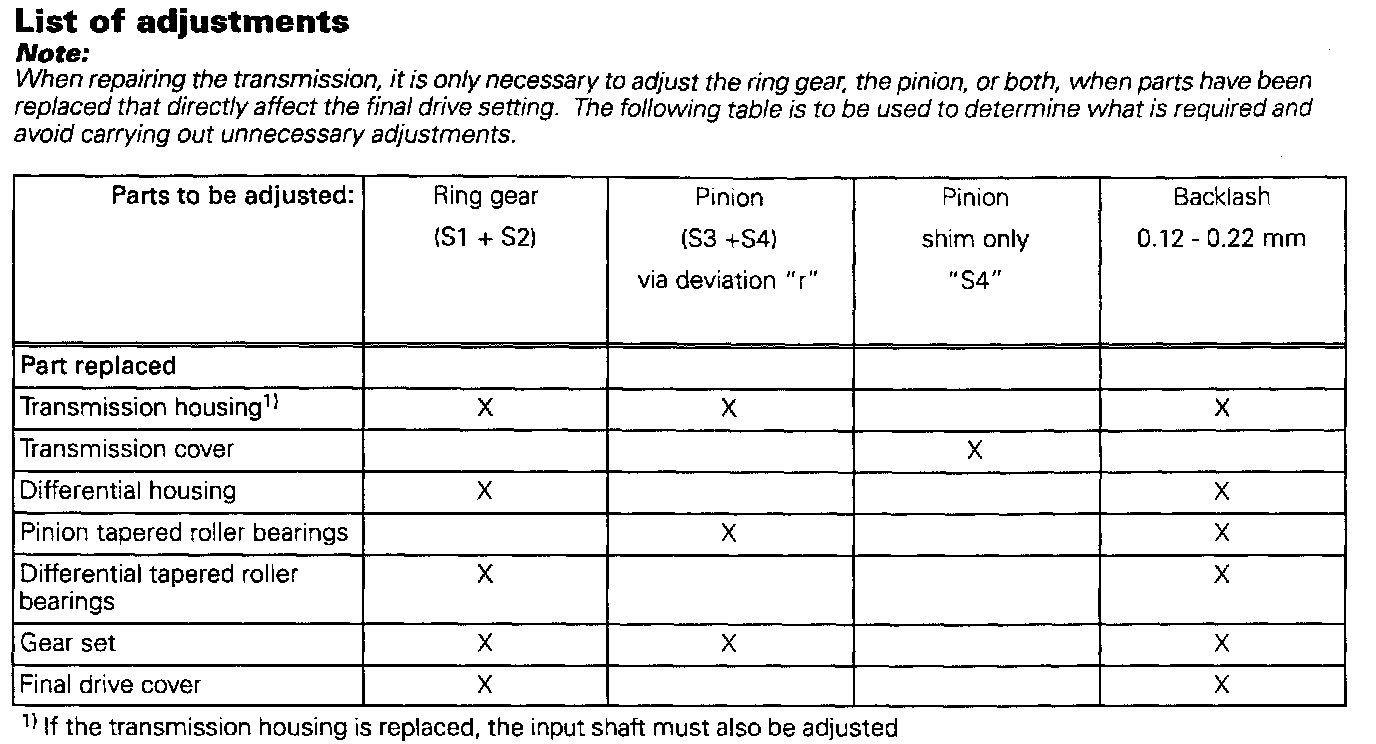

List Of Adjustments:
