Cruise Control Servo: Service and Repair

Vacuum Servo, Removing

Special tools, testers and auxiliary items needed







- VAG 1331 Torque wrench (or equivalent 5 - 50 Nm)

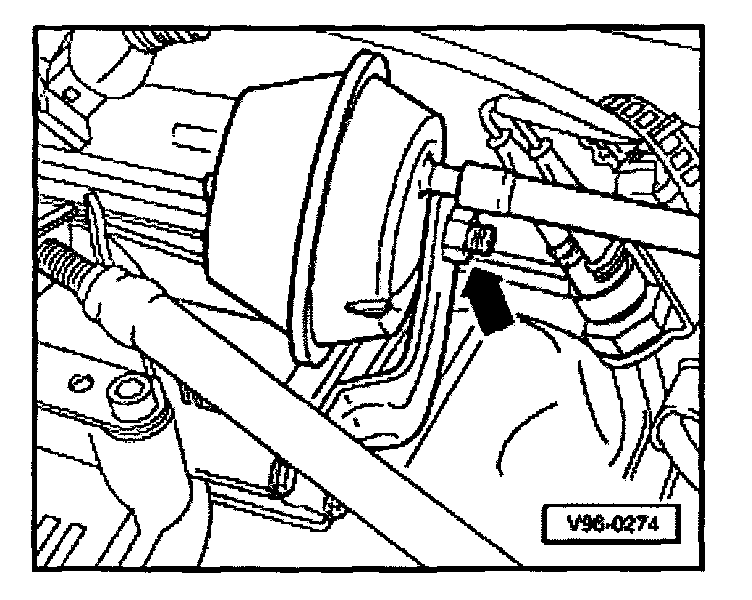

The actual installation position of the vacuum servo may vary from that illustrated.
- Pull off vacuum pipe







- Unscrew or unclip rod.
- Remove vacuum servo from bracket.
Tightening torque: 25 Nm (18 Nm).
