Selector Mechanism Assembly Overview, Transmission Side

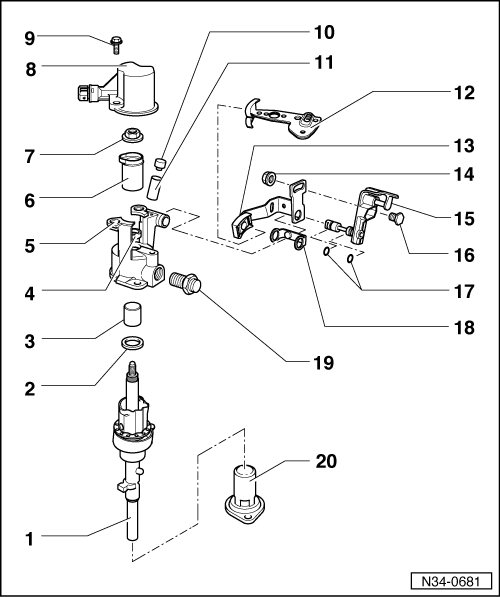

Fig 1: Exploded View Of Transmission Selector Mechanism Up To 05.99

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Selector shaft
2. Stop ring
3. Ball sleeve

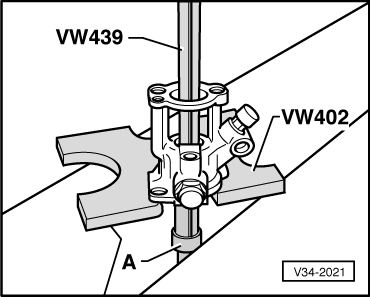

   • Removing Figure

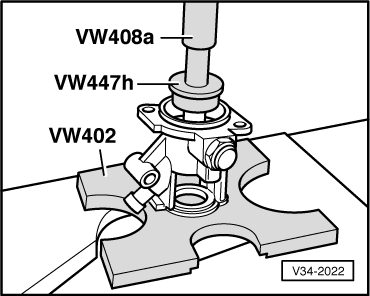

   • Pressing in Figure
4. Oil seal
   • Pry out with screwdriver
   • Installing Figure
5. Selector mechanism cover
6. Sleeve
   • The lug points to reverse light switch
   • Lightly coat lug with MoS₂ grease
7. Hex nut, 25 Nm
   • Self-locking
   • Always replace
8. Housing
   • For back-up light switch
9. Bolt
10. Cap
    • For transmission breather
11. Sleeve
    • Drive in onto stop if present as an individual part
12. Gear selector lever
    • Install so that master spline aligns with selector shaft
    • Can be replaced with selector mechanism installed
    • Installation position GEAR SELECTOR LEVER/RELAY LEVER ACTUATING ARM/BALANCE WEIGHT INSTALLATION POSITION
13. Relay lever
    • Installation position GEAR SELECTOR LEVER/RELAY LEVER ACTUATING ARM/BALANCE WEIGHT INSTALLATION POSITION
14. Nut, 15 Nm
15. Actuating arm
    • With axis pin for mounting relay lever
    • Installation position GEAR SELECTOR LEVER/RELAY LEVER ACTUATING ARM/BALANCE WEIGHT INSTALLATION POSITION
16. Bolt
    • Press into actuating arm
17. O-ring
    • Pull onto actuating arm axis pin
18. Spacer
    • Press into relay lever
19. Locking bolt, 40 Nm
