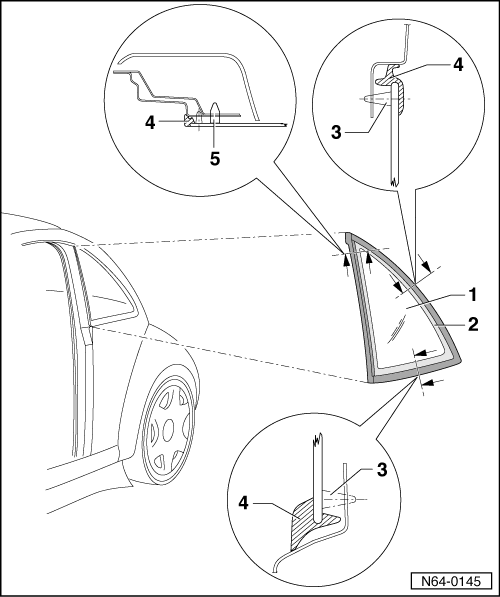

Side Window Assembly Overview
- Side window
- Remove side window, refer to UNDAMAGED SIDE WINDOW, REMOVING
- Installing side window, refer to SIDE WINDOW, INSTALLING
- Ceramic coating
- PUR adhesive sealant
- Bead diameter: width = 7 mm, height = 11 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time, refer to MINIMUM CURING TIME
- Sealing lip (component part of pre-coating)
- Securing pin
- Quantity: 2
- Cut off before removing window
