Front Door, Adjusting

For proper door adjustment, door hinges must be loosened at pillar. Other measures, such as aligning the door upward, are not effective. Excess pressure thereafter will again cause the door to sag.

Upper Door Hinge through 05.00

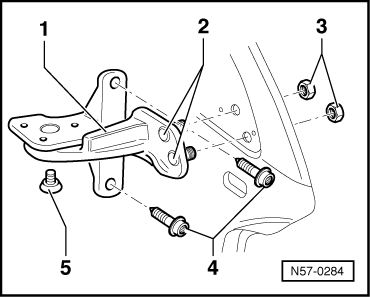

Fig 1: Identifying Upper Door Hinge 05.00

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door hinge
2. Threaded pins
3. Nut (20 Nm + 90°)
4. Bolt (20 Nm + 90°)
5. Bolt (27 Nm)

Upper Door Hinge from 06.00

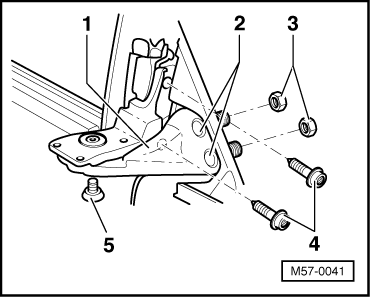

Fig 2: Identifying Upper Door Hinge 06.00

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door hinge
2. Threaded pins
3. Nut (20 Nm + 90°)
4. Bolt (20 Nm + 90°)
5. Bolt (27 Nm)

Bottom Door Hinge

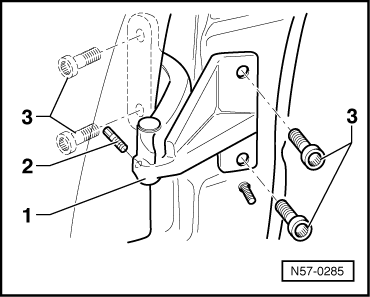

Fig 3: Identifying Lower Door Hinge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door hinge
2. Set screw (13 Nm)
3. Bolt (20 Nm + 90°)
