Shift Mechanism

NOTE:

Lubricate mounting points and contact surfaces with grease, Part No. G 052 142 A2.

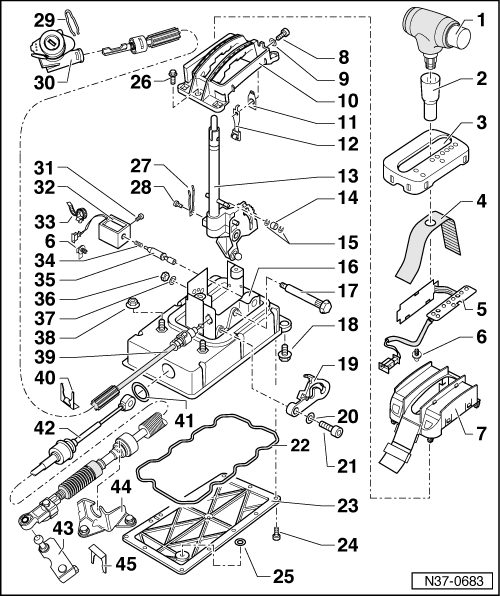

Fig 1: Shift Mechanism, Disassembling And Assembling, Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector lever handle
- Removing:
  -- Press sleeve down and pull handle up and away with button pressed, refer to item 2
- Installing:
  -- Install in position with button pressed, until it engages, then slide sleeve upward until it engages
Sleeve
- Locates in selector lever handle
- Prevents selector lever handle from being pulled off
Cover
- With selector indicator
- Clipped into console
Cover strip
- Insert in frame, refer to item 7
Selector lever position display
- Printed circuit for selector lever position display (illumination) is held in position by clips
- Connecting and disconnecting connector SELECTOR LEVER LOCK SOLENOID
Retainer
- Clipped into frame for connector, refer to item 7
Frame
- Carefully pry off in corners
- Push in cover strip, refer to item 4
- Installation position: Ribs facing downward
- Pay attention to position of printed circuits and wiring, refer to item 5-
- When installing do not damage contact springs for selector lever position display, refer to item 27
Bolt, 7 Nm
- Locating spring and plate to frame, refer to items 12 and 11
Washer
Locking segment
- Place on centralizing elements of selector lever housing, refer to item 16
Plate
Locating spring with roller
- Locates in the detent in selector lever, refer to item 13
Selector lever
- With pull rod, spring, detent, contact spring for selector lever position and releasing locking cable
- Removing and installing SELECTOR LEVER CABLE
Roller
- For releasing locking cable
Circlip
Selector lever housing
- Need not be removed to replace the majority of individual parts, with the exception of selector lever and shift lock solenoid
Fulcrum pin
- Splined
- Grease shank
- Do not turn when installing selector lever
Bolt, 25 Nm
Locking lever
- For locking cable
- For locking in selector lever position "P"
Washer
Bolt
Gasket
- Always replace
Cover
- For selector lever housing
Bolt
- Qty. 14
O-ring
- Always replace
Bolt, 8 Nm
- Qty. 2
Contact spring
- For selector lever position display
Bolt, 4 Nm
- Place selector lever in "P" to loosen and tighten
Clip
Steering lock
Bolt
- Qty. 2
- Solenoid to selector lever housing
Shift lock solenoid -N110-
- Removing and installing SELECTOR LEVER LOCK SOLENOID
- Can be checked in electrical test and in measured value block ELECTRICAL AND ELECTRONIC COMPONENTS AND LOCATIONS
- Only remove and install with selector lever in position "1"
- Pay attention to spring and locking pin when removing
- Remove together with locking pin and spring while moving selector lever back and forth slightly
Cable tie
- Wiring/solenoid to selector lever housing
- Always replace
Spring
Locking pin
Nut, 13 Nm
- Always replace
Washer
Nut, 25 Nm
- Qty. 2
- Always replace
Locking cable
- For ignition key removal lock
- Must not be kinked
- Removing and installing LOCKING CABLE
- Adjusting LOCKING CABLE, ADJUSTING
- Checking operation of ignition key withdrawal lock IGNITION KEY REMOVAL LOCK, CHECKING OPERATION .
Circlip
- Always replace
- For mounting selector lever cable to selector lever housing
- Install with angled end inside selector housing
Gasket
- Always replace
Selector lever cable
- Do not bend or kink
- If the outer cable is damaged the selector lever cable must be replaced
- Checking and adjusting SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
- Removing and installing SELECTOR LEVER CABLE
- Lightly grease ball socket and cable ends before installing
Lever
- For selector shaft
Support bracket
- For mounting selector lever cable on transmission
Circlip
- Always replace
