Clutch Switch: Locations




F194, G:






F194:

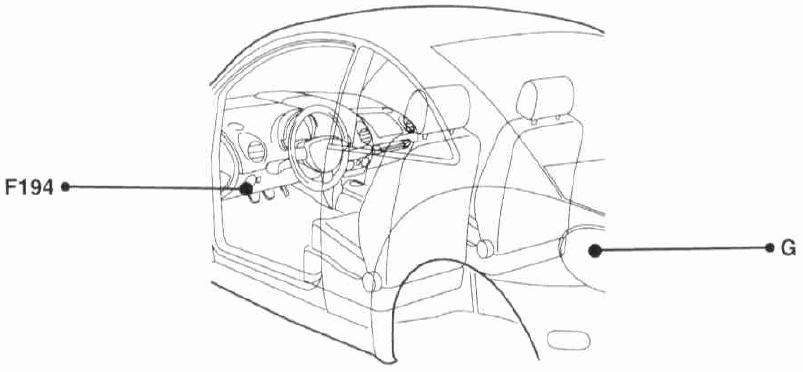

Component View

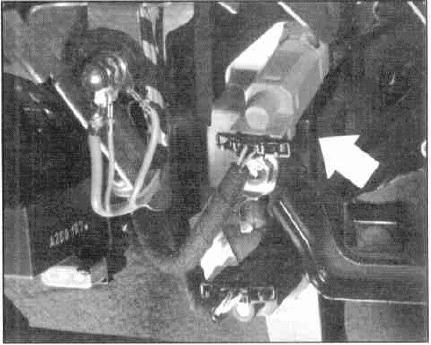

F194 Clutch Pedal Position (CPP) switch
^ Above clutch pedal
^ Above clutch vacuum vent valve -F36-
