Camshaft Position Sensor: Locations




G108, G163:

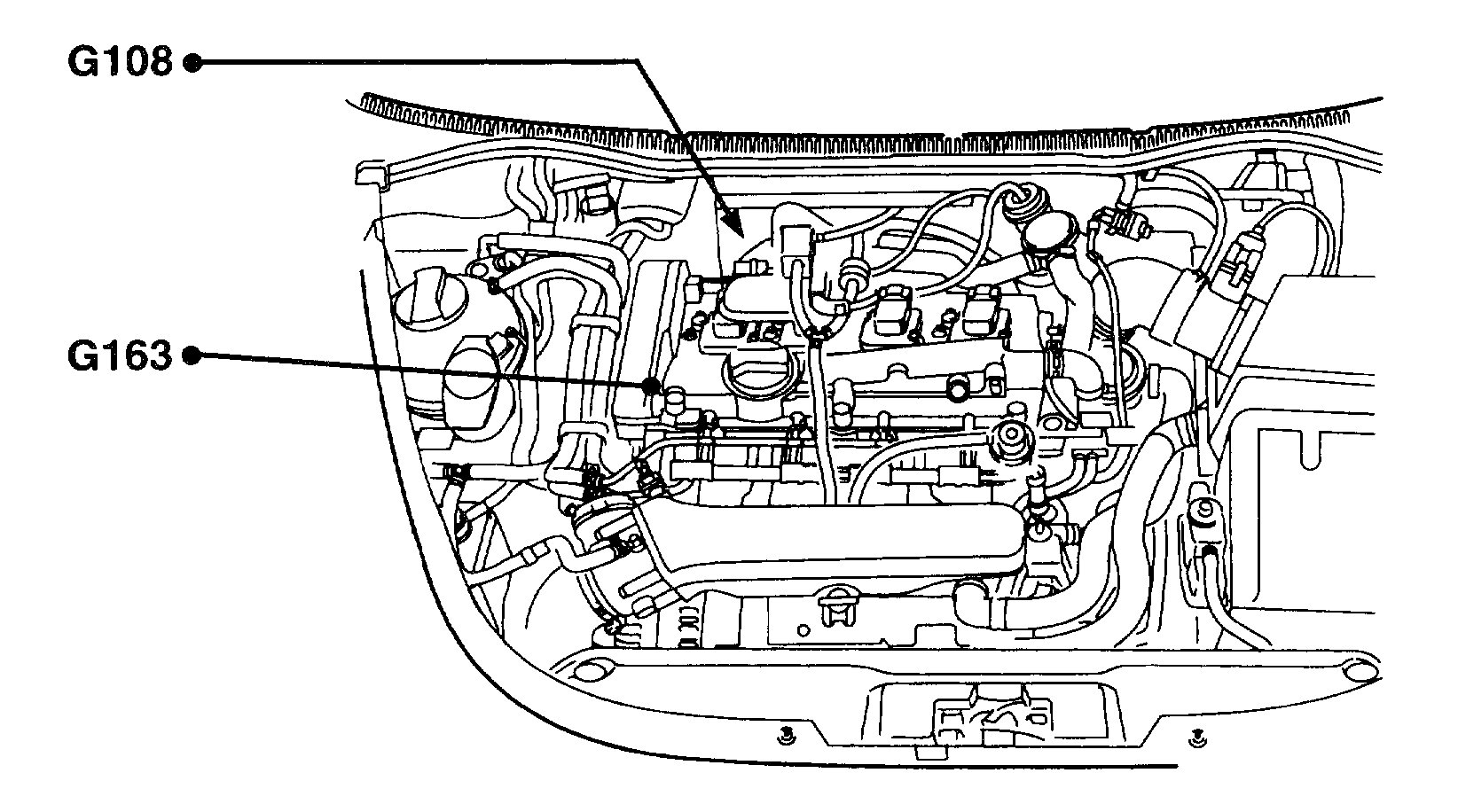

Component Location View


G163:

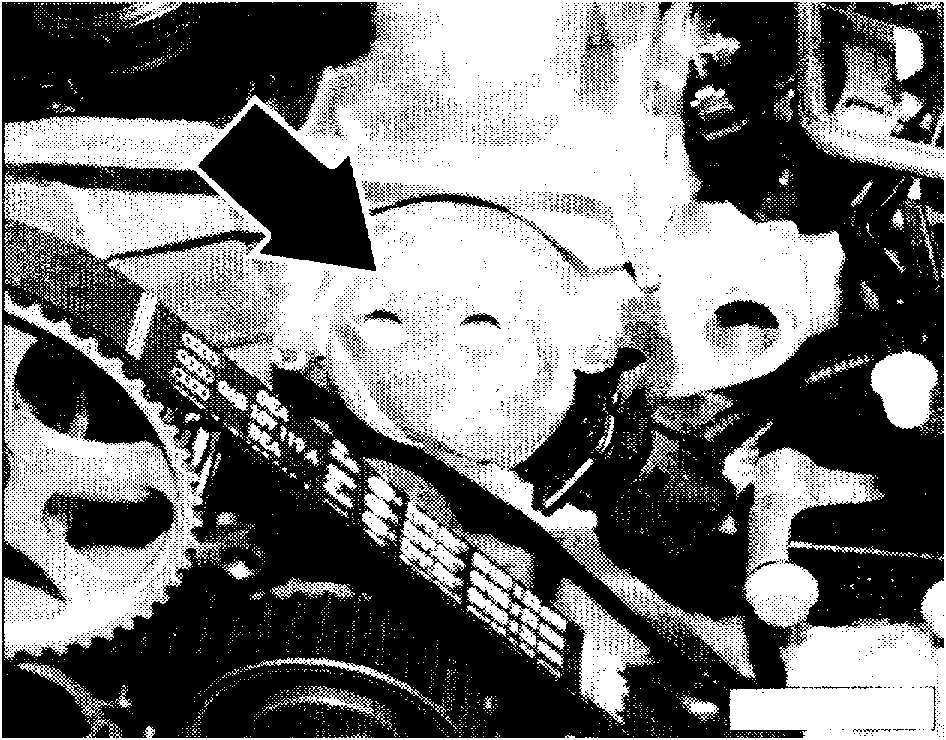

Component View

G163 Camshaft Position (CMP) Sensor 2
- On cylinder head, right side
- Beneath toothed belt cover
