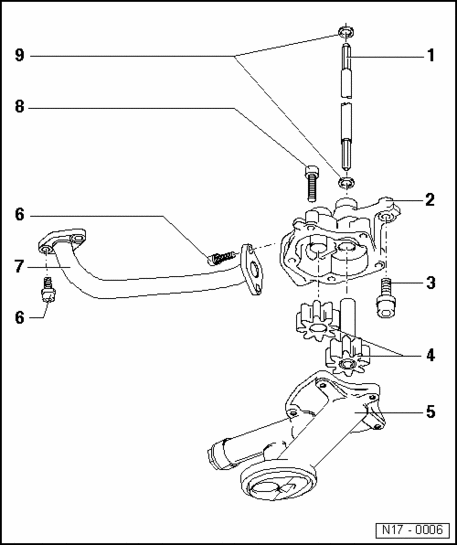

Oil pump, disassembling and assembling: Notes

1 - Drive shaft

• For oil pump drive

2 - Oil pump body

3 - 25 Nm

4 - Gears

• Checking tooth backlash Checking oil pump tooth backlash  under Oil pump, disassembling and assembling
• Checking end play Checking oil pump end play  under Oil pump, disassembling and assembling

5 - Oil pump cover with pressure relief valve

• Opening pressure: 5.3-5.7 bar
• Clean strainer if contaminated

6 - 10 Nm

• Always replace
• Insert with thread lock D 000 600  .

7 - Discharge pipe

• Coat engine block and oil pump body with sealant AMV 188 001 02

8 - 10 Nm

9 - O-Ring

• Replace if damaged
