Valve timing, setting (Installing timing chains): Notes

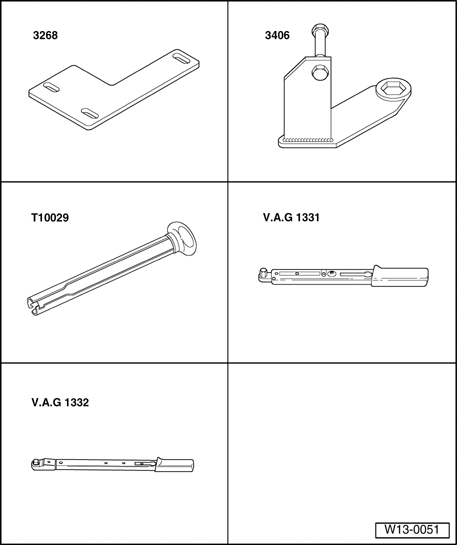

Fig 1: Identifying Special Tools - Valve Timing, Setting (Installing Timing Chains)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Camshaft ruler 3268
• Counter hold 3406
• Spark plug connector tool T10029
• torque wrench (5-50 Nm) VAG 1331

• torque wrench (40-200 Nm) VAG 1332
