Heating And A/C Controls Component Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.

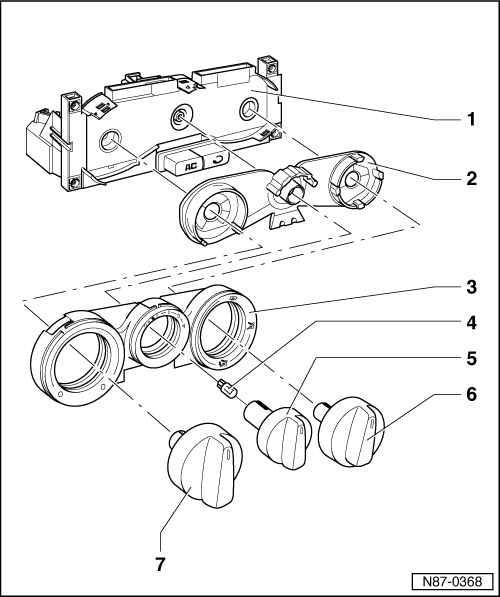

- Heating and A/C controls
- With A/C Evaporator Temperature Switch -E35-
- With Fresh Air Blower Switch -E9-
- With Fresh Air Blower/Recirculated Air Switch -E184-
- Removing and installing HEATING AND A/C CONTROLS
- Illumination filter
- Trim panel
- Fresh Air Control Illumination -L16-
- 12V, 1.2W
- Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
- Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
- Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
