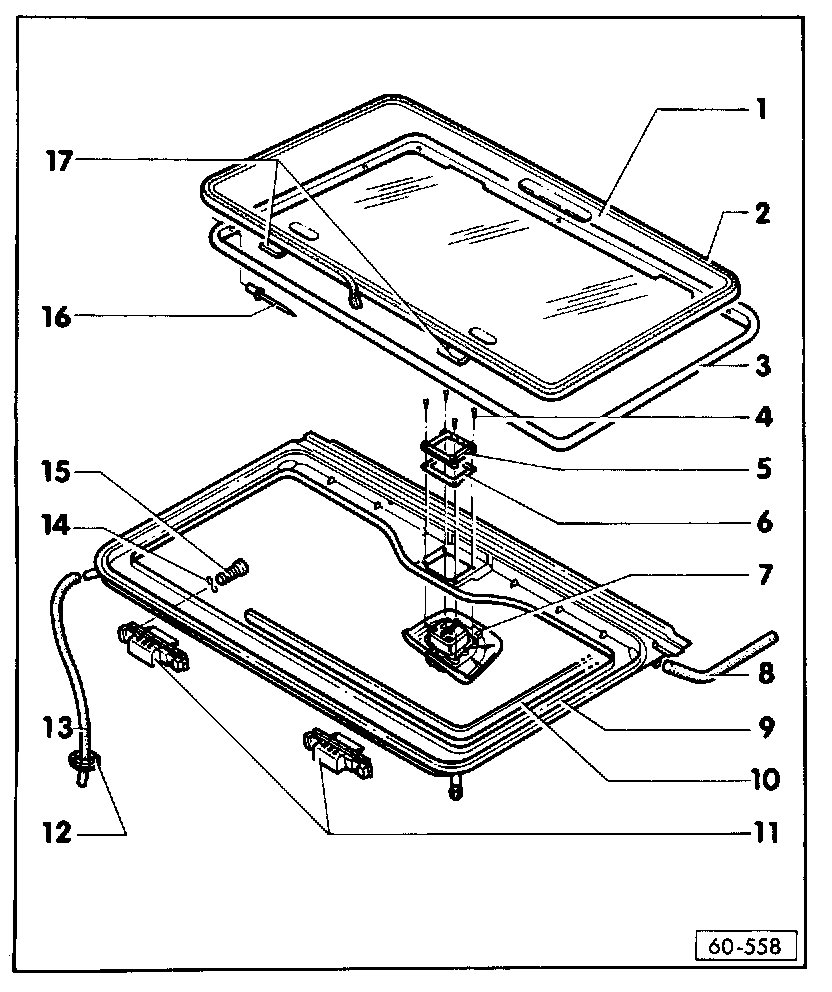

Sunroof / Moonroof

1 - Sunroof panel
2 - Gasket
3 - Trim
- riveted
4 - Phillips screw
5 - Mounting ring
6 - Gasket
7 - Crank handle
8 - Rear drain hose
- Routing and cleaning See 'Sunroof/Moonroof Drain.' Sunroof / Moonroof Drain
9 - Frame
10 - Gasket
11 - Bracket
12 - Grommet
13 - Front drain hose
- Routing and cleaning See 'Sunroof/Moonroof Drain.' Sunroof / Moonroof Drain
14 - Washer
15 - Screw
16 - Rivet
17 - Hinge
- Hooked into bracket -11-
