Pulling Off Taper Roller Bearing Inner Race

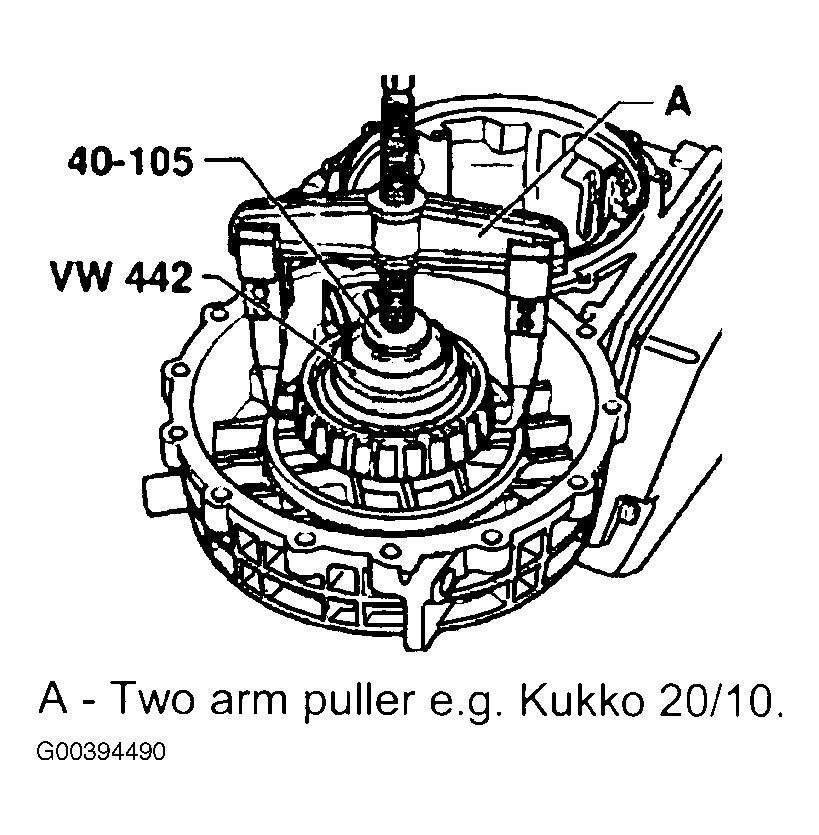

Fig 1: Pulling Off Taper Roller Bearing Inner Race

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place press piece 40-105 on differential cage.

Fig 1: Pulling Off Taper Roller Bearing Inner Race

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert puller hooks into cut-outs in transmission housing.
