Engine oil level, checking

After switching engine OFF, wait at least 3 minutes to allow the oil to flow back into the pan.

• Remove dipstick, wipe with a clean cloth and reinsert as far as stop.
  NOTE: Please note waste disposal requirements.

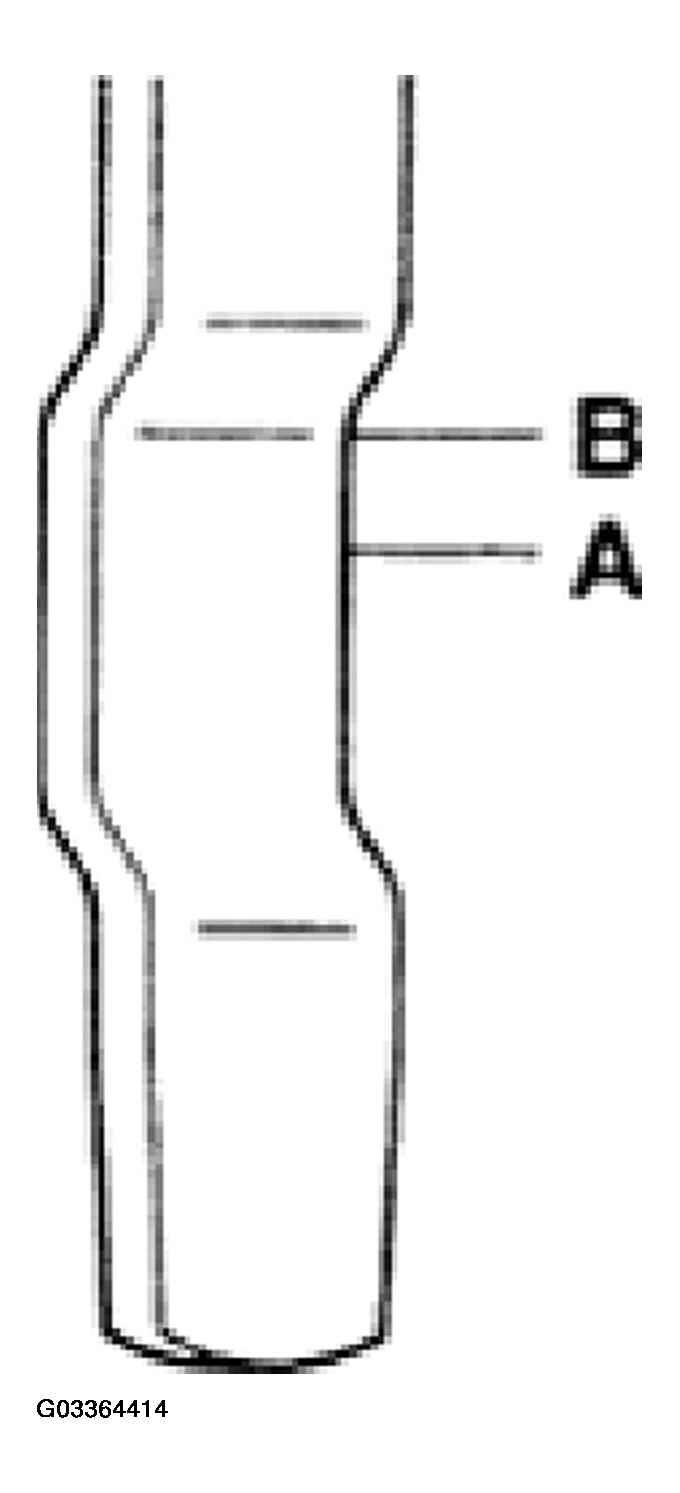

Fig 1: Checking Engine Oil Level (Dipstick Markings)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Remove dipstick again and read oil level: The oil level must be at the top edge of the shaded area (-A-) but on no account above this.
