Display group 5 -Basic functions-

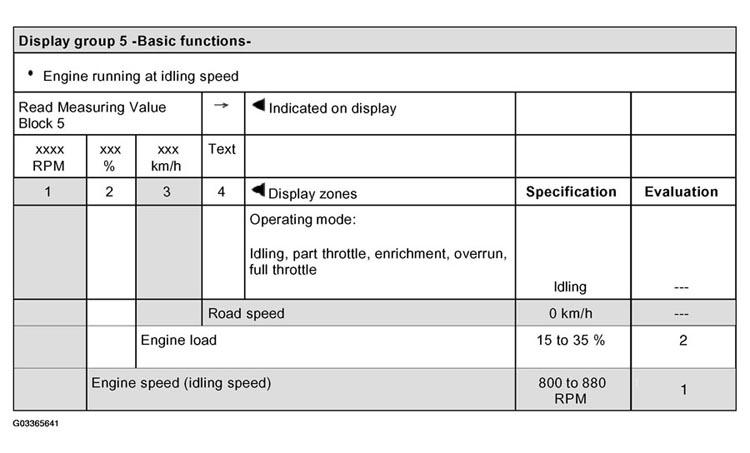

Fig 1: Identifying Display Group 5 - Basic Functions

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display Group 5 - Basic Functions

• For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .
• For Evaluation 2 in Fig 1, see EVALUATING DISPLAY GROUP 10, DISPLAY ZONE 2 - ENGINE LOAD .
