Backrest, removing and installing: Notes

NOTE: The following list refers to Fig 1 .
  1. - Clip
  2. - Trim
  3. - Release knob
  4. - Adjusting knob
  5. - Expander pin
  6. - Cover
  7. - Retainer
  8. - Control handle (height adjustment only)
  9. - Control handle (deluxe seat only)
  10. - Trim panel (height adjustment only)
  11. - Screw
  12. - Bushing
  13. - Mounting pin

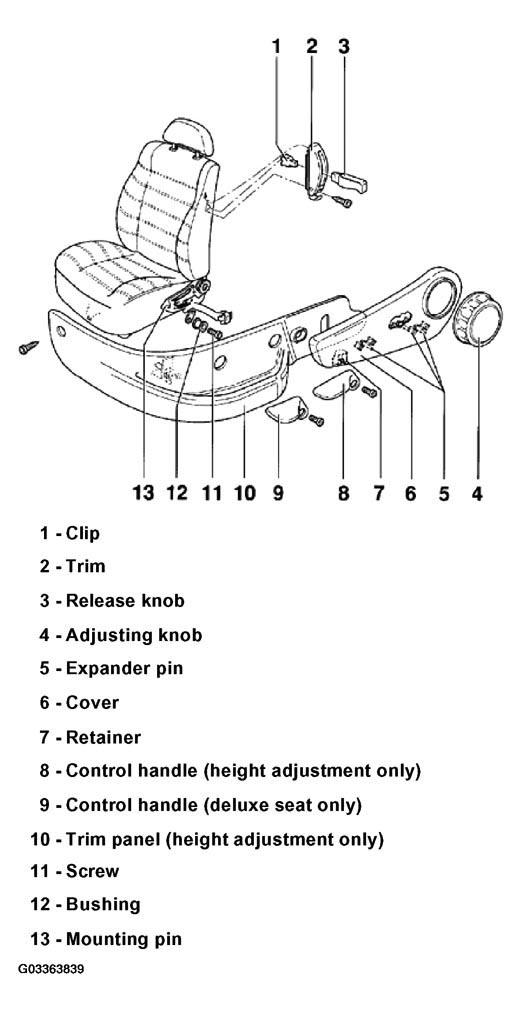

    14. Fig 1: Exploded View Of Backrest Components
    G03363839Courtesy of VOLKSWAGEN OF AMERICA, INC.
