Final drive, overview

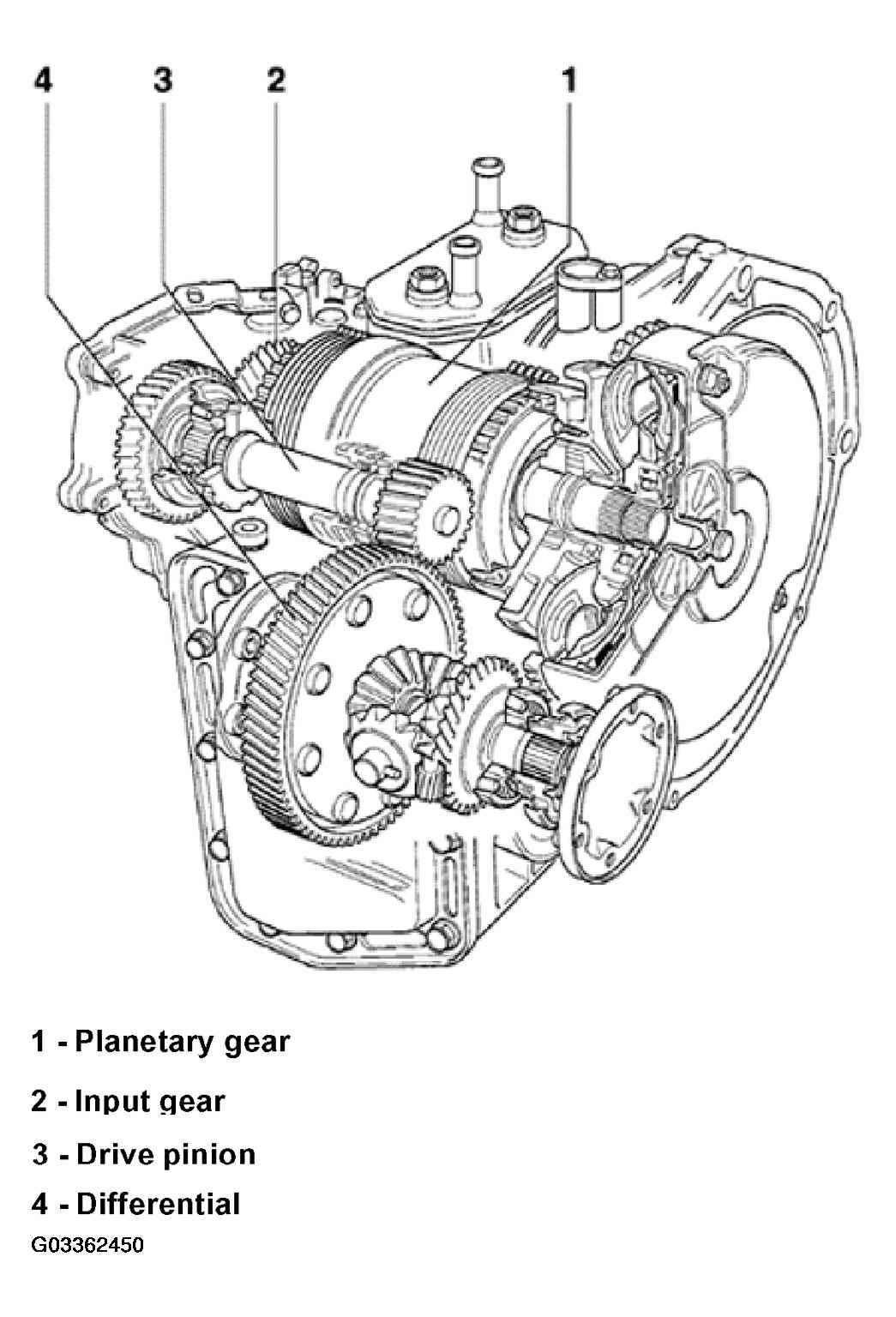

The following list pertains to Fig 1.
- Planetary gear
- Disassembling and assembling, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING, OVERVIEW
- Input gear
- Removing and installing, see INPUT GEAR, REMOVING AND INSTALLING
- Adjusting: see INPUT GEAR, ADJUSTING
- Final drive: adjusting (overview), see FINAL DRIVE, ADJUSTING
- Repairs on input gear can only be performed after individual components of transmission have been removed.
- Drive pinion
- Removing and installing, see DRIVE PINION, REMOVING AND INSTALLING
- Adjusting, see DRIVE PINION, ADJUSTING
- Final drive, adjusting (overview), see FINAL DRIVE, ADJUSTING
- Differential
- Removing and installing, see DIFFERENTIAL, REMOVING AND INSTALLING
- Disassembling and assembling, see DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING
- Adjusting, see DIFFERENTIAL, ADJUSTING
- Final drive, adjusting (overview), see FINAL DRIVE, ADJUSTING
