Refrigerant Pressure Sensor / Switch: Locations

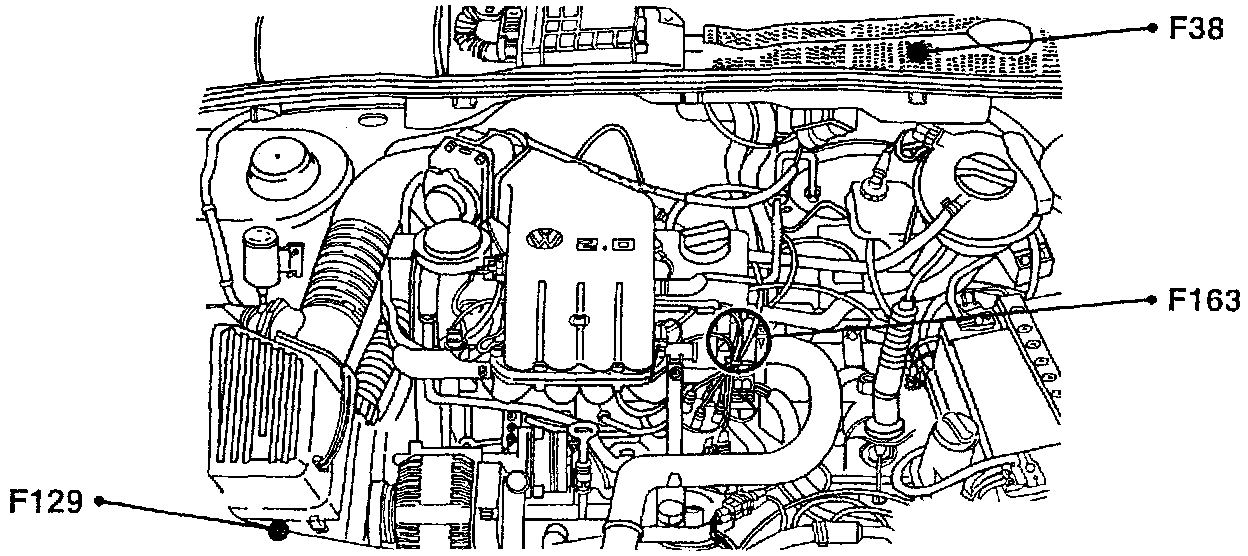

F129, F38, F163:
Component Location View
F163:
Component View
F163 A/C Cut-out Thermal Switch (4-cyl.)
- In coolant flange on left end of cylinder head
Component Location View
Component View
F163 A/C Cut-out Thermal Switch (4-cyl.)
- In coolant flange on left end of cylinder head
