Body and Frame: Service and Repair

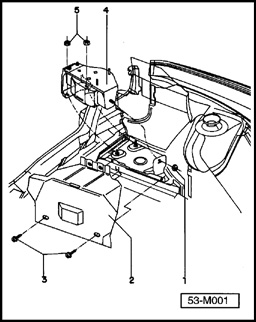

Vibration Counterweight, Removing And Installing







1 - Nut
- Tightening torque: 46 Nm

2 - Counter weight cover
3 - Screw
4 - Counterweight
5 - Nut
- Tightening torque: 27 Nm

Removing
- Remove screws - 3 - and remove counterweight cover - 2 -.
- Remove nuts - 5 - and nut - 1 -.
- Remove counterweight.

Installing
- Install in reverse order of removal
