Radiator Support: Service and Repair

Lock Carrier, Removing And Installing

- Disconnect harness connectors and detach hood Bowden cable.
- Loosen air ducts in area of wheel housing liner.

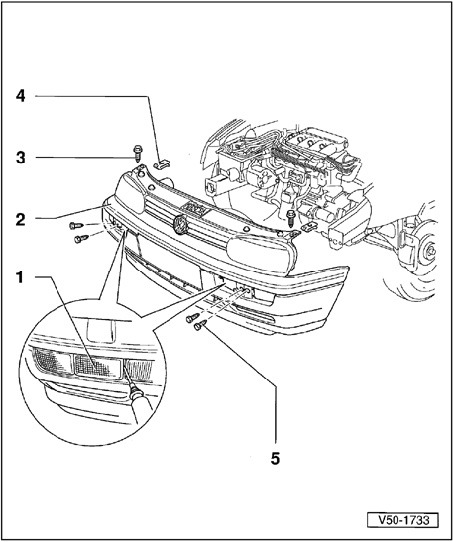

1 - Towing eye cover
- Swivel out cover cap/towing eye toward front using a suitable tool and pull out of holder/turn signal.

2 - Lock carrier with attachments
- Must be installed free of tension

3 - Bolt
- 5 Nm

4 - Speed nut
5 - Bolt
- 23 Nm
