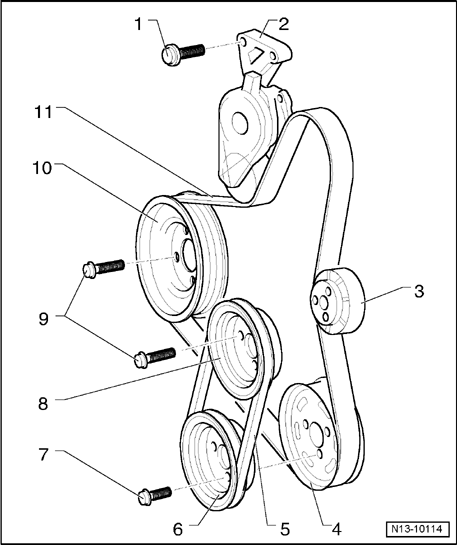

Engine, Disassembling And Assembling - Part I, Assembly Overview
1 - 25 Nm
2 - Ribbed belt tensioner
- To release tension on ribbed belt, swing using open-end wrench → Ribbed belt, removing and installing.
3 - Belt pulley
- For viscous fan clutch
4 - Belt pulley
- for vane pump for power-assisted steering
5 - V-belt
- Removing and installing → V-belt for coolant pump, removing and installing
6 - Belt pulley
- Version for V-belt
7 - 25 Nm
8 - Belt pulley
- For coolant pump
- Version for V-belt
9 - 25 Nm
10 - Belt pulley/harmonic balancer
- Installation only possible in one position (bore holes offset)
11 - Ribbed belt
- Mark direction of travel before removing
- Removing and installing → Ribbed belt, removing and installing.
