Procedures

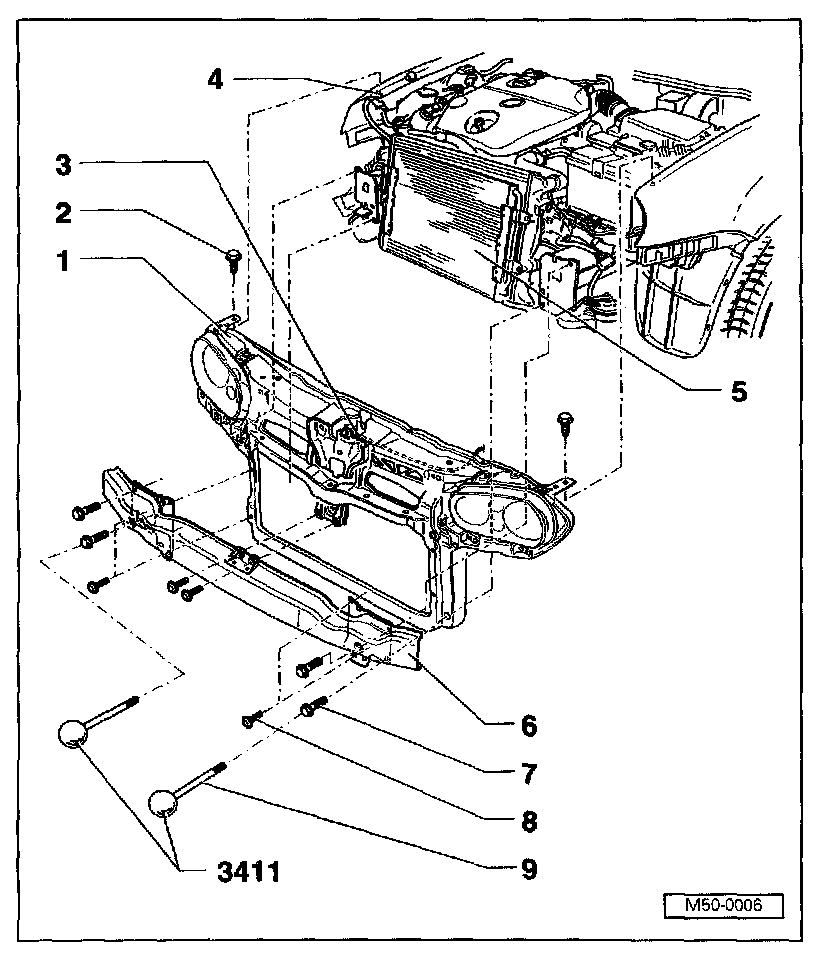

Lock carrier service position





- Remove front bumper cover. Service and Repair
- Disconnect bowden cable at lock.
- Remove one bolt each at longmembers and screw in Guide rods 3411 at right and left longmembers.

- Remove bolts and pull lock carrier torward front in area of Guide rods 3411.
