Checking Heating Of Left Power Mirror (9/98-1999)

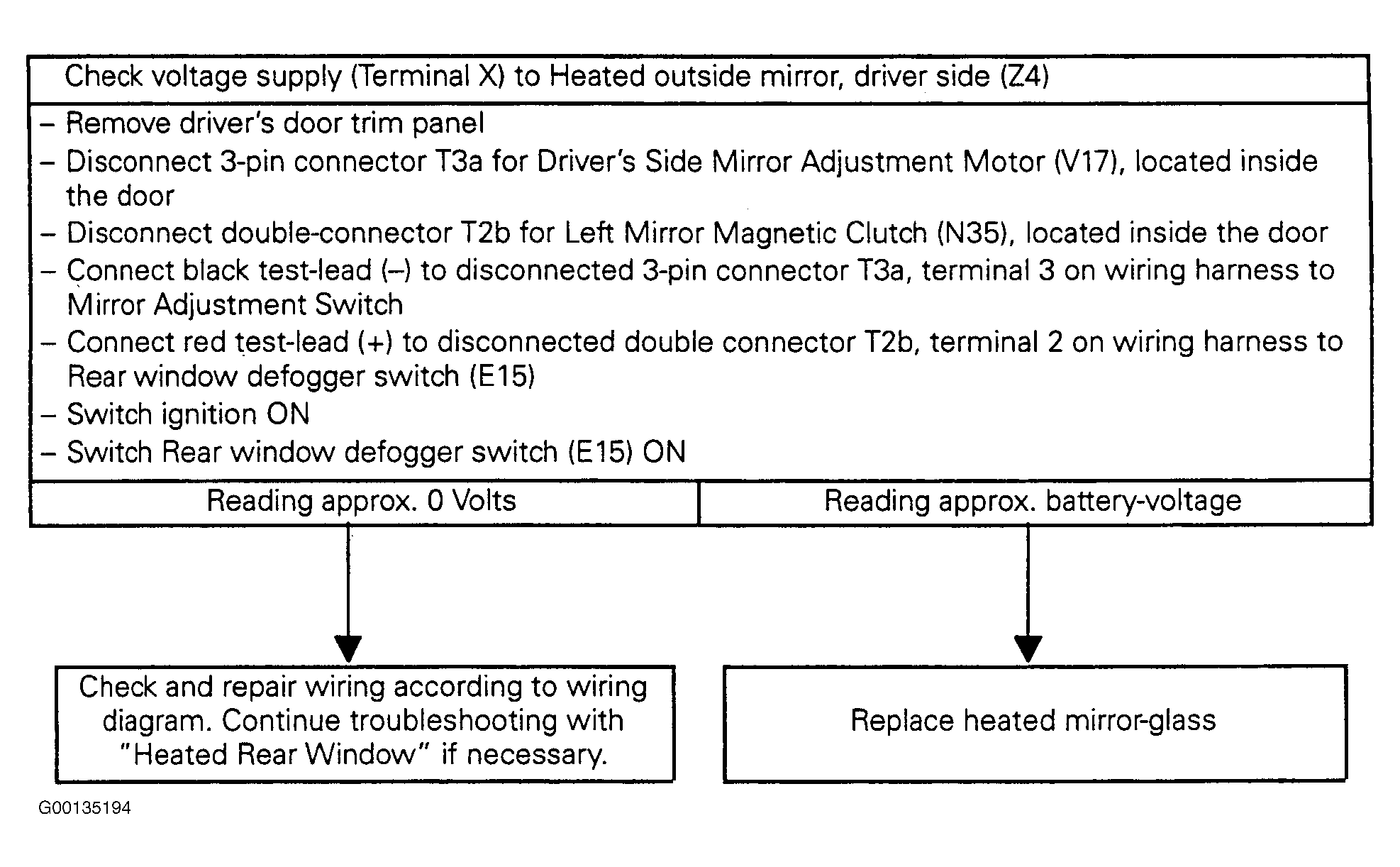

Ensure SB12 fuse No. 12 (30-Amp, Green) located on fuse holder "B" below fuse/relay panel and S14 fuse No. 14 (10-Amp, Red) located on fuse/relay panel are not missing or burned out. For circuit and flow chart diagnostics, refer to illustration. See Fig 1 . Also refer to wiring diagram. See WIRING DIAGRAMS . After repair(s) have been completed, check operation of mirror heating and adjusting.
