Checking adjustment after installation

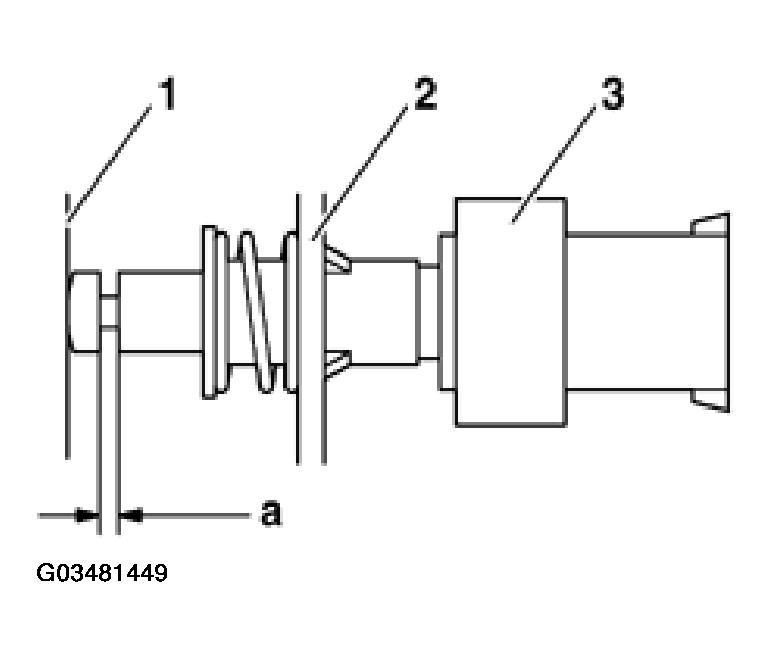

1. Brake pedal
2. Mounting bracket
3. Brake light switch -F-

Adjustment dimension a = max. 0.7 mm

Fig 1: Identifying Brake Light Switch Adjustment Dimension (1 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

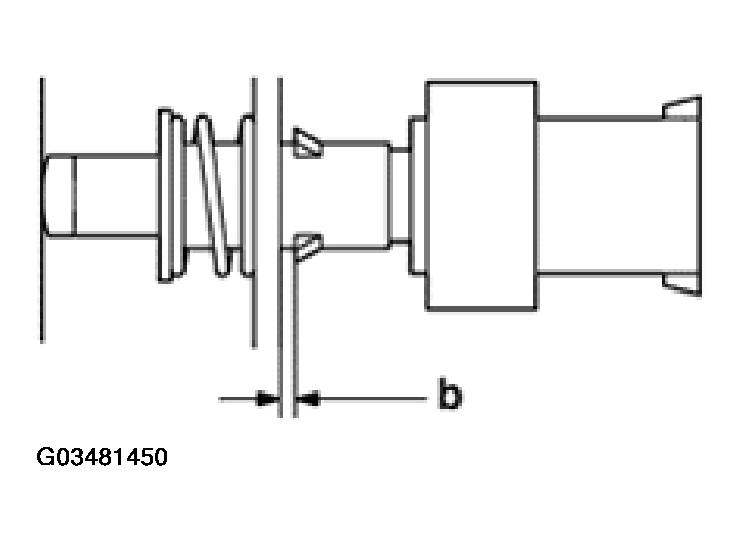

Adjustment dimension b = max. 0.7 mm

Fig 2: Identifying Brake Light Switch Adjustment Dimension (2 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

One of these adjustment dimensions MUST be obtained.

• Check adjustment dimension a or b and correct the adjustment if necessary by rotating the brake light switch inward or outward.

After adjusting brake light switch, check whether brake pedal is in end position (released position).
