1.9L TDI - Readiness Code, Checking And Setting (GROUP 01, NO. 98-08)

Publication date: 1998-06-22
Reference number: GROUP 01, NO. 98-08

1.9L TDI - READINESS CODE, CHECKING AND SETTING

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 98-08, Date of Issue: June 22, 1998

VOLKSWAGEN:	1998-on Jetta W/1.9L TDI engine
GROUP:	01 - On Board Diagnostic (OBD)

Readiness Code, checking and setting

This Bulletin includes new or revised information which will be integrated into the Repair Manual at the next update.

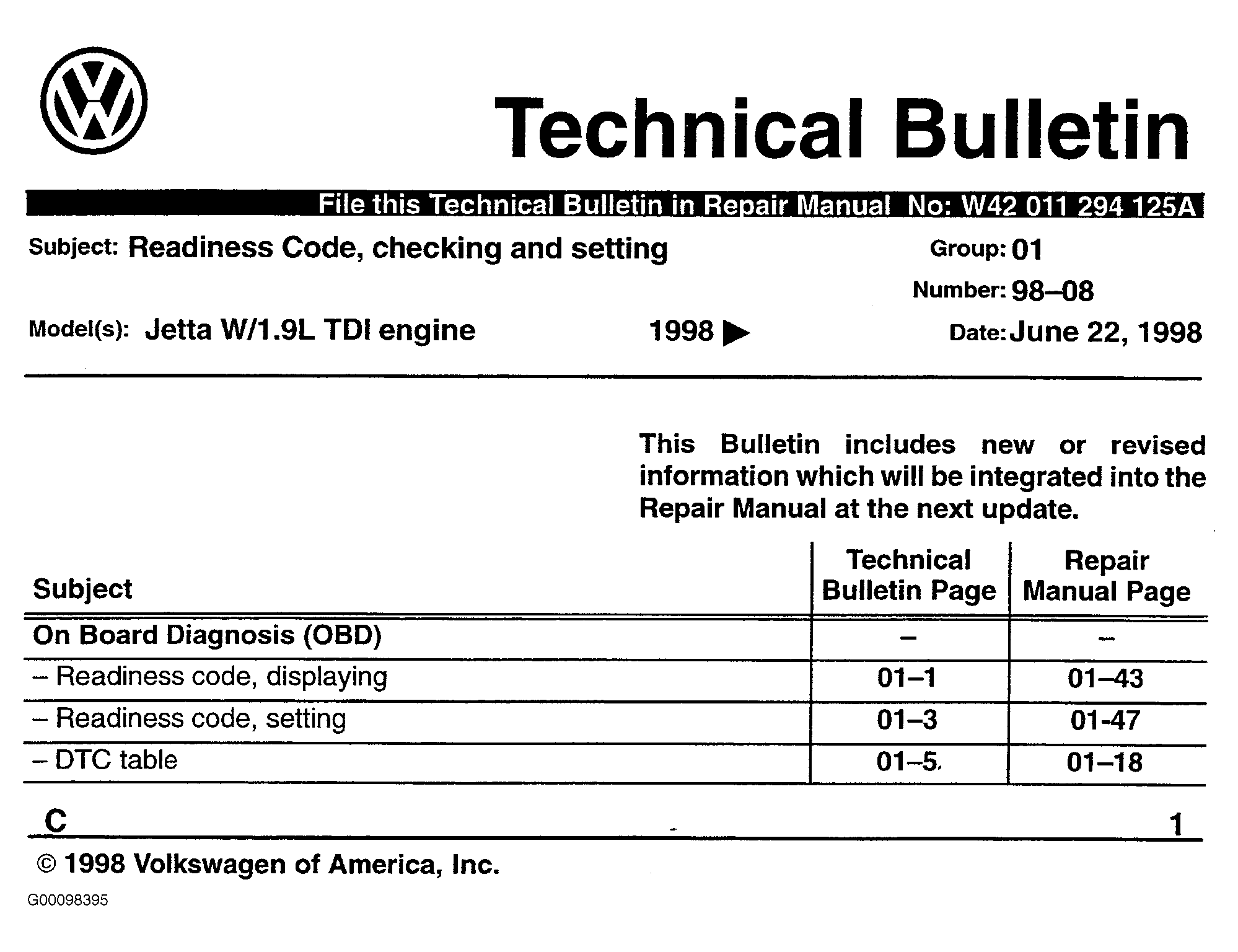

Fig 1: Page 1 of Bulletin

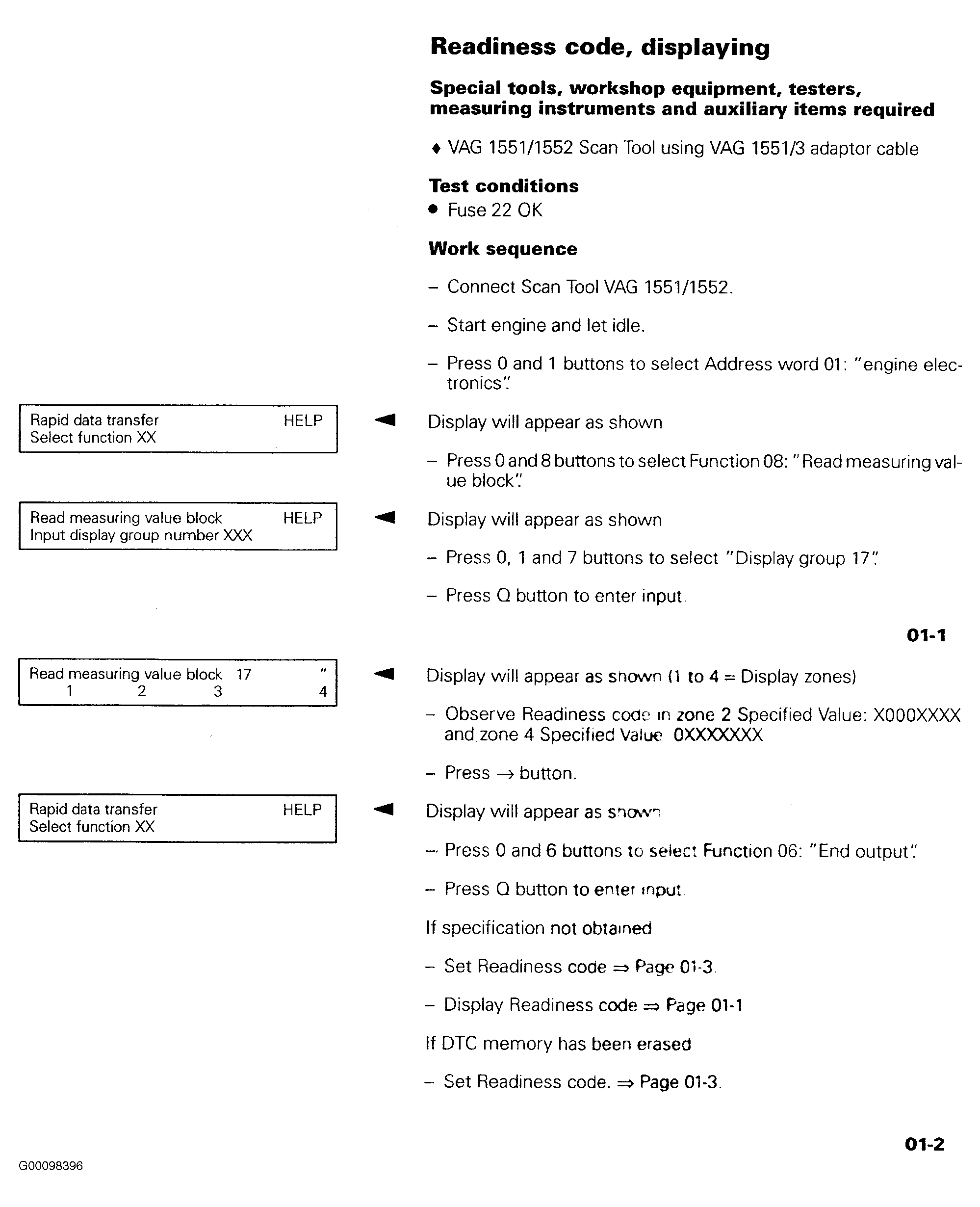

Fig 2: Page 2 of Bulletin

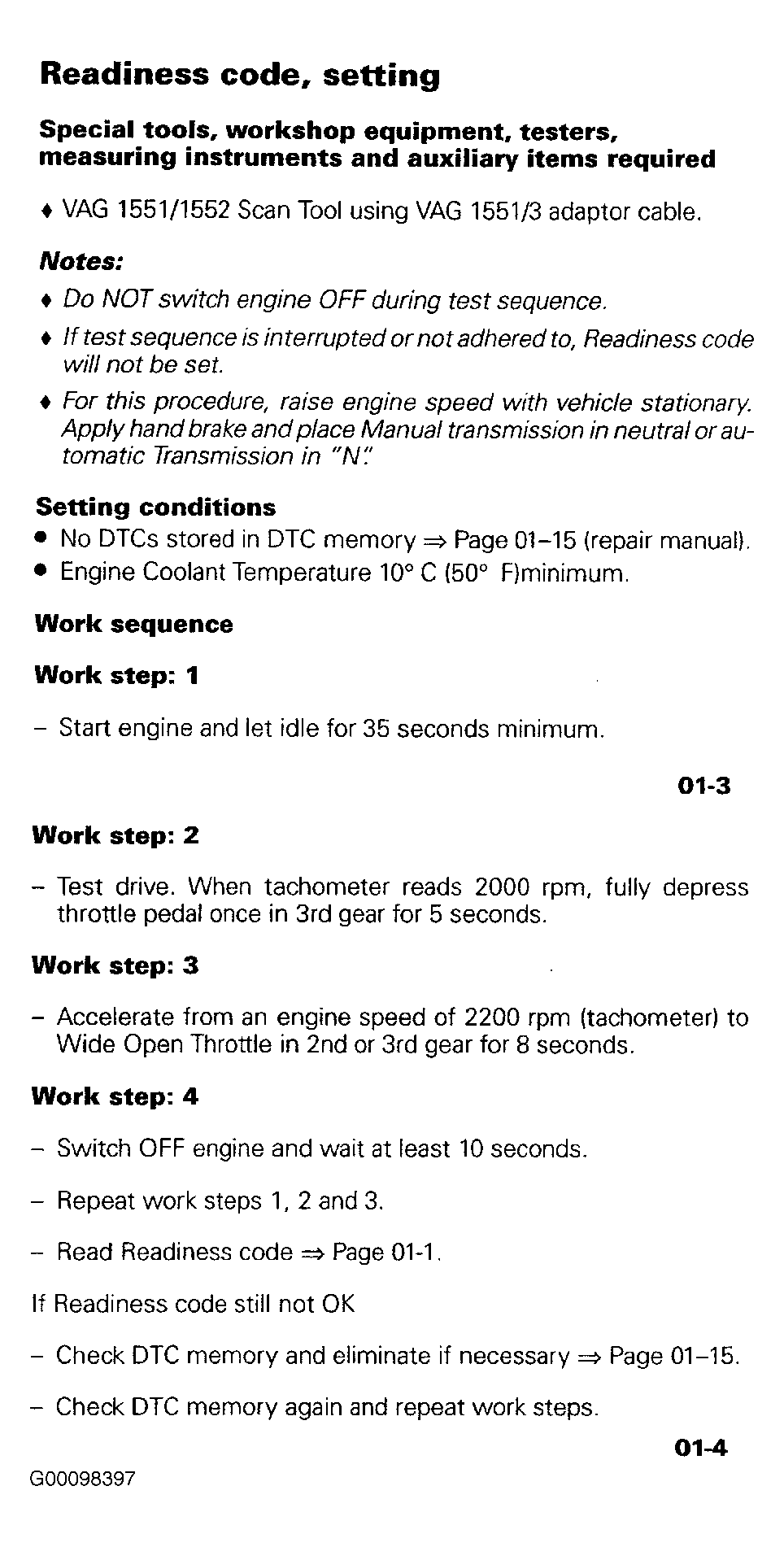

Fig 3: Page 3 of Bulletin

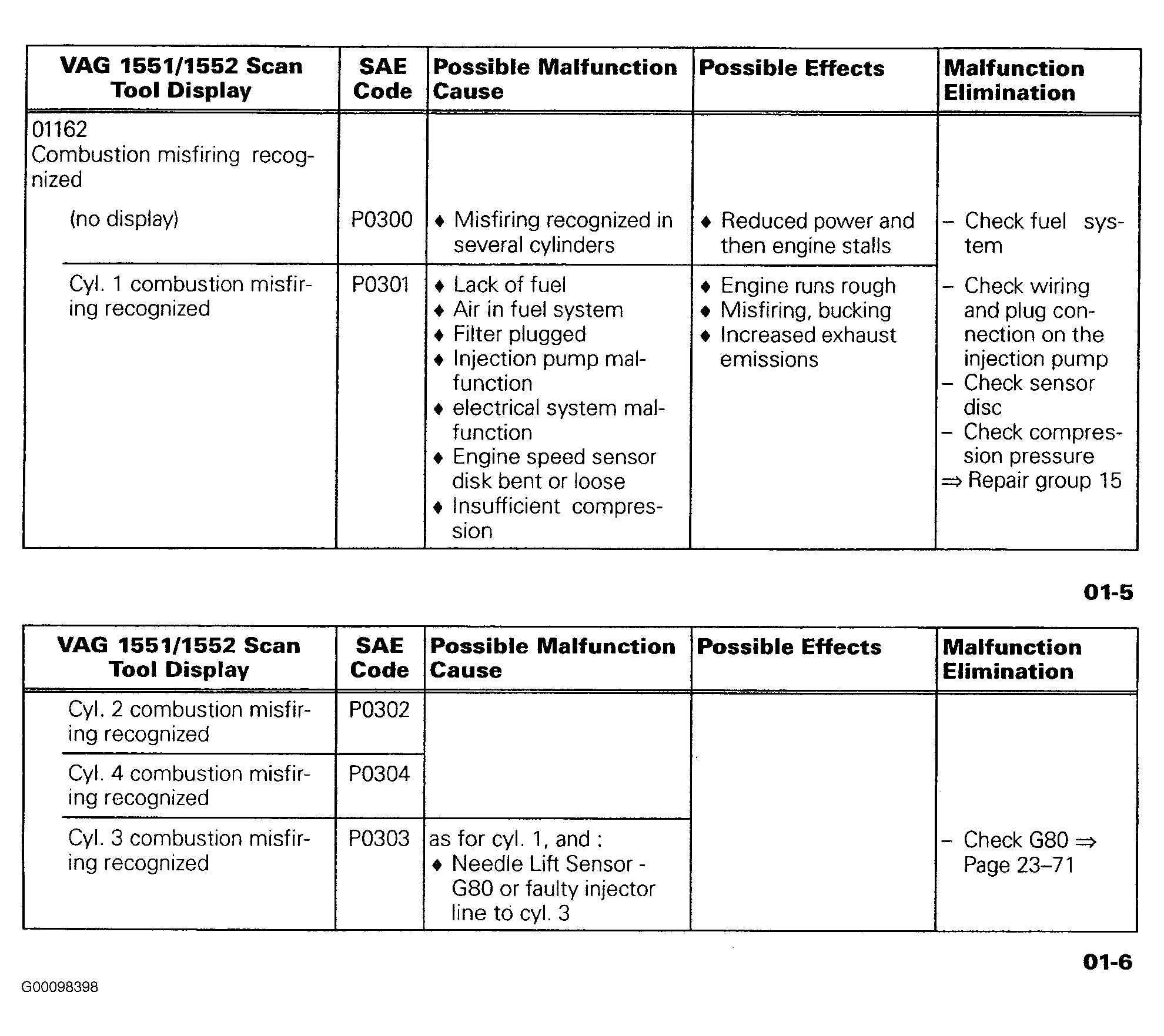

Fig 4: Page 4 of Bulletin
