Scan Tool VAS 5051, Connecting




Vehicle Diagnostic, Testing And Information System VAS 5051, Connecting

Special tools, workshop equipment, testers, measuring instruments and auxiliary items required


Vehicles from 01.96 to 08.98







- VAS 5051 Vehicle diagnostic, testing and information system
- VAS 5051/1 or VAS 5051/3 diagnostic cable
- VAS 5051/2 diagnostic adapter

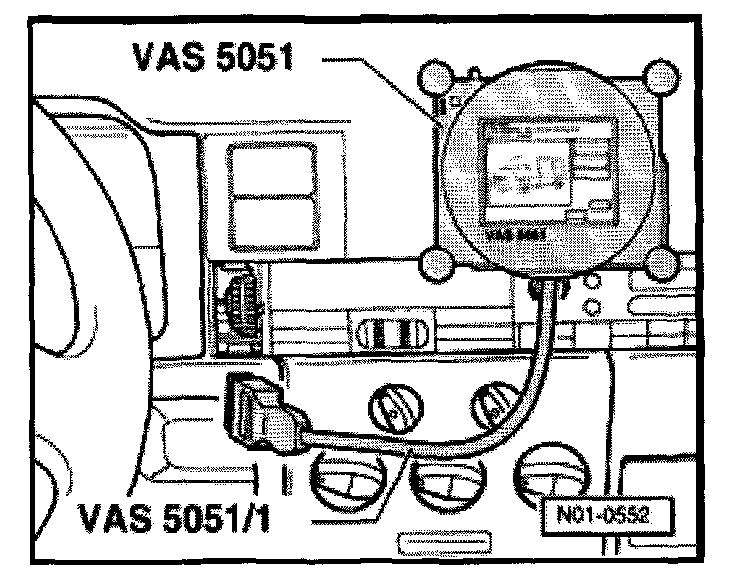

- Unclip cover for diagnostic connection to right of instrument cluster.







- With ignition switched off, connect tester VAS 5051 to diagnostic connection using diagnostic cable 5051/1 or 5051/3.
