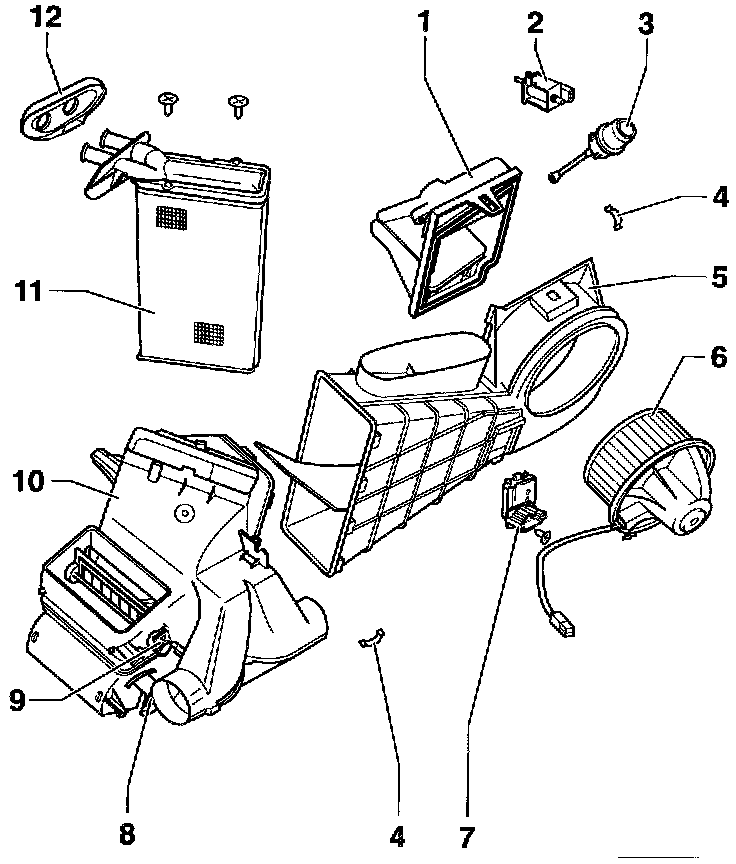

Heater Core Case

1- Air intake duct
2- Fresh air/recirculating flap two-way valve -N63-
3- Fresh air/recirculating flap vacuum unit
4- Clip
5- Air duct
6- Fresh air blower -V2-
7- Fresh air blower series resistance with fuse -N24-
8- Footwell flap lever
9- Defroster flap lever
10- Air distribution housing
11- Heater core
12- Gasket
