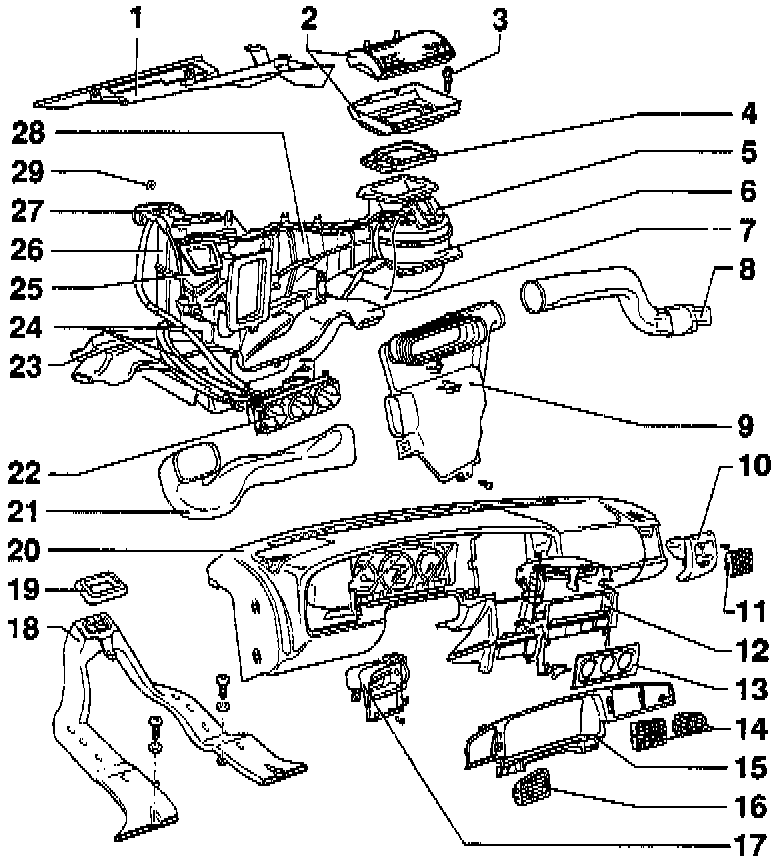

Without Air Conditioning

1- Plenum chamber cover
2- Dust and pollen filter
3- Hex screw with shank M6x22
4- Gasket
5- Series resistor for fresh air blower with thermal fuse -N24-
6- Fresh air blower -V2-
7- Footwell vent
8- Air duct right
9- Air distribution
10- Air vent, right
11- Grille for Right Vent
12- Center vent
13- Control panel trim
14- Grilles for Center Vent
15- Instrument panel trim
16- Grille for Left Vent
17- Air vent left
18- Rear duct
19- Rear duct seal
20- Instrument panel
21- Air duct left
22- Fresh air and heated air controls
23- Pedal cluster cover
24- Cables
25- Intermediate duct
26- Air distribution housing
27- Heat exchanger
28- Air duct with main shut- off flap
29- Hex nut M6
