Lift Points For Floor Jack & Hoists

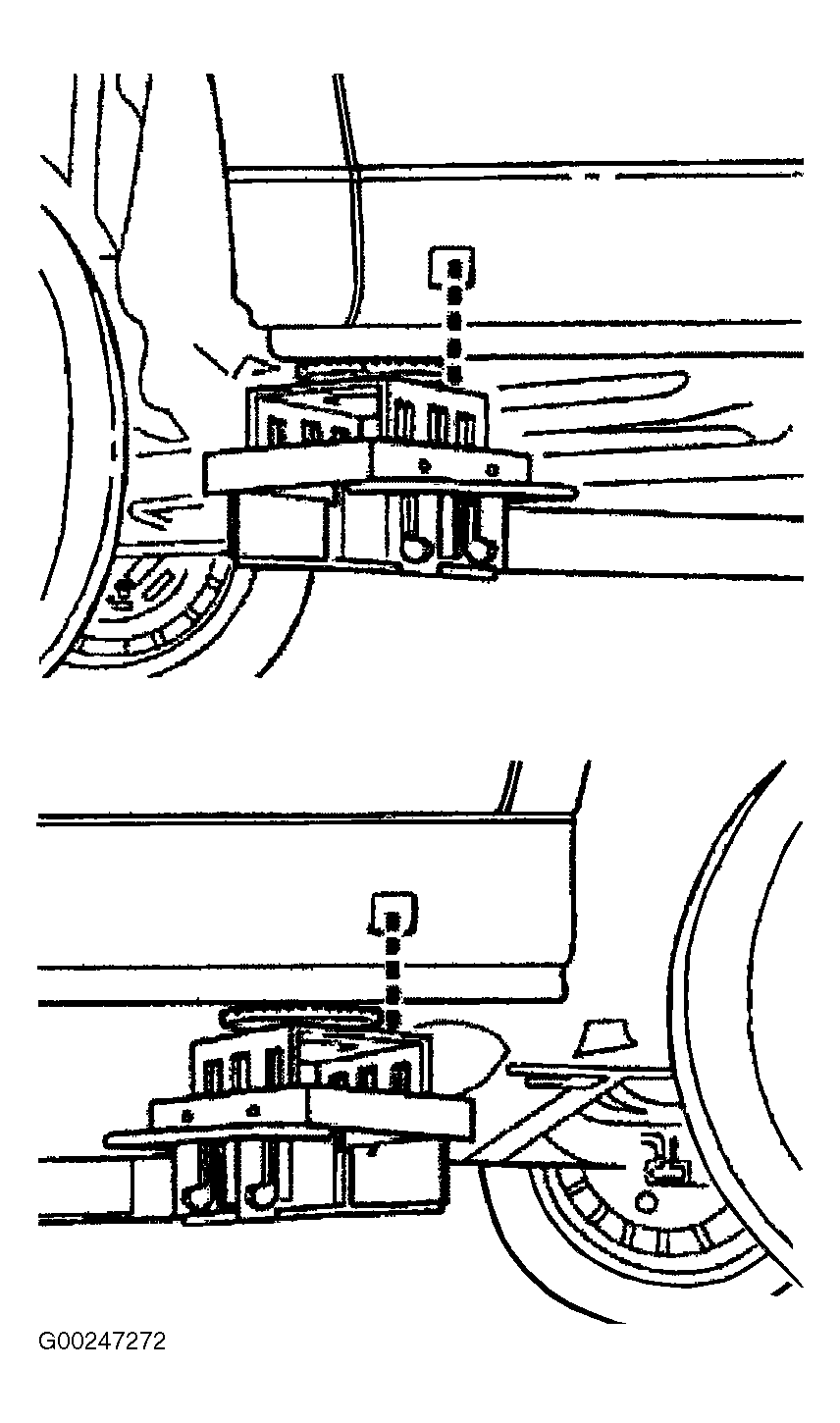

On front of vehicle, lift at reinforcing plate welded to floor panel. See Fig 1 . Position support so rear edge aligns with center of sill depression.
CAUTION:
DO NOT lift vehicle on vertical sill reinforcement or damage to vehicle could result.
On rear of vehicle, lift at reinforcing plate welded to floor panel. See Fig 1 .Position support so that rear edge aligns with center of sill depression.
