EVAP System

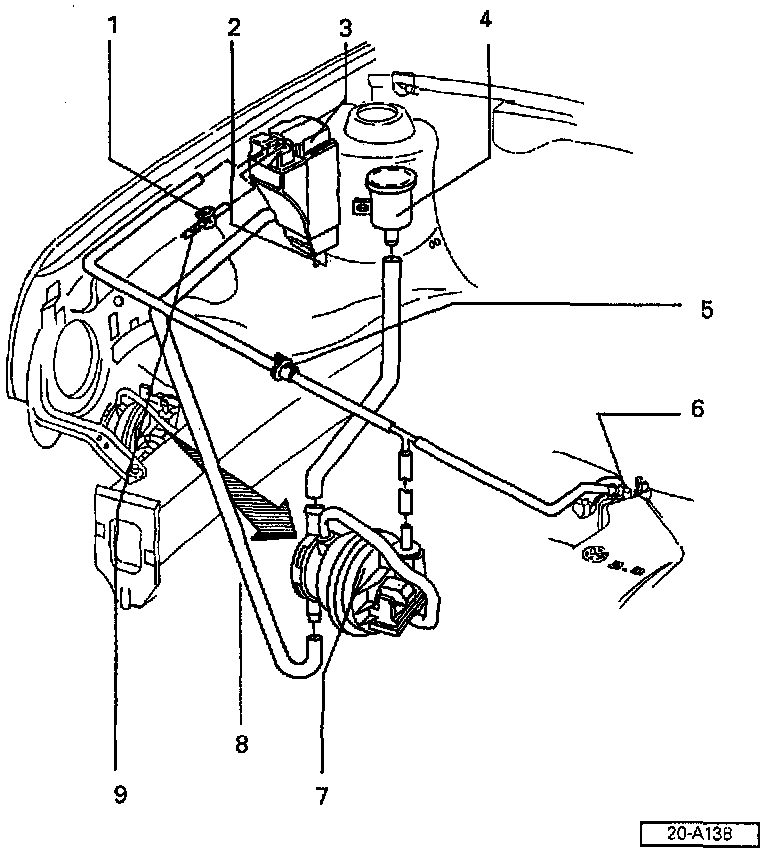

Evaporative Emissions System, Component Layout

Evaporative Emission Components:

1 Pressure control valve (flow from fuel tank).
2 Condensate drain valve/ breather hose (drain valve not shown).
3 Evaporative Emissions (EVAP) canister
4 Air filter for LDP pump V144 (item 7.)
5 Evaporative Emissions (EVAP) canister purge regulator valve N8O.
6 Throttle body connection (manifold vacuum.
7 Leak Detection Pump V144
8 Pressure line from LDP pump to canister.
9 Fuel tank connection (to item 1).
