ATF Level, Checking and Topping Up

ATF level, checking and topping up

Special tools and equipment

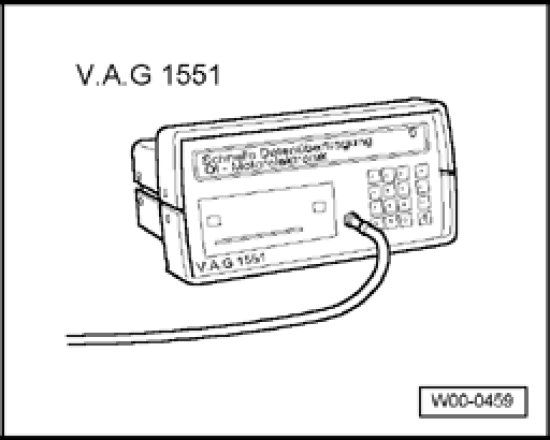

- VAG 1551 Scan Tool




- VAG 1551/3B Cable

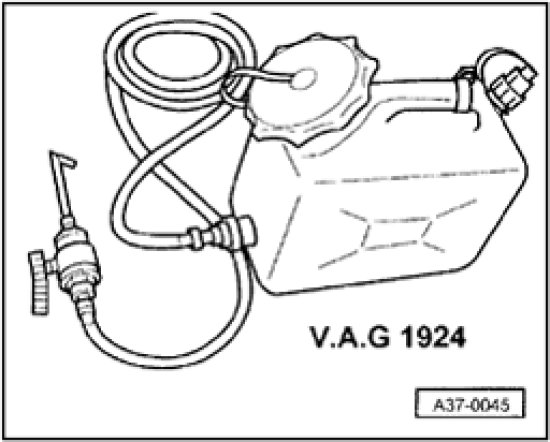

- VAG 1924 Reservoir

VW ATF is obtainable as a spare part.
Container size 0.5 L (0.53 qt) - Part No. G 052 162 A1
Container size 1.0 L (1.0567 qt) - Part No. G 052 162 A2

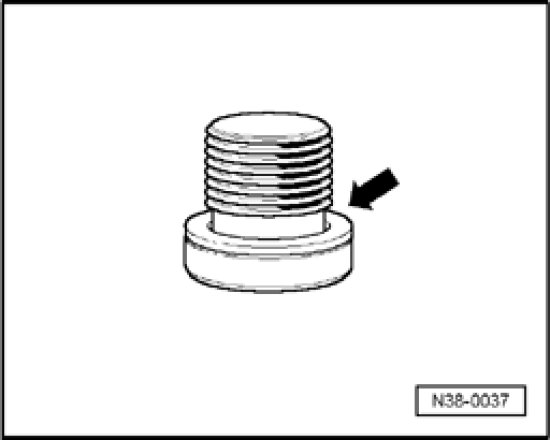

- Always replace seal -arrow- when checking ATF level.

Additional information refer to Automatic Transmission 01M
