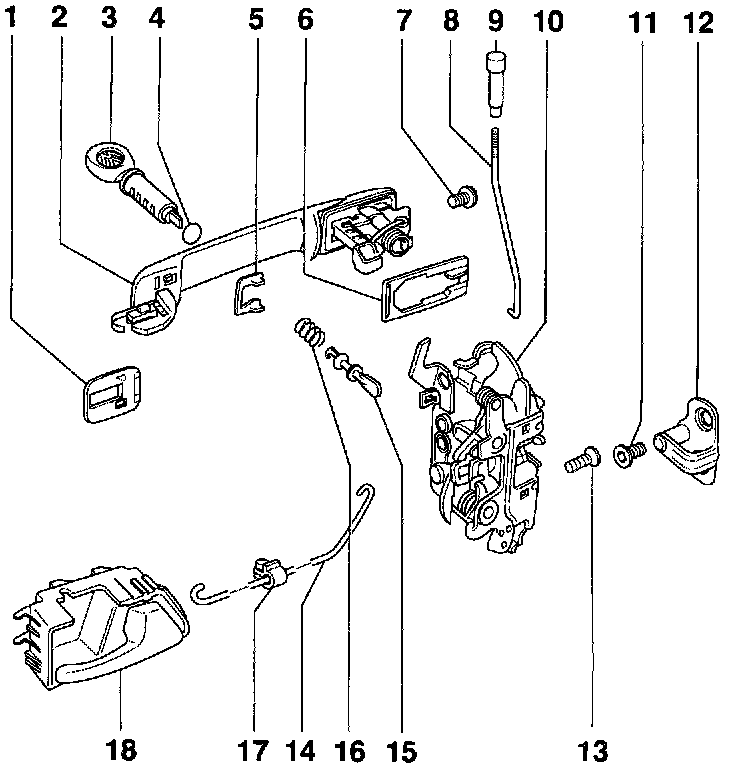

Front Door Latch

1- Backing piece
2- Door handle
3- Lock cylinder
4- Seal
5- Clip
6- Backing piece
7- Socket-head screw with collar
8- Locking rod
9- Locking knob
11- Countersunk screw
12- Striker pin
13- Socket-head screw with collar
14- Pull rod
15- Connecting rod
- Attached in. lock cylinder housing
16- Spring
17- Clip
18- Inside door handle
