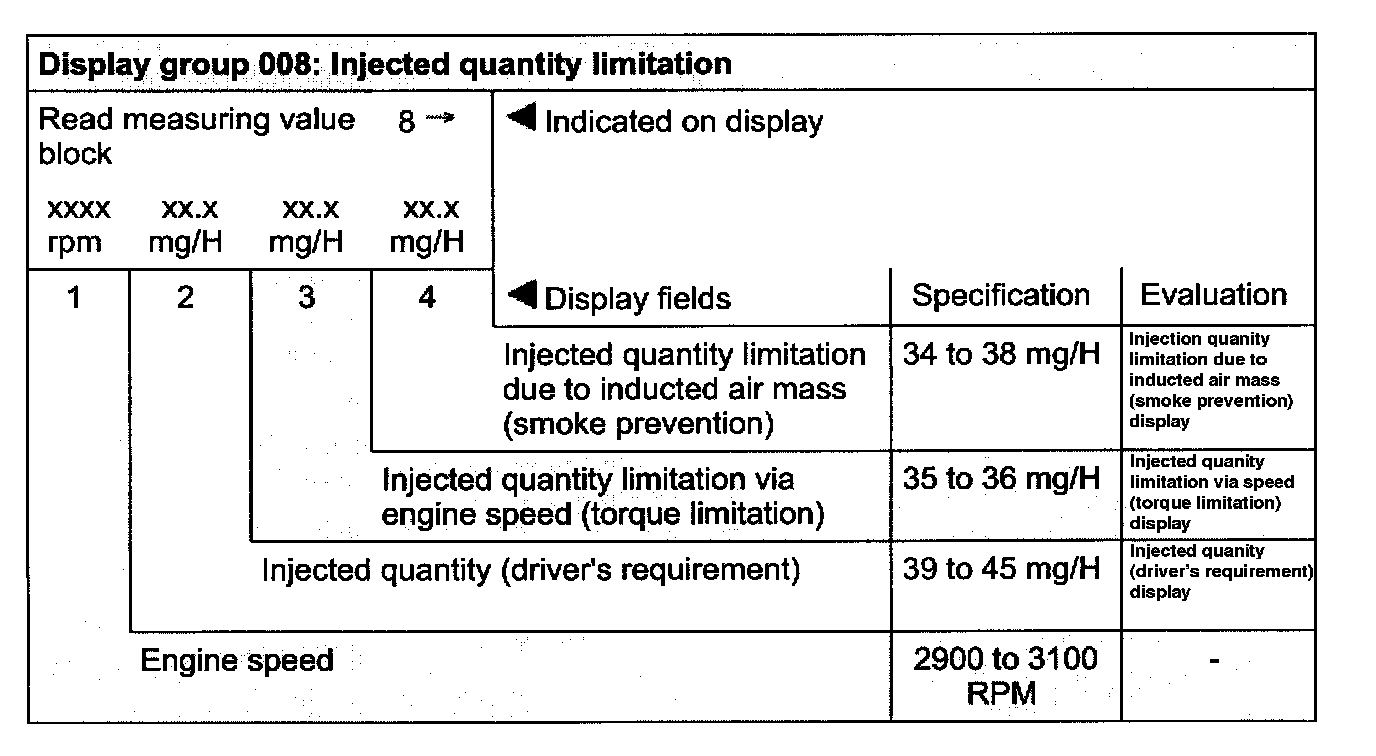

Measuring Value Block 8

NOTES:
- Test drive vehicle in 3rd gear (engine coolant temperature at least 80°C or 176°F)
- When testing, accelerate vehicle at Wide Open Throttle.
- Measuring values must be printed out or read (2nd person required) when engine speed reaches 3000 RPM.
