Air Injection

NOTE:
- This system is monitored by the On Board Diagnostic (OBD) system.

- Components marked with ** are checked via Output Diagnostic Test Mode.

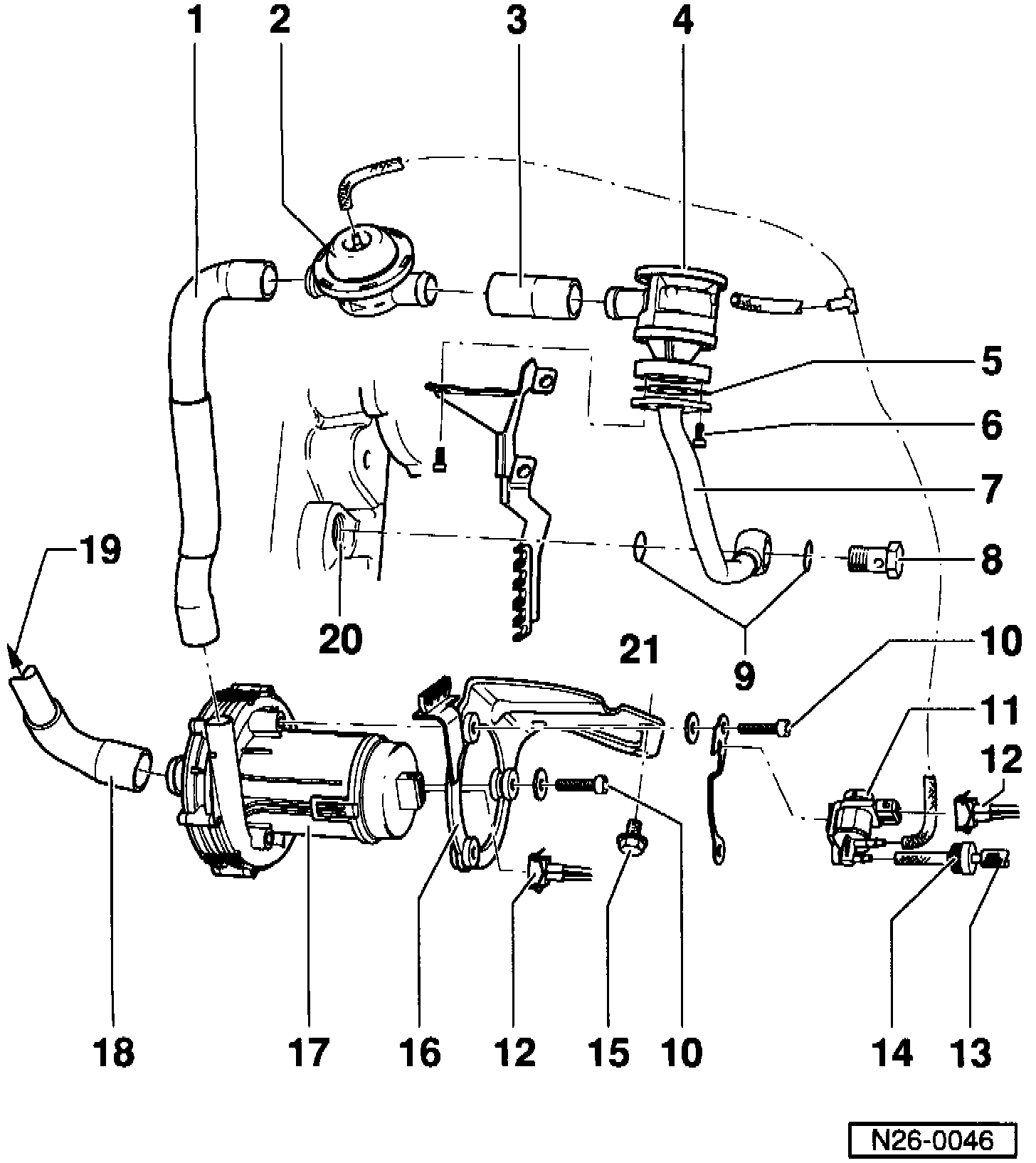

1 - Pressure hose
^ Ensure that it is securely seated

2 - Check-valve
3 - Connecting hose
^ Ensure that it is securely seated

4 - Combi-valve
5 - Gasket
^ Replace

6 - 9 Nm (80 in lb)
7 - Connecting pipe
8 - 30 Nm (22 ft lb)
9 - Sealing washer
^ replace

10 - 10 Nm (7 ft lb)
11 - Secondary Air Injection solenoid valve N112 **
12 - Harness connector
^ 2-pin

13 - Vacuum hose
^ To brake booster check-valve connection

14 - Check-valve
15 - 40 Nm (30 ft lb)
16 - Bracket
^ for Secondary Air Injection pump (item 17) and Secondary Air Injection solenoid valve (item 11)

17 - Secondary Air Injection pump **
^ with motor V101

18 - Intake hose
^ for Secondary Air Injection pump

19 - To Air Cleaner
^ to air hose connection

20 - Air passage
^ in cylinder head

21 - Bracket
^ for combi-valve
