Checking Transmission Oil
To check transmission oil, see
Fig 1
and
Fig 2
.

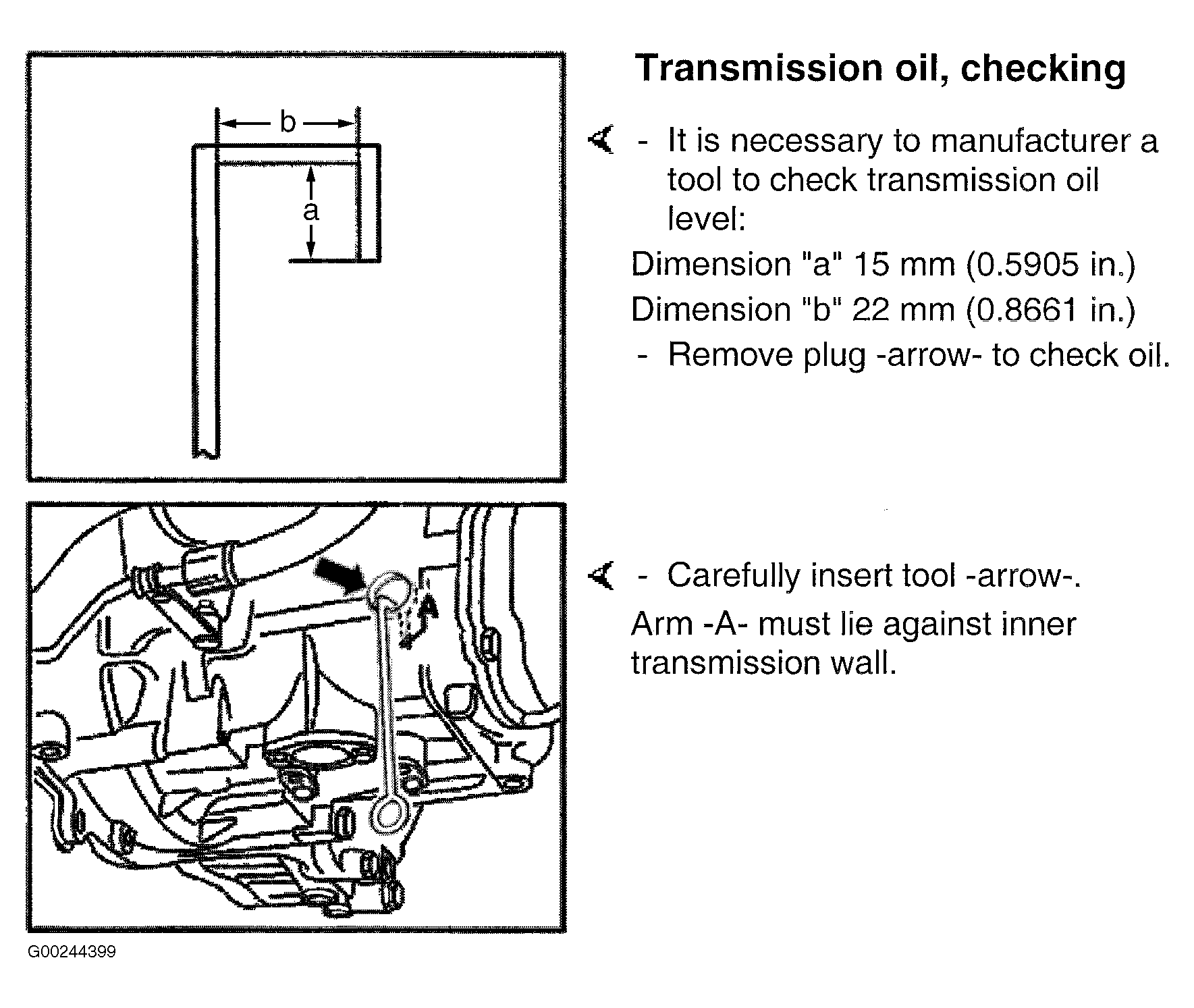

Fig 1: Checking Transmission Oil (1 of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

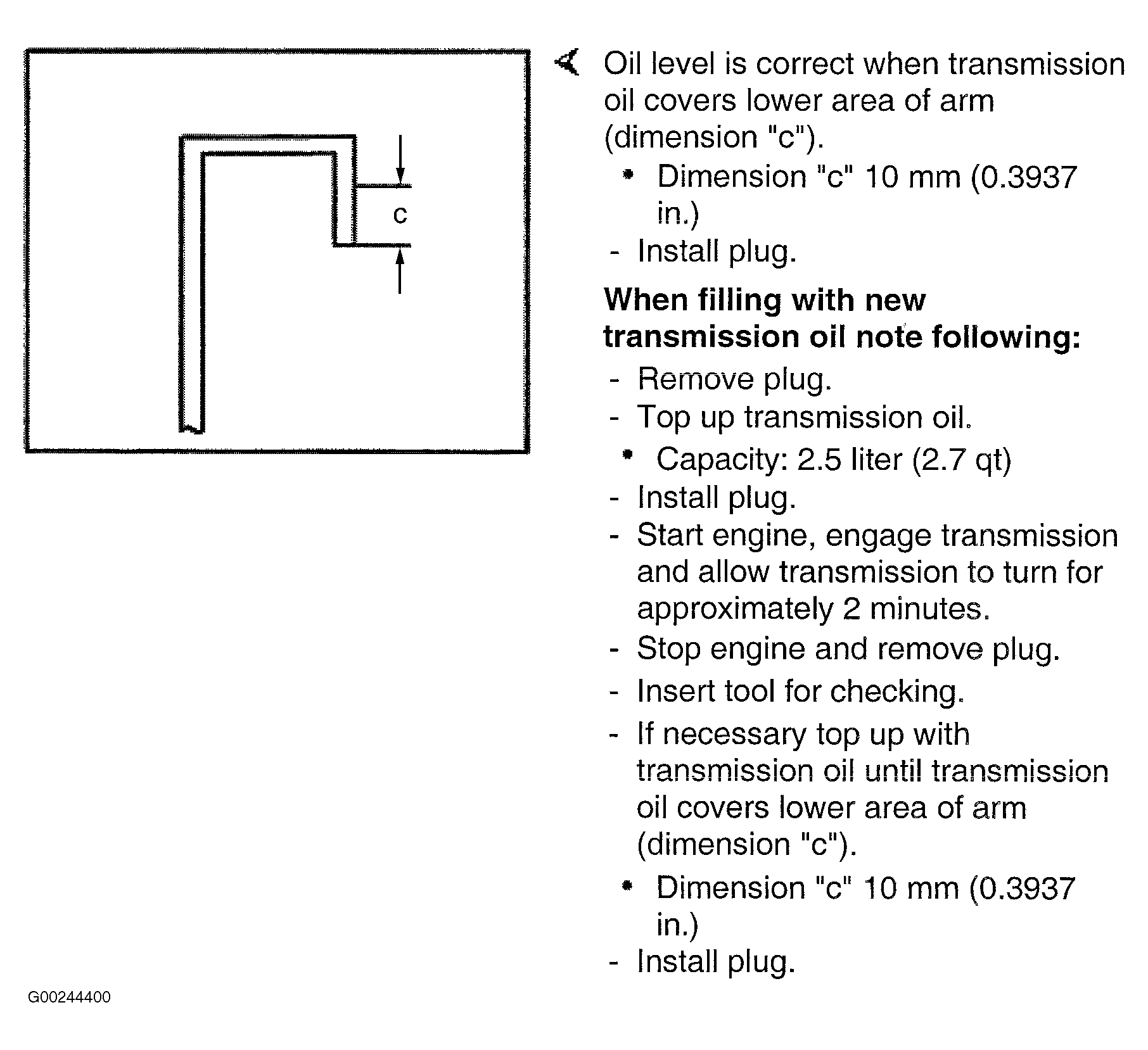

Fig 2: Checking Transmission Oil (2 of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
