Transmission Specifications and Clearances

Automatic Transmission 096

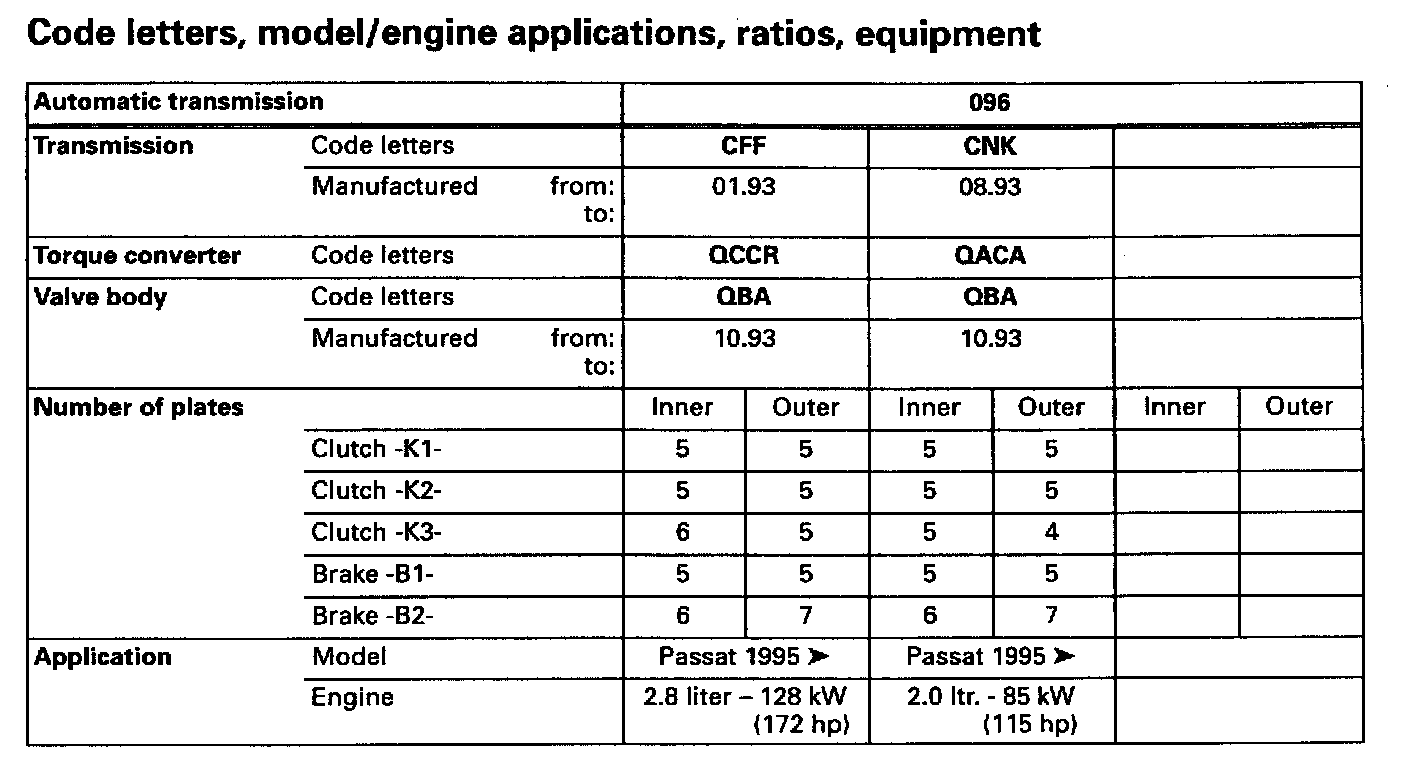

Transmission ID:

Continued:

Capacities Specifications:

Shift Point Specifications:

Stall Speed Specifications:

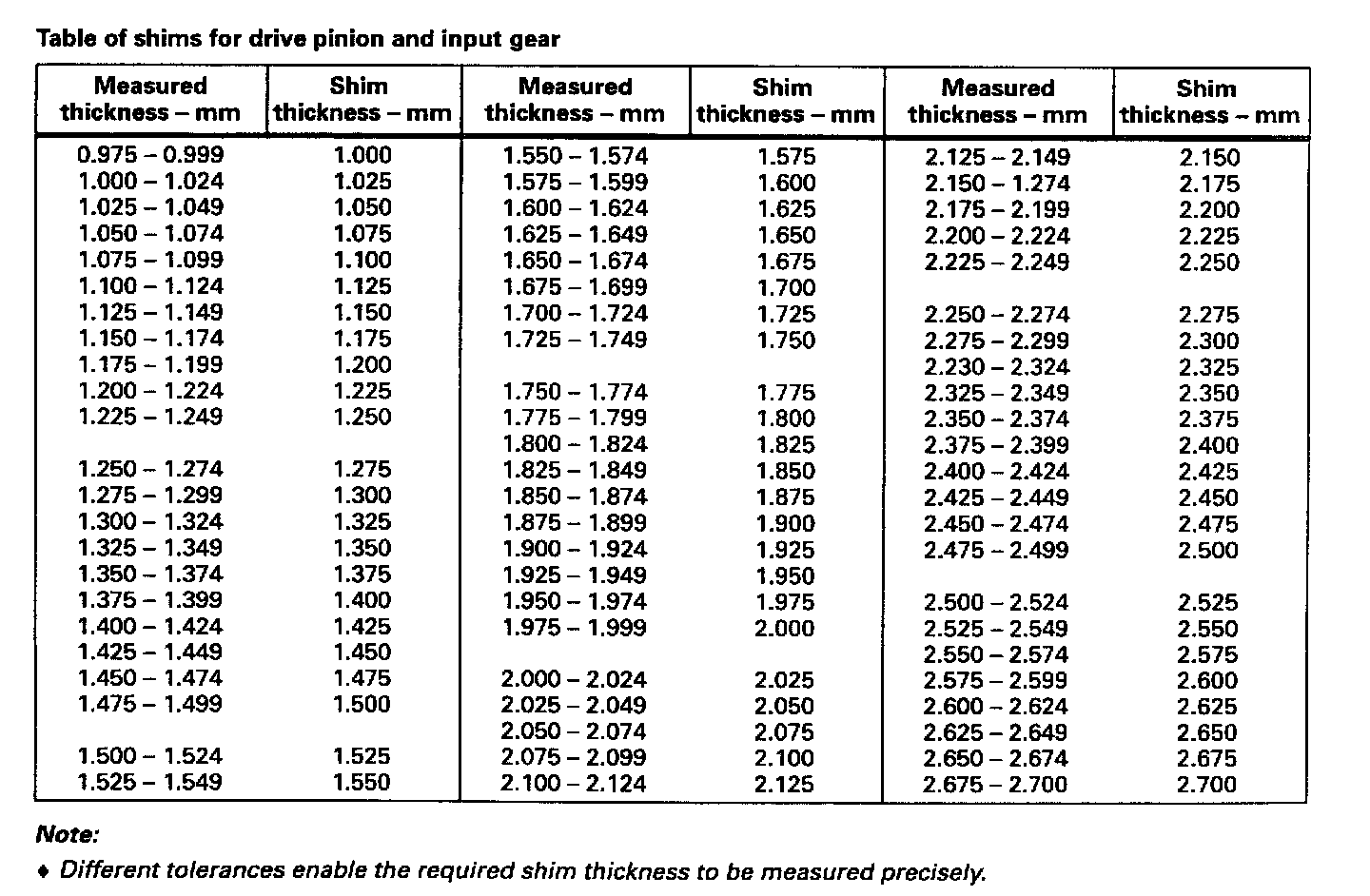

Drive Pinion And Output Gear Shim Table Specifications:

Automatic Transmission 01M

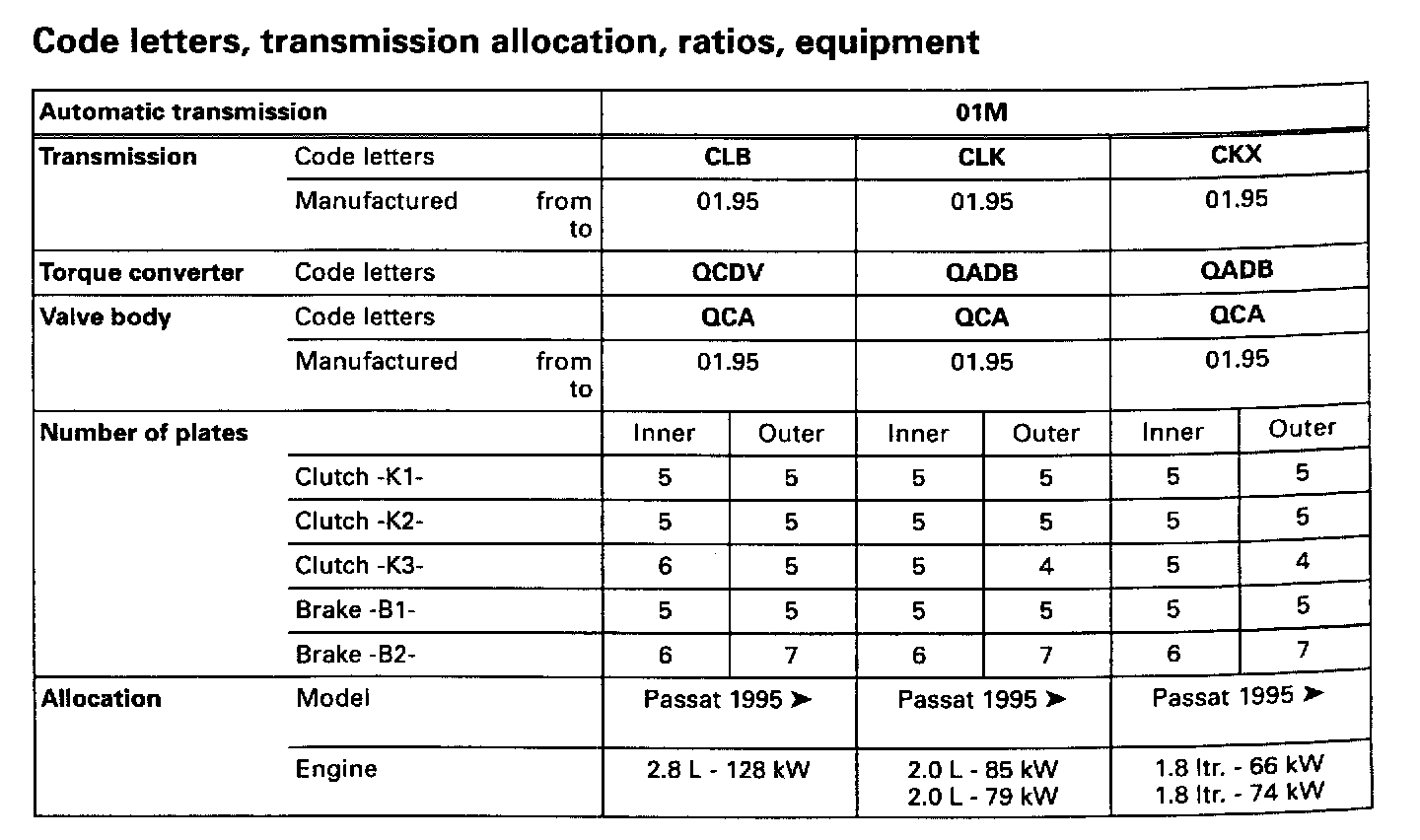

Transmission Code Letters:

Continued:

Capacities:

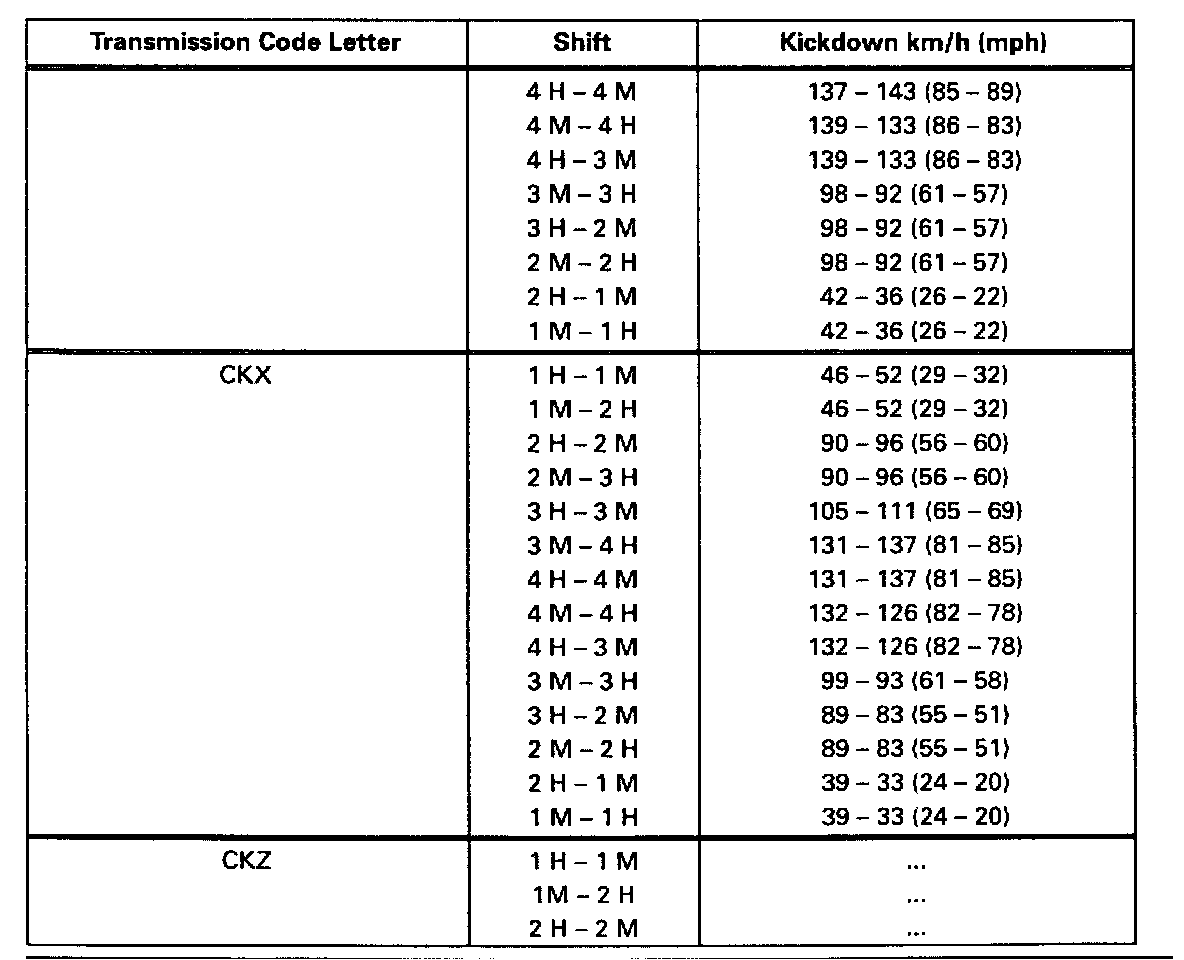

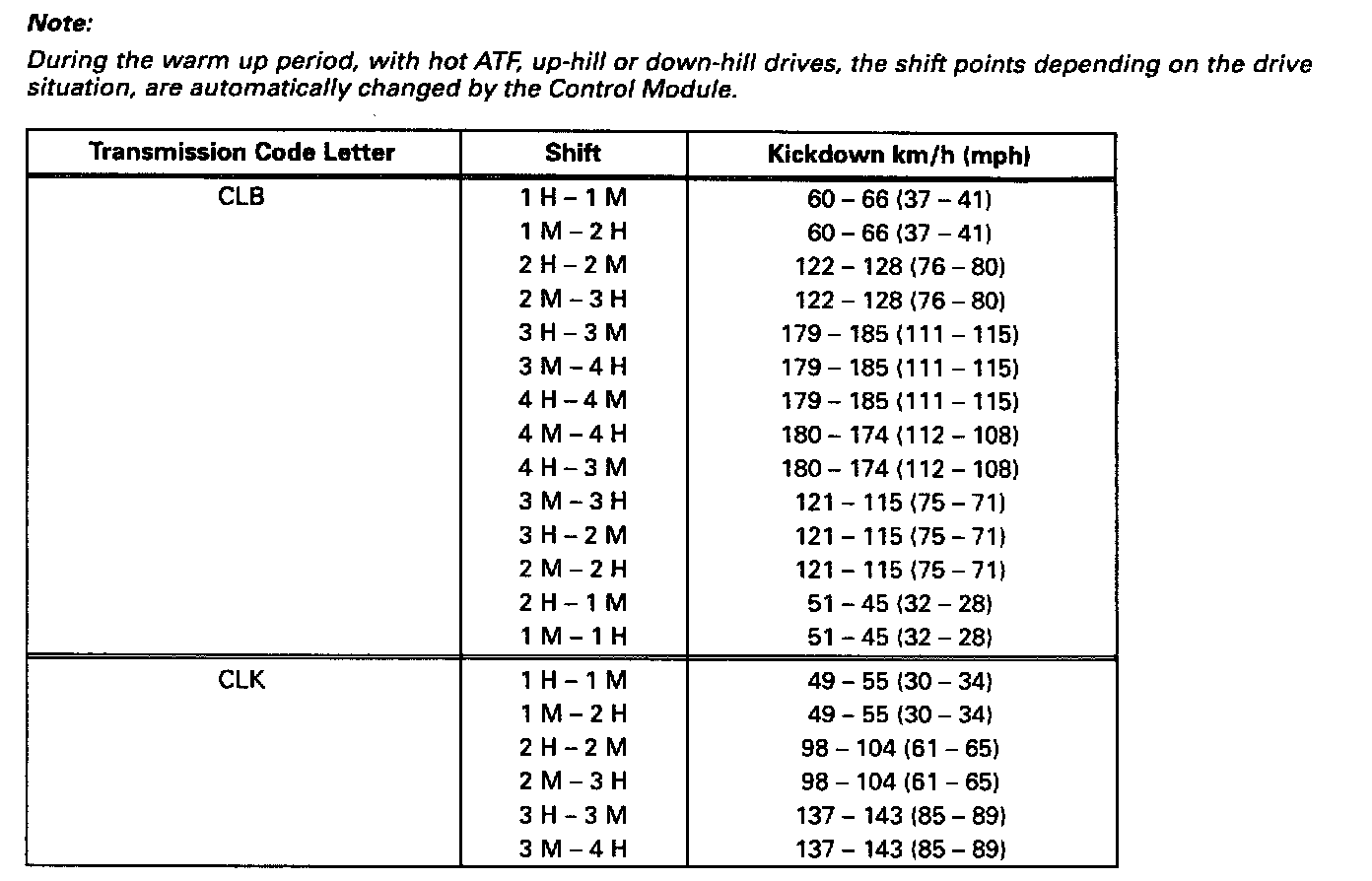

Shift Point Specifications:

Continued:

Continued:

Shift points in km/h (mph)
