Reading Measuring Value Block (Function 04)

READING MEASURING VALUE BLOCK (FUNCTION 04)

NOTE: To change to another display group within function 04, proceed as follows:





Test conditions
- Control unit in "Basic Setting" function 04
- Vehicle stationary, engine idling
- Engine oil temperature min. 80 °C (176 °F)
- Electrical consumers switched off (radiator coolant fan must not run during the check)
- Air conditioner switched off

Display group overview

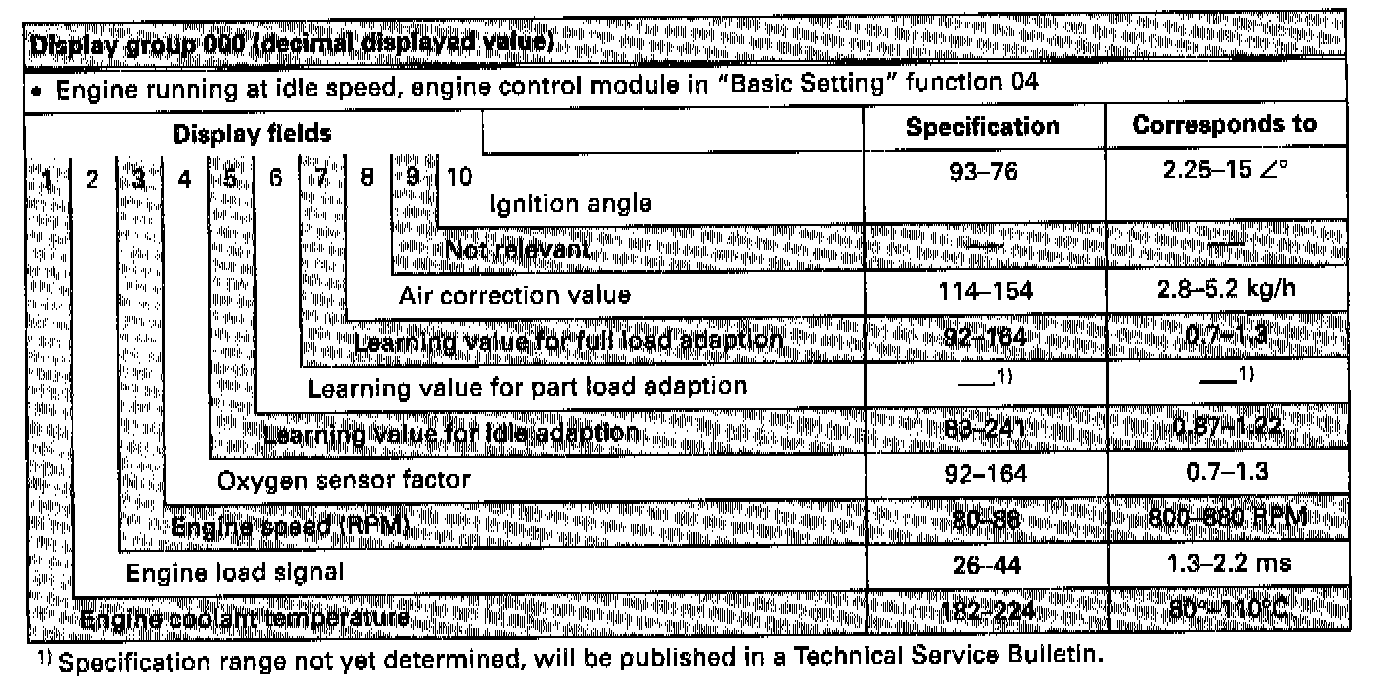

Display Group 000:

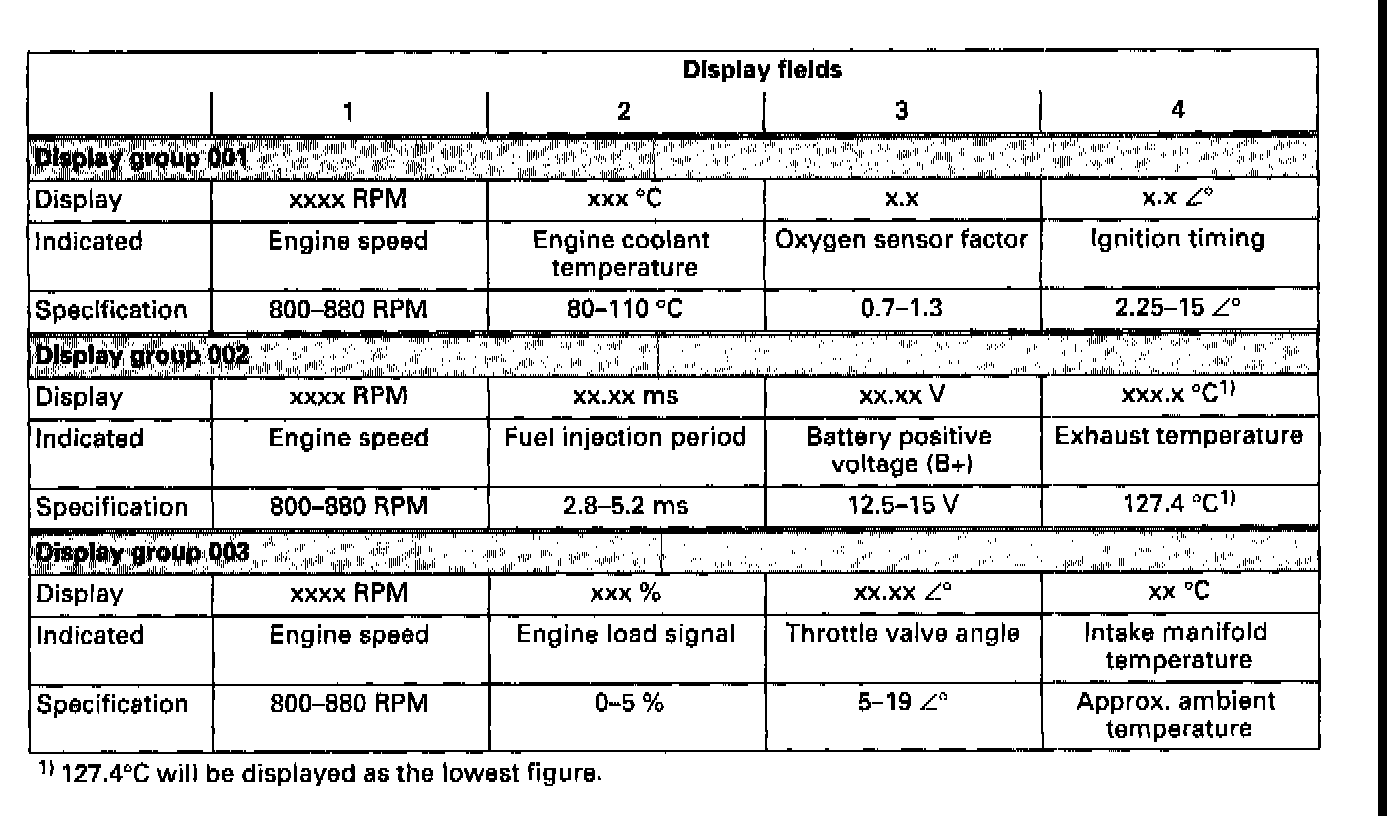

Display Group 001 - 003:

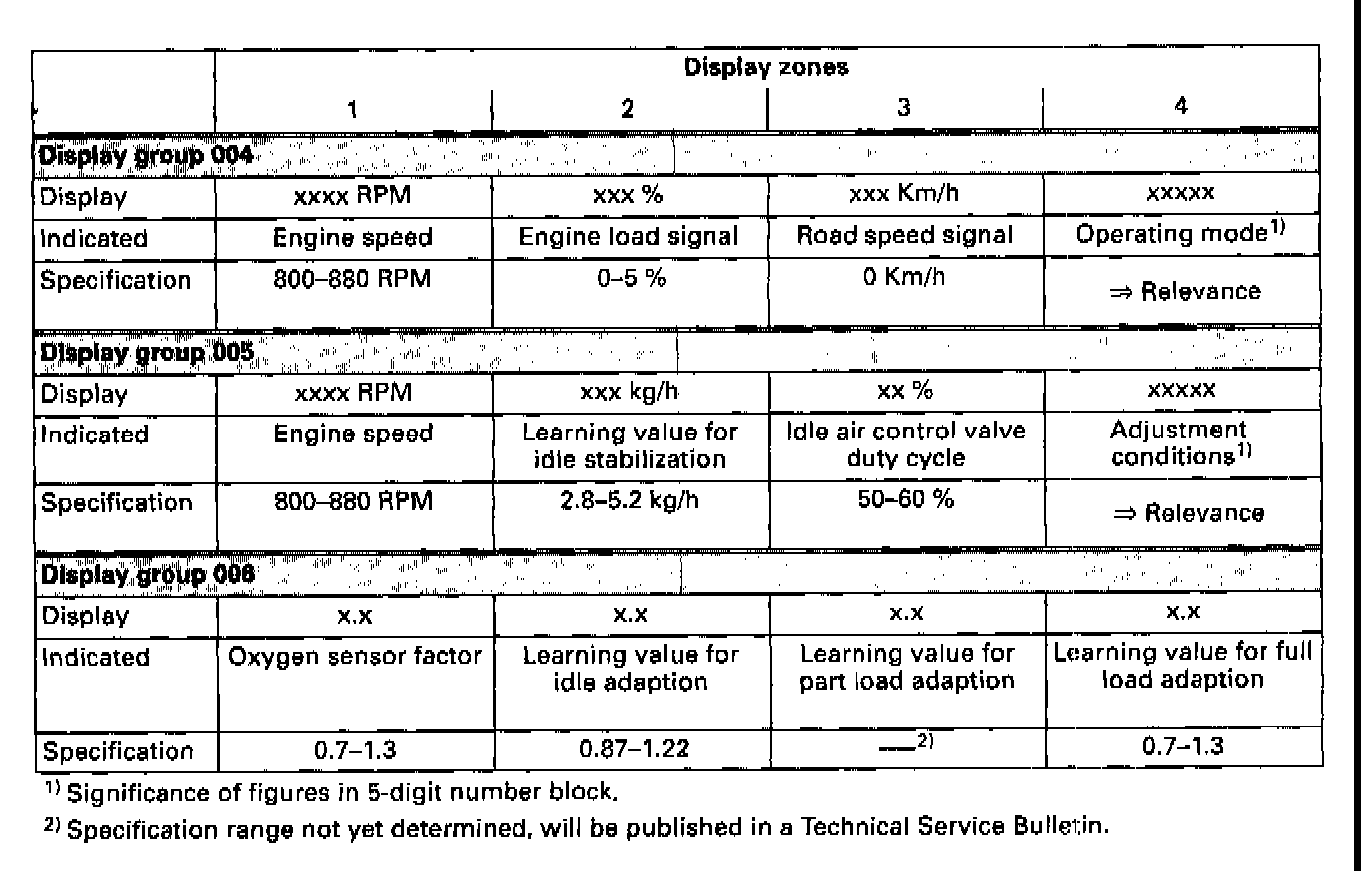

Display Group 004 - 006:

Relevance of figures in 5-digit number block





- Press -> button to end "Read Measuring Value Block" function 04.
- After ending function 04, select "End Output" function 06 and press -Q- button to confirm.
